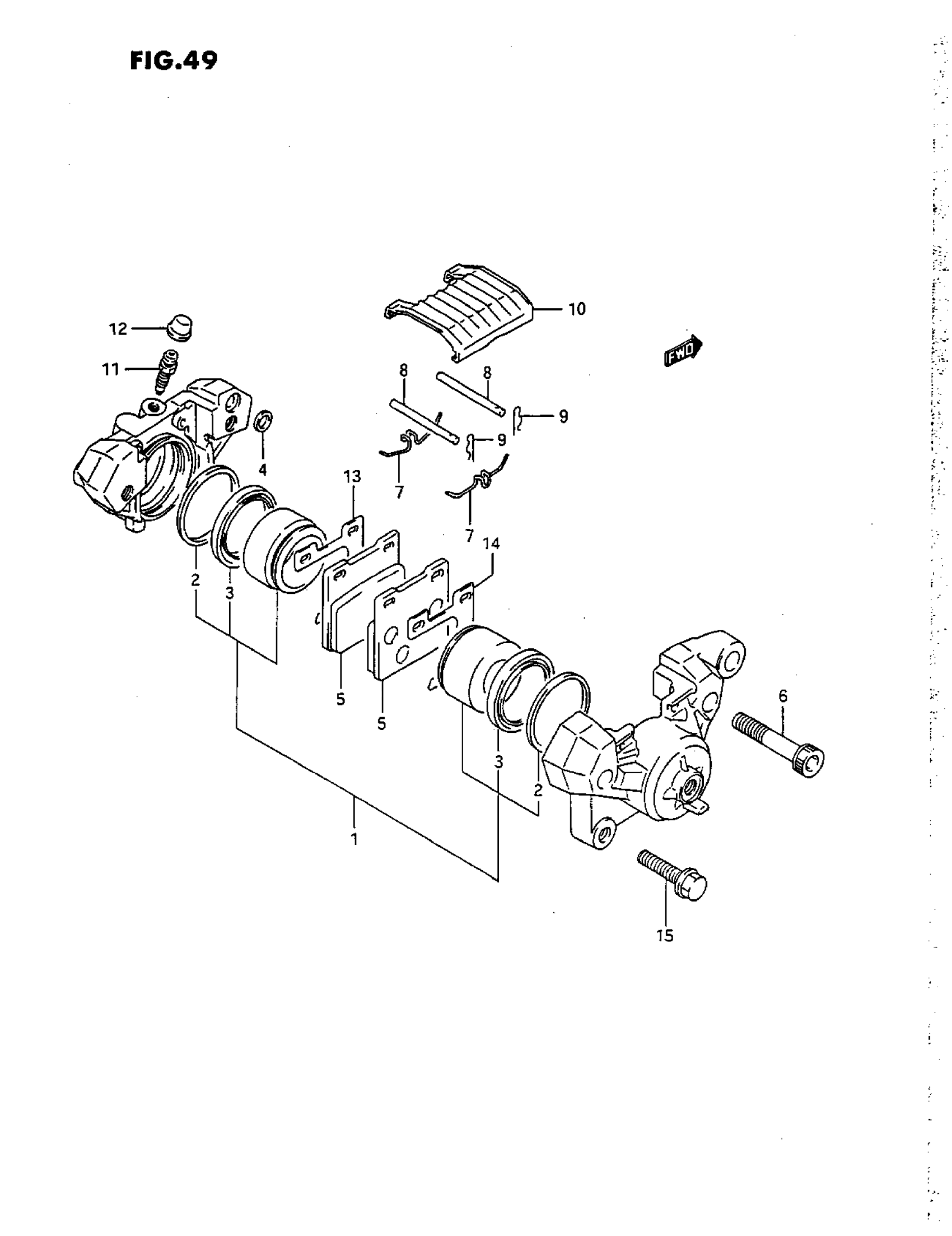

Suzuki GS500E (1993) REAR CALIPER (K/L/M/N) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | MODEL K -69100-01D01 This part replaces 69100-01D00.

69100-01D04-999

$292.98

1

CALIPER ASSY, REAR | MODEL L/M/N -69100-OID02 This part replaces 69100-01D01.

69100-01D04-999

$292.98

1

CALIPER ASSY, REAR | MODEL N This part replaces 69100-01D02.

69100-01D04-999

$292.98

1

PISTON SET | MODEL K/L/M/N This part replaces 69100-27820.

69100-27821

$77.35

1

PISTON SET | MODEL N FOR 69100-01D02

69100-17830

Unavailable

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT

59108-16700

$9.40

4

SEAL

69107-34200

$10.71

5

PAD SET This part replaces 69130-20A10.

69100-20810

$49.55

6

BOLT | MODEL K This part replaces 69145-16700.

59145-05C50

$7.97

6

BOLT (HEXAGON FLANGE) | MODEL L/M/N

59145-17C00

Unavailable

7

SPRING

59143-16700

$5.80

8

PIN

69141-45000

$5.17

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-16701

$13.36

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM, INNER

59371-20C00

$16.25

14

SHIM, OUTER

59381-20C00

$16.25

15

BOLT This part replaces 01517-08304.

01550-0830A

$3.04
