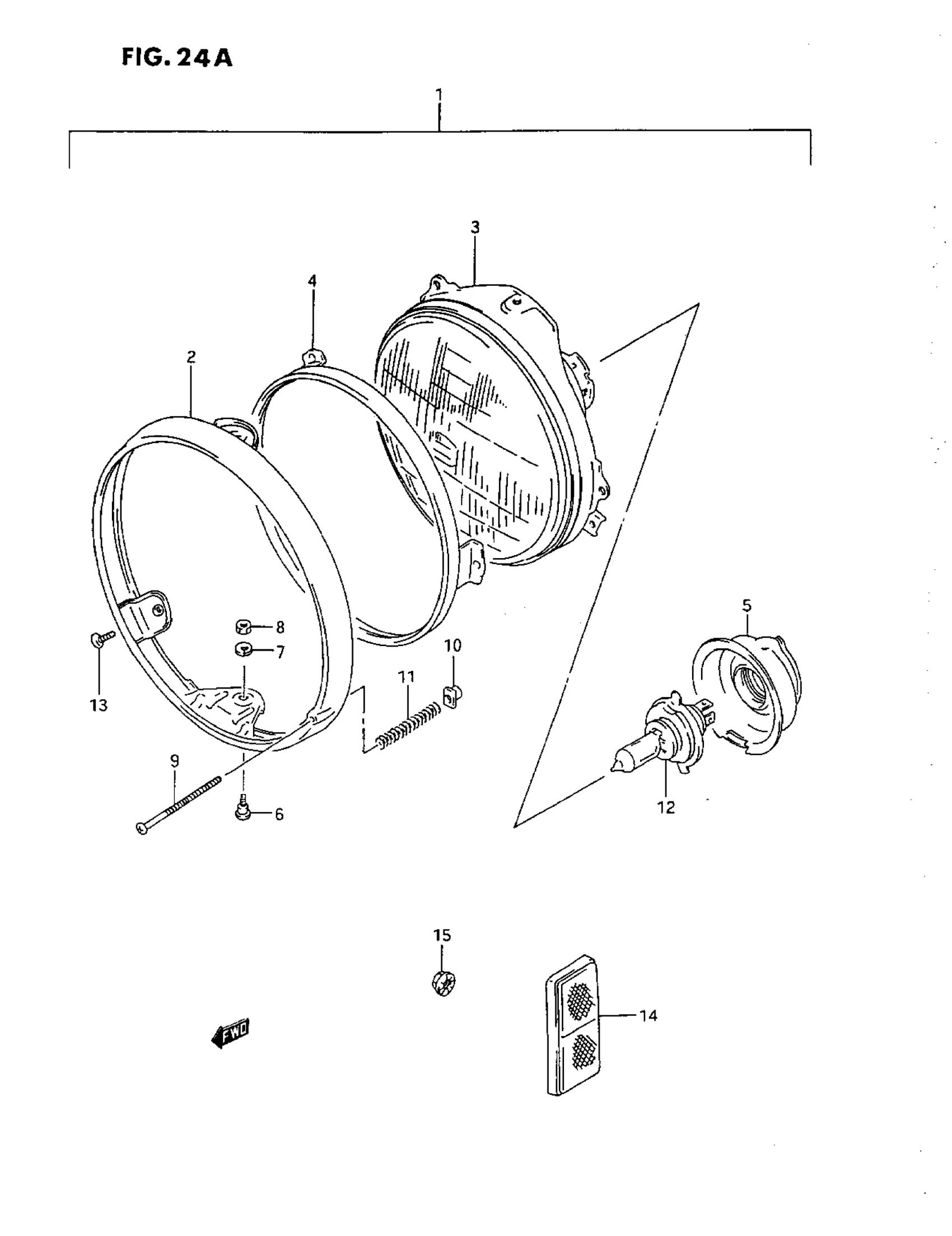

Suzuki GS500E (1993) HEADLAMP (R) Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-10D30-999.

35100-10D70-999

$271.07

2

RIM

35111-01D20

$72.93

3

LAMP UNIT

35121-10D30

Unavailable

4

RING

35127-45030

Unavailable

5

COVER, SOCKET

35173-20A01

$18.02

6

SCREW

35181-15611

$3.37

7

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.84

8

NUT This part replaces 08310-00053.

08310-0005A

$1.84

9

SCREW This part replaces 35151-45030.

35151-45900

$3.65

10

NUT

35152-15611

$3.25

11

SPRING

35154-31900

$5.32

12

BULB (12V, 60/55W, H4)

09471-12060

$25.15

13

SCREW

02122-05127

$1.93

14

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

15

NUT This part replaces 08316-26055.

08316-2005A

$2.19
