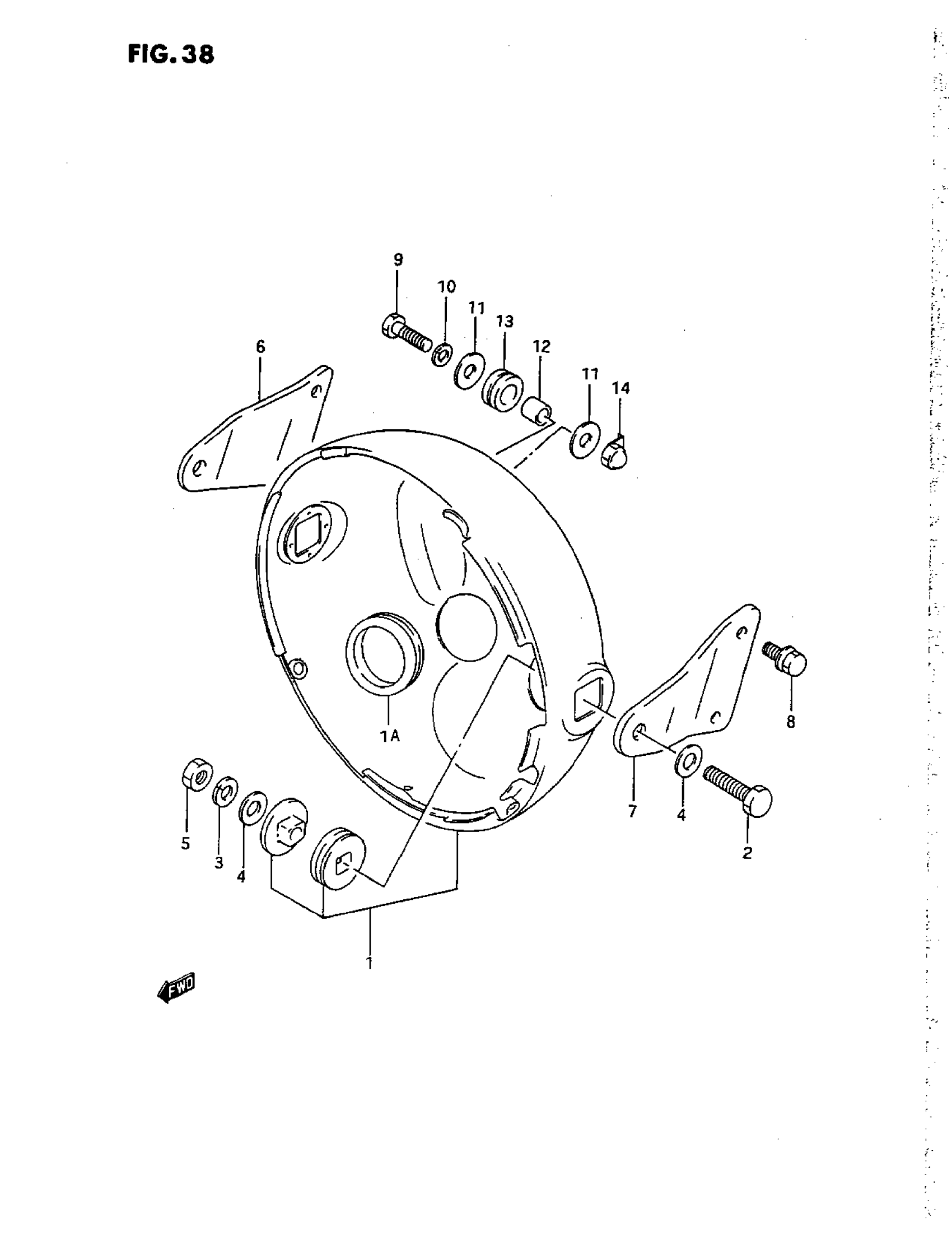

Suzuki GS500E (1993) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP | MODEL K

51810-01D01

Unavailable

1

HOUSING, HEADLAMP | MODEL L

51810-01D11

Unavailable

1

HOUSING, HEADLAMP | MODEL M This part replaces 51810-01D30.

51810-01D31

Unavailable

1

HOUSING, HEADLAMP | MODEL N/P/R

51810-01D31

Unavailable

1

GROMMET This part replaces 51817-01D00.

51817-01D01

Unavailable

2

BOLT | MODEL K/L/M/N/P

01204-08307

$1.99

2

BOLT | MODEL R

01550-08307

$3.54

3

.LOCK WASHER | MODEL K/L/M/N/P This part replaces 08321-21088.

08321-01087

$2.13

4

WASHER | MODEL K/L/M/N/P This part replaces 08322-11088.

08322-01087

$2.13

5

NUT | MODEL K/L/M/N/P This part replaces 08310-12088.

08310-00087

$2.13

5

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.66

6

STAY,HDLAMP HOU | MODEL K/L This part replaces 51851-01D00.

51011-0BE00

$31.50

6

STAY,HDLAMP HOU | MODEL M This part replaces 51851-01D10.

51011-0BE00

$31.50

6

STAY,HDLAMP HOU | MODEL N/P/R This part replaces 51851-01D11.

51011-0BE00

$31.50

7

STAY,HDLAMP HOU | MODEL K/L This part replaces 51861-01D00.

51011-0BE00

$31.50

7

STAY,HDLAMP HOU | MODEL M This part replaces 51861-01D10.

51011-0BE00

$31.50

7

STAY,HDLAMP HOU | MODEL N/P/R This part replaces 51861-01D11.

51011-0BE00

$31.50

8

BOLT | MODEL K/L/M/N/P

01214-06127

Unavailable

8

BOLT | MODEL R

01550-06127

$2.30

9

BOLT | MODEL K/L This part replaces 01107-06257.

01500-06257

$1.97

9

BOLT | MODEL M/N/P This part replaces 01134-06258.

01570-06257

$3.03

9

BOLT, TRIP METER (6X25) | MODEL R This part replaces 09118-06007.

09118-06086

$3.15

10

LOCK WASHER | MODEL K/L This part replaces 08321-21067.

08321-01067

$2.13

11

WASHER (6.5X20X1.6) | MODEL K/L This part replaces 09160-06020.

09160-06066

$1.89

11

WASHER | MODEL M/N/P This part replaces 09160-06006.

09160-06084

$1.78

12

SPACER

09180-07004

$2.30

13

CUSHION

09320-10015

$2.54

14

PLATE, HEADLAMP

51815-06C00

Unavailable
