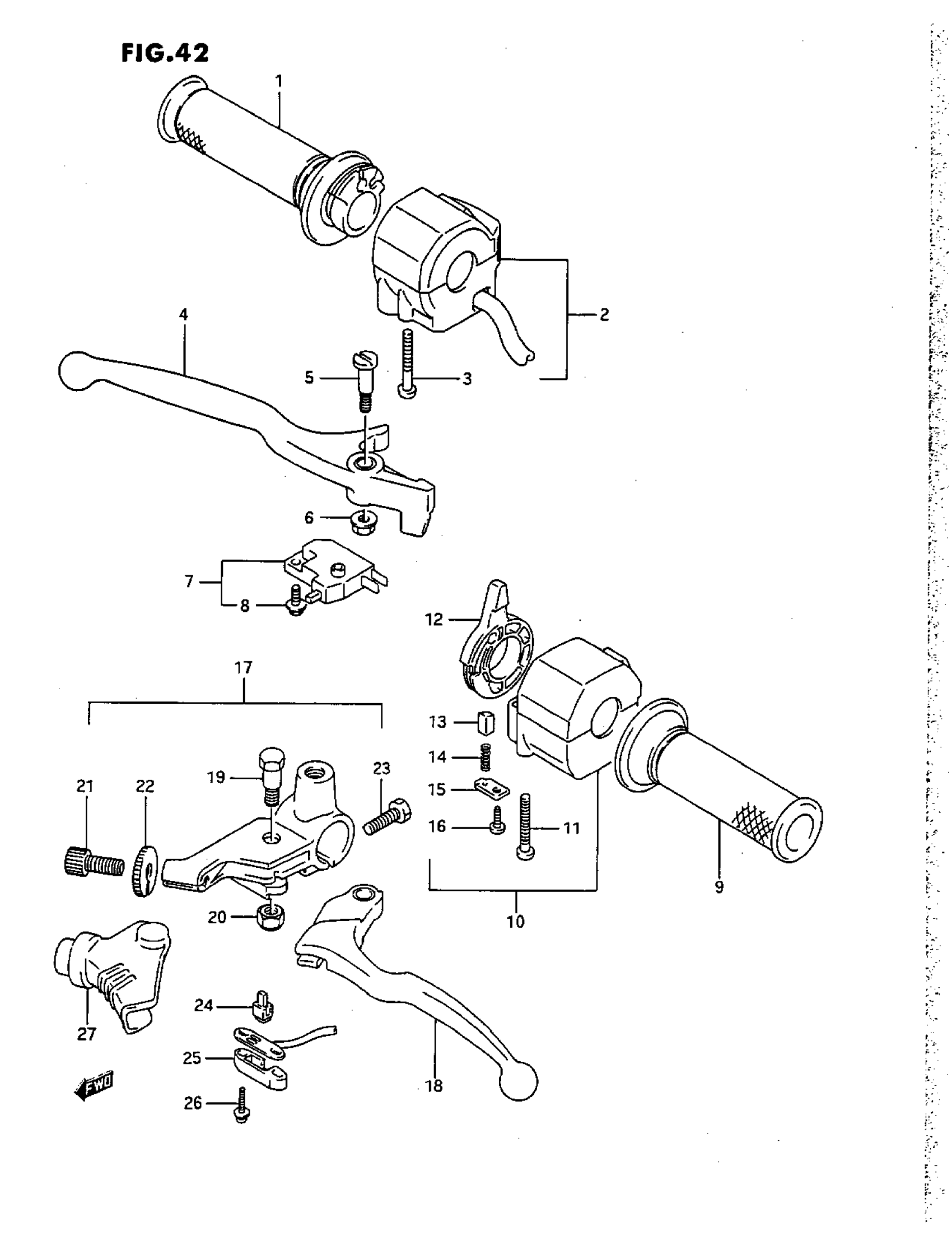

Suzuki GS500E (1993) HANDLE SWITCH (K) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-05C01

Unavailable

2

SWITCH ASSY, HANDLE RH This part replaces 37200-01D10.

37200-01D30

Unavailable

3

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

4

LEVER, BRAKE

57420-01D00

Unavailable

5

BOLT

57431-17C00

$7.11

6

NUT This part replaces 08316-16064.

08316-1006B

$2.50

7

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$38.46

8

SCREW

57465-17C00

$2.19

9

GRIP, LH

57211-05C00

Unavailable

10

SWITCH ASSY, HANDLE LH This part replaces 37400-01D11.

37400-01D30

$178.52

11

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

12

LEVER, CHOCK This part replaces 37481-30B00.

37481-30B01

Unavailable

13

PIECE, SLIDE

37482-30B00

Unavailable

14

SPRING

37483-30B00

Unavailable

15

PLATE

37486-30B00

Unavailable

16

SCREW This part replaces 03511-04125.

03511-0412A

$1.49

17

LEVER ASSY, CLUTCH

57500-33430

Unavailable

18

LEVER, CLUTCH

57620-33410

Unavailable

19

BOLT This part replaces 57431-33450.

57531-14A00

$7.46

20

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

21

ADJUSTER

57441-11010

$5.62

22

NUT

57442-11010

$2.79

23

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

24

HOLDER

57465-18601

$4.34

25

COVER

57481-33010

$5.84

26

SCREW

57484-49110

$1.98

27

COVER, CLUTCH LEVER

57661-33400

$8.12
