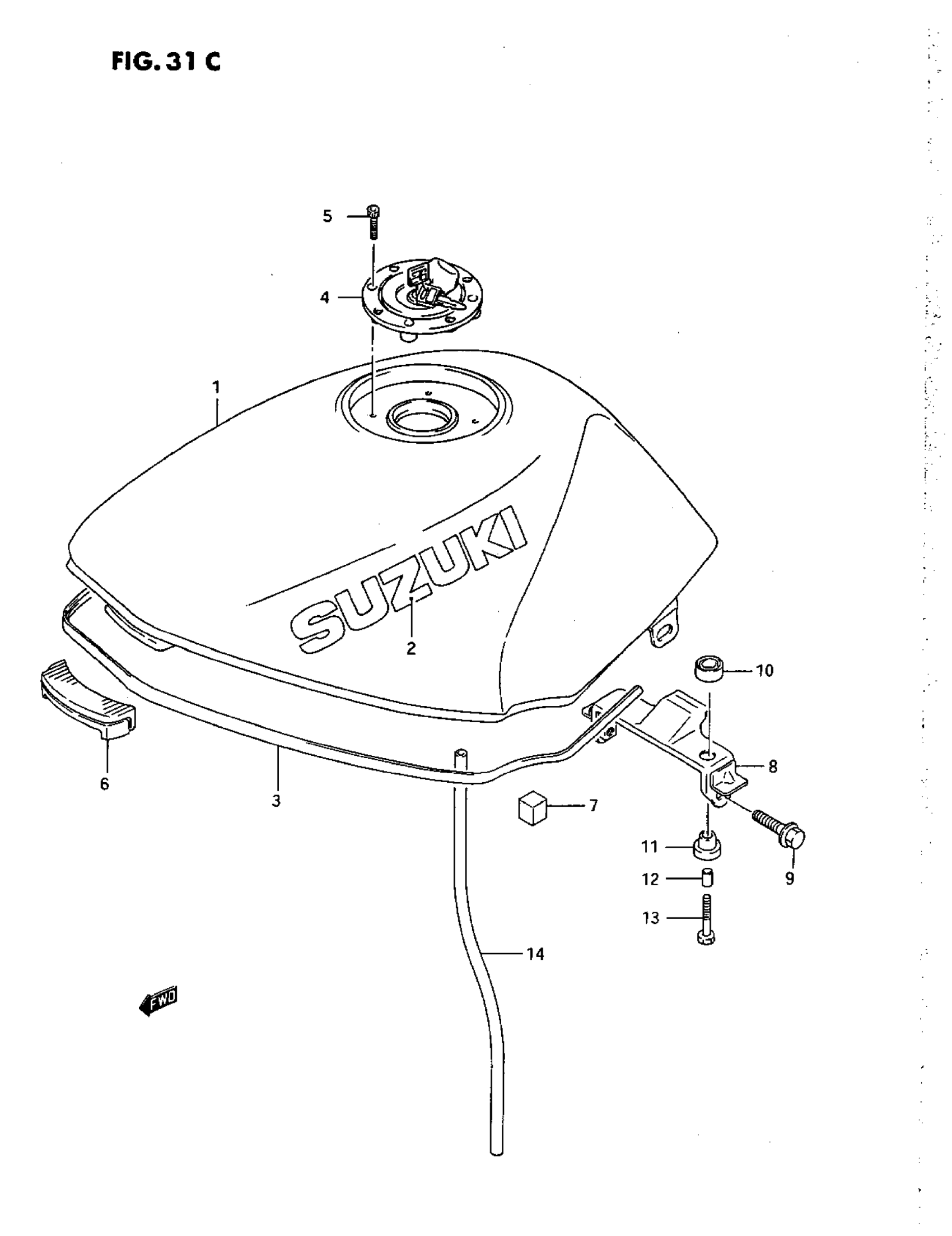

Suzuki GS500E (1993) FUEL TANK (R) Diagram

#

Description
Price

1

TANK ASSY, FUEL (PURPLE) This part replaces 44100-02D70-1TU.

44100-02D71-1TU

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-02D70-19A.

44100-02D71-19A

Unavailable

1

TANK ASSY, FUEL (PURPLE) | CALIFORNIA ONLY This part replaces 44100-02D90-1TU.

44100-02D91-1TU

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-02D90-19A.

44110-01D22-YD8

Unavailable

2

EMBLEM | FOR 1TU This part replaces 68111-01D20-C1Z.

68111-01D20-D1F

Unavailable

2

EMBLEM | FOR 19A

68111-01D20-C1W

Unavailable

3

MOLDING This part replaces 68241-01D00.

68241-04X50-00B

$27.30

4

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

4

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

5

BOLT

09106-05017

$2.83

6

CUSHION, FRONT

44511-34A00

$11.08

7

CUSHION, SIDE

44545-48B10

$7.48

8

BRACKET, REAR This part replaces 44550-01D00.

44550-01D01

$48.38

9

BOLT This part replaces 01517-08407.

01550-08407

$3.42

10

CUSHION, REAR UPPER

09320-14017

$2.35

11

CUSHION, REAR LOWER

09320-10038

$2.61

12

SPACER

09180-06180

Unavailable

13

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

14

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

$15.80
