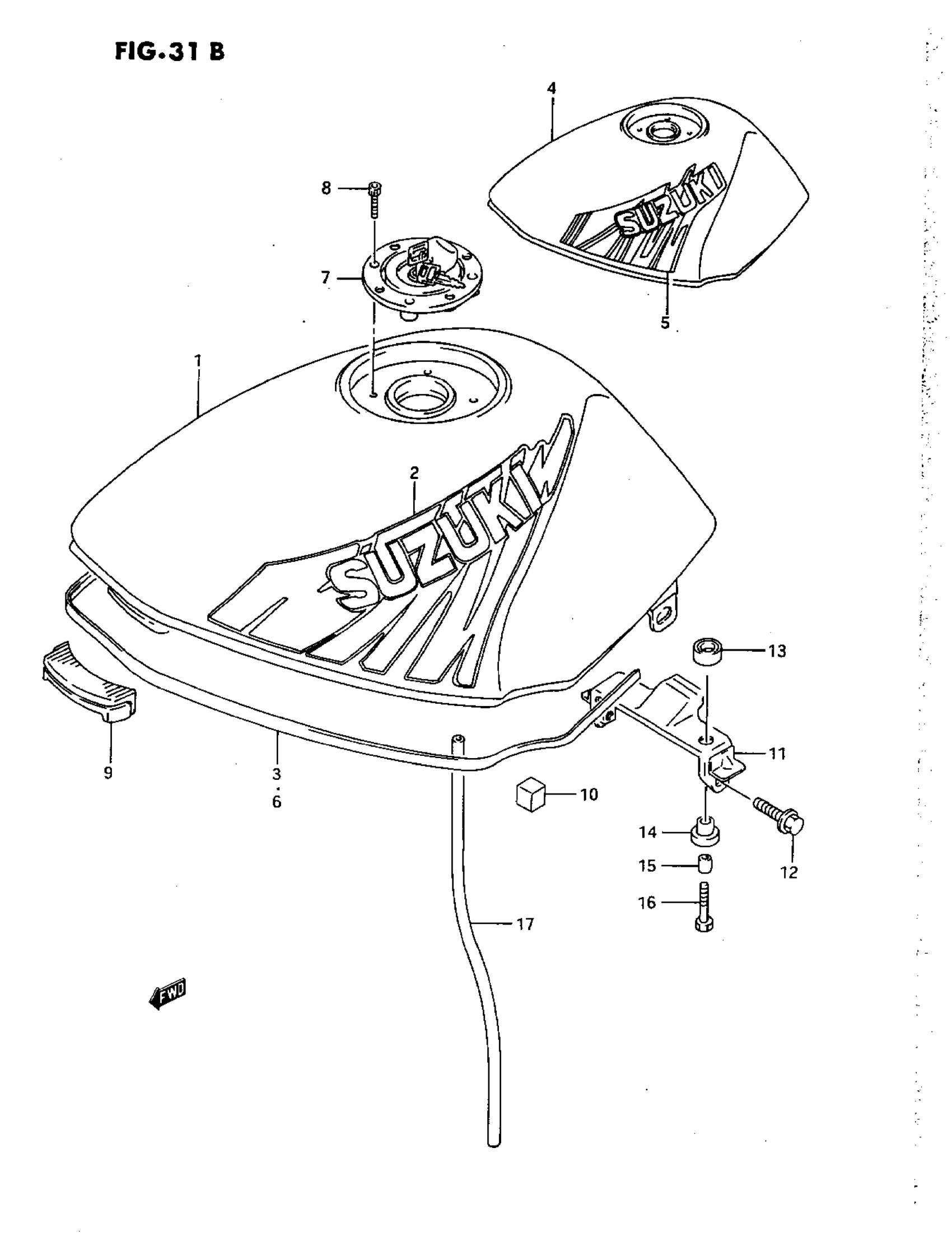

Suzuki GS500E (1993) FUEL TANK (N/P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-02D00-1HU.

44100-02D10-1HU

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-02D00-28V.

44100-02D10-28V

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-02D00-33J.

44100-02D10-33J

Unavailable

1

TANK ASSY, FUEL (PURPLE) | CALIFORNIA ONLY, MODEL N

44100-02D20-1HU

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL N This part replaces 44100-02D20-28V.

44110-01D22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL N This part replaces 44100-02D20-33J.

44110-01D22-YD8

Unavailable

2

TAPE SET, FUEL TANK | MODEL N FOR 1HU

68110-01D30-L32

Unavailable

2

TAPE SET, FUEL TANK | MODEL N FOR 28V

68110-01D30-L34

Unavailable

2

TAPE SET, FUEL TANK | MODEL N FOR 33J

68110-01D30-L33

Unavailable

3

MOLDING This part replaces 68241-01D00.

68241-04X50-00B

$27.30

4

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-02D40-1HU.

44100-02D51-1HU

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-02D40-28V.

44100-02D51-28V

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-02D40-33J.

44100-02D51-33J

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL P This part replaces 44100-02D60-1HU.

44100-02D61-1HU

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL P This part replaces 44100-02D60-28V.

44100-02D61-28V

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL P This part replaces 44100-02D60-33J.

44100-02D61-33J

Unavailable

5

TAPE SET, FUEL TANK | MODEL P FOR 1HU

68110-01D40-A4M

Unavailable

5

TAPE SET, FUEL TANK | MDOEL P FOR 28V

68110-01D40-A4K

Unavailable

5

TAPE SET, FUEL TANK | MODEL P FOR 33J

68110-01D40-A4L

Unavailable

6

MOLDING This part replaces 68241-01D00.

68241-04X50-00B

$27.30

7

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

7

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

8

SOLT

09106-05017

$2.83

9

CUSHION, FRONT

44511-34A00

$11.08

10

CUSHION, SIDE

44545-48B10

$7.48

11

BRACKET, REAR This part replaces 44550-01D00.

44550-01D01

$48.38

12

BOLT This part replaces 01517-08407.

01550-08407

$3.42

13

CUSHION, REAR UPPER

09320-14017

$2.35

14

CUSHION, REAR LOWER

09320-10038

$2.61

15

SPACER

09180-06180

Unavailable

16

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

17

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

$15.80
