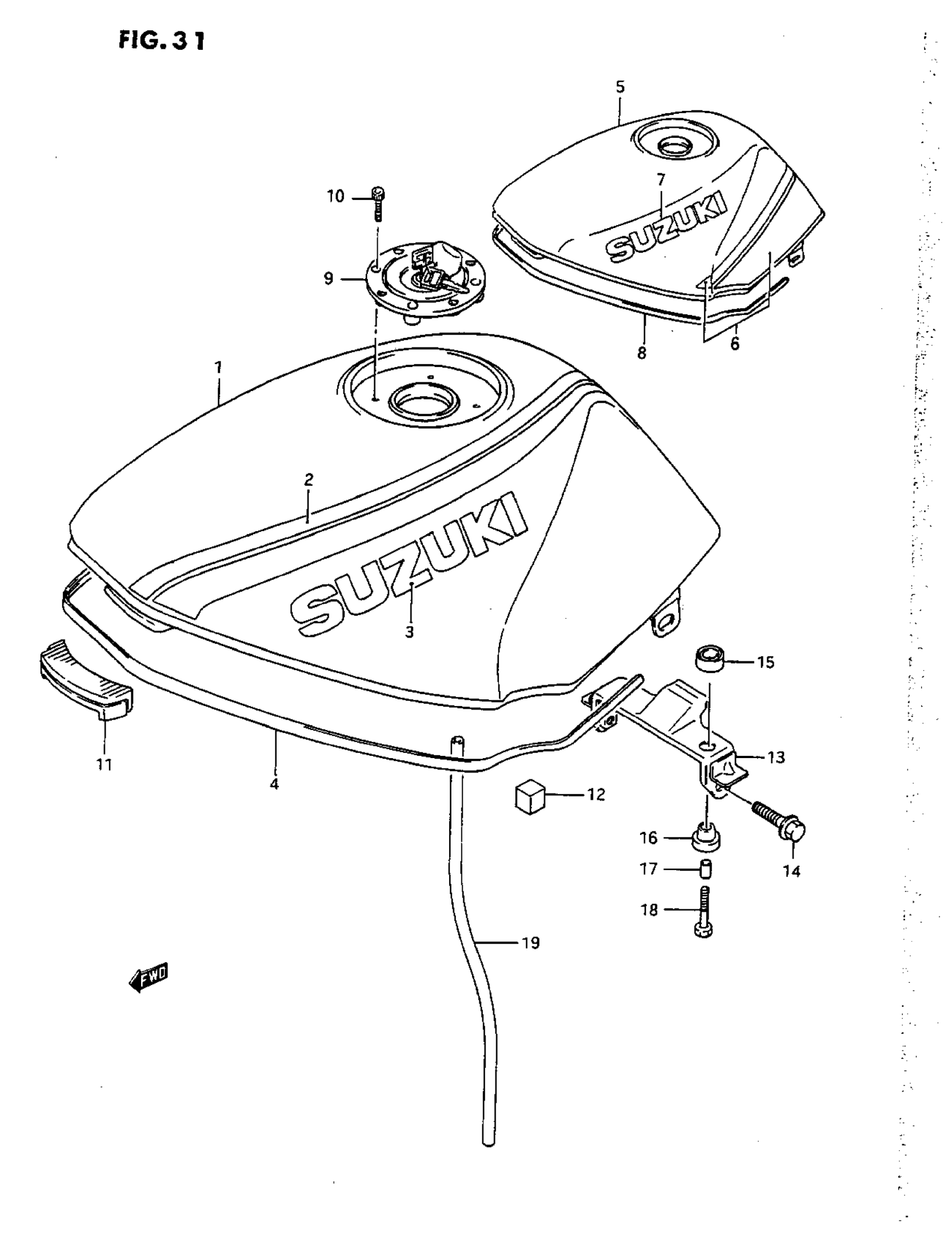

Suzuki GS500E (1993) FUEL TANK (K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 44100-01D00-22R.

44110-01D13-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 44100-01D00-33J.

44110-01D13-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL K This part replaces 44100-01D20-22R.

44110-01D22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL K This part replaces 44100-01D20-33J.

44110-01D22-YD8

Unavailable

2

TAPE SET, FUEL TANK | MODEL K FOR 22R

68110-01D00-2DN

Unavailable

2

TAPE SET, FUEL TANK | MODEL K FOR 33J

68110-01D00-8SH

Unavailable

3

EMBLEM, FUEL TANK (BLUE) | MODEL K FOR 22R

68111-01D00-33N

Unavailable

3

EMBLEM, FUEL TANK (WHITE) | MODEL K FOR 33I

68111-01D00-064

Unavailable

4

MOLDING | MODEL K This part replaces 68241-01D00.

68241-04X50-00B

$27.30

5

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-01D30-28V.

44110-01D13-YD8

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-01D30-33J.

44100-01D40-33J

Unavailable

5

TANK ASSY, FUEL (RED) | CALIFORNIA ONLY, MODEL L

44100-01D50-28V

Unavailable

5

TANK ASSY, FUEL (BLACK) | CALIFORNIA ONLY, MODEL L

44100-01D50-33J

Unavailable

6

TAPE SET, FUEL TANK | MODEL L FOR 28V

68110-01D10-3YR

Unavailable

6

TAPE SET, FUEL TANK | MODEL L FOR 33J

68110-01D10-3VN

Unavailable

7

EMBLEM (WHITE) | MODEL L FOR 28V

68111-01D00-0JW

Unavailable

7

EMBLEM (SILVER) | MODEL L FOR 33J This part replaces 68111-01D00-742.

68111-01D00-13L

Unavailable

8

MOLDING | MODEL L This part replaces 68241-01D00.

68241-04X50-00B

$27.30

9

CAP SET,FUEL TA | MODEL K This part replaces 44200-01D00-KEY.

44201-01833

Unavailable

9

CAP SET,FUEL TA | MODEL L This part replaces 44201-01810.

44201-01833

Unavailable

9

CAP SET, FUEL | CALIFORNIA ONLY, MODEL K This part replaces 44200-01D10-KEY.

44201-01842

Unavailable

9

CAP SET, FUEL | CALIFORNIA ONLY, MODEL L This part replaces 44201-01820.

44201-01842

Unavailable

10

BOLT

09106-05017

$2.83

11

CUSHION, FRONT

44511-34A00

$11.08

12

CUSHION, SIDE

44545-48B10

$7.48

13

BRACKET, REAR This part replaces 44550-01D00.

44550-01D01

$48.38

14

BOLT This part replaces 01517-08407.

01550-08407

$3.42

15

CUSHION, REAR UPPER

09320-14017

$2.35

16

CUSHION, REAR LOWER

09320-10038

$2.61

17

SPACER

09180-06180

Unavailable

18

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

19

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

$15.80
