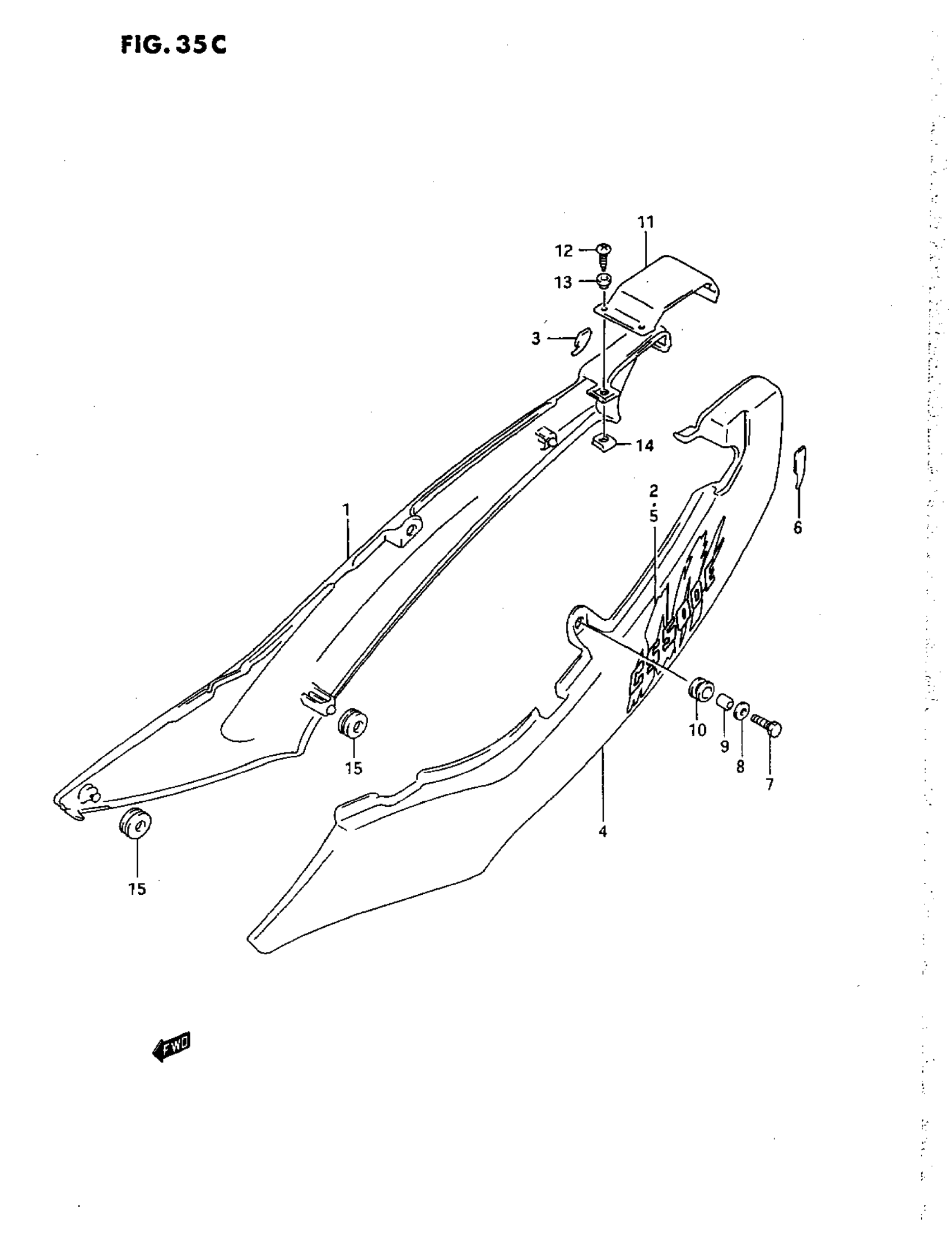

Suzuki GS500E (1993) FRAME COVER (R) Diagram

#

Description
Price

1

COVER, FRAME RH (RED)

47110-01DC0-19A

Unavailable

1

COVER, FRAME RH (PURPLE)

47110-01DC0-1TU

Unavailable

2

EMBLEM | FOR 19A

68131-01D20-C1W

Unavailable

2

EMBLEM | FOR 1TU

68131-01D20-C1Z

Unavailable

3

PROTECTOR, RH

47119-01D00

Unavailable

4

COVER, FRAME LH (RED)

47210-01DC0-19A

Unavailable

4

COVER, FRAME LH (PURPLE)

47210-01DC0-1TU

Unavailable

5

EMBLEM | FOR 19A

68131-01D20-C1W

Unavailable

5

EMBLEM | FOR 1TU

68131-01D20-C1Z

Unavailable

6

PROTECTOR, LH

47219-01D00

Unavailable

7

BOLT This part replaces 09128-06006.

09128-06057

$1.65

8

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

9

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

10

CUSHION

09320-09016

$1.97

11

COVER, CENTER (RED)

47215-01D00-19A

Unavailable

11

COVER, CENTER (PURPLE)

47215-01D00-1TU

Unavailable

12

SCREW This part replaces 03241-05123.

03241-0512A

$1.49

13

WASHER

09161-05017

$3.18

14

NUT

09148-05013

$2.07

15

CUSHION

09320-08018

$3.04
