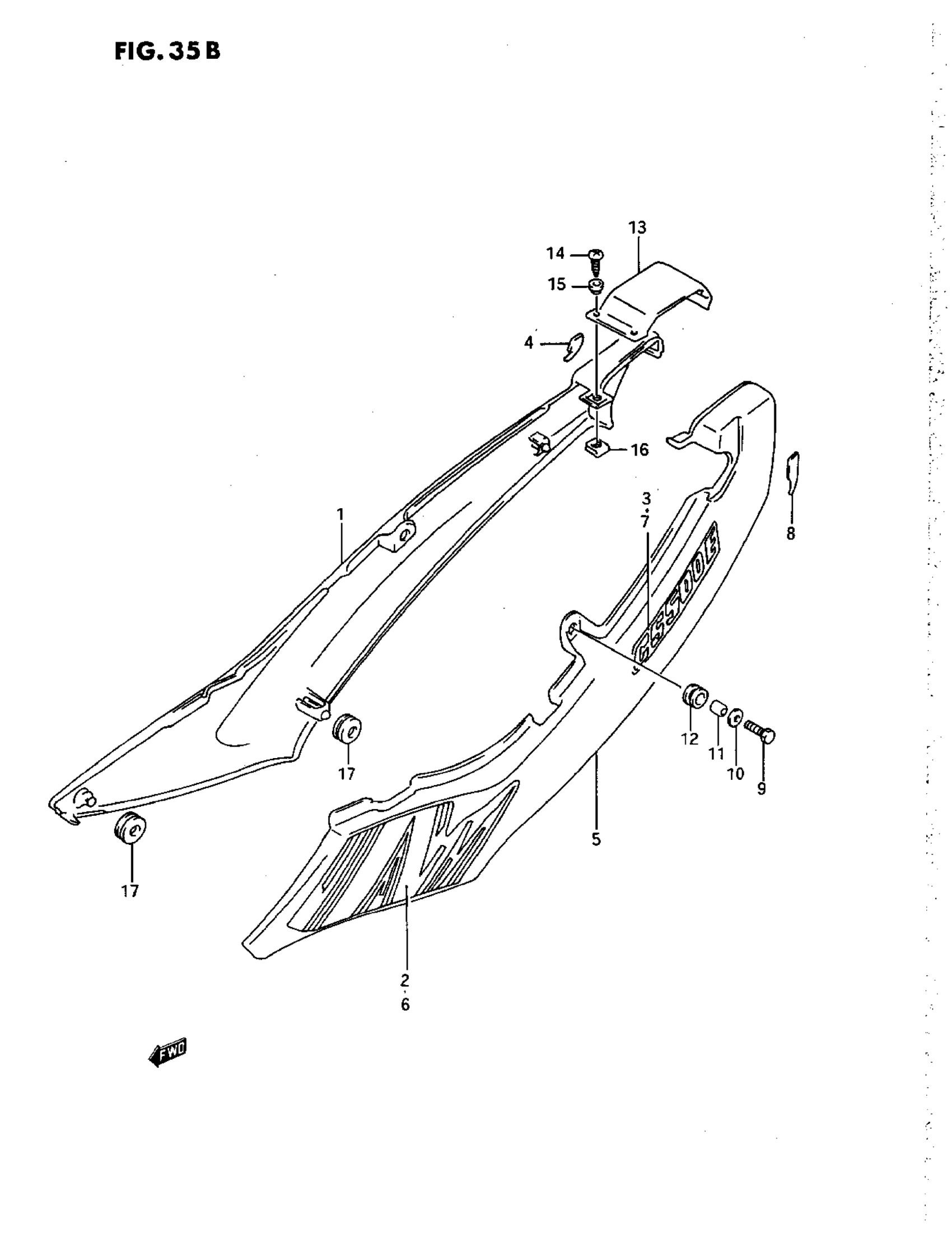

Suzuki GS500E (1993) FRAME COVER (P) Diagram

#

Description
Price

1

COVER,FRAME,R This part replaces 47110-01DA0-28V.

47111-01D00-28V

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 47110-01DA0-33J.

47111-01D00

Unavailable

1

COVER, FRAME RH (PURPLE)

47110-01DA0-1HU

Unavailable

2

TAPE, RH | FOR 28V

68135-01D00-A4K

Unavailable

2

TAPE, RH | FOR 33J

68135-01D00-A4L

Unavailable

2

TAPE, RH | FOR 1HU

68135-01D00-A4M

Unavailable

3

EMBLEM | FOR 28V

68131-01D10-A4N

Unavailable

3

EMBLEM | FOR 33J

68131-01D10-3DC

Unavailable

3

EMBLEM | FOR 1HU

68131-01D10-A4P

Unavailable

4

PROTECTOR, RH

47119-01D00

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 47210-01DA0-28V.

47211-01D00-28V

Unavailable

5

COVER, FRAME LH (BLACK)

47210-01DA0-33J

Unavailable

5

COVER, FRAME LH (PURPLE)

47210-01DA0-1HU

Unavailable

6

TAPE, LH | FOR 28V

68145-01D00-A4K

Unavailable

6

TAPE, LH | FOR 33J

68145-01D00-A4L

Unavailable

6

TAPE, LH | FOR 1HU

68145-01D00-A4M

Unavailable

7

EMBLEM | FOR 28V

68131-01D10-A4N

Unavailable

7

EMBLEM | FOR 33J

68131-01D10-3DC

Unavailable

7

EMBLEM | FOR 1HU

68131-01D10-A4P

Unavailable

8

PROTECTOR, LH

47219-01D00

Unavailable

9

BOLT This part replaces 09128-06006.

09128-06057

$1.65

10

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

11

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

12

CUSHION

09320-09016

$1.97

13

COVER COMP,FRAM This part replaces 47215-01D00-28V.

47215-01D00

Unavailable

13

COVER, CENTER (BLACK)

47215-01D00-33J

Unavailable

13

COVER, CENTER (PURPLE)

47215-01D00-1HU

Unavailable

14

SCREW This part replaces 03242-05124.

03241-0512A

$1.49

15

WASHER

09161-05017

$3.18

16

NUT This part replaces 09148-05004.

09148-05013

$2.07

17

CUSHION

09320-08018

$3.04
