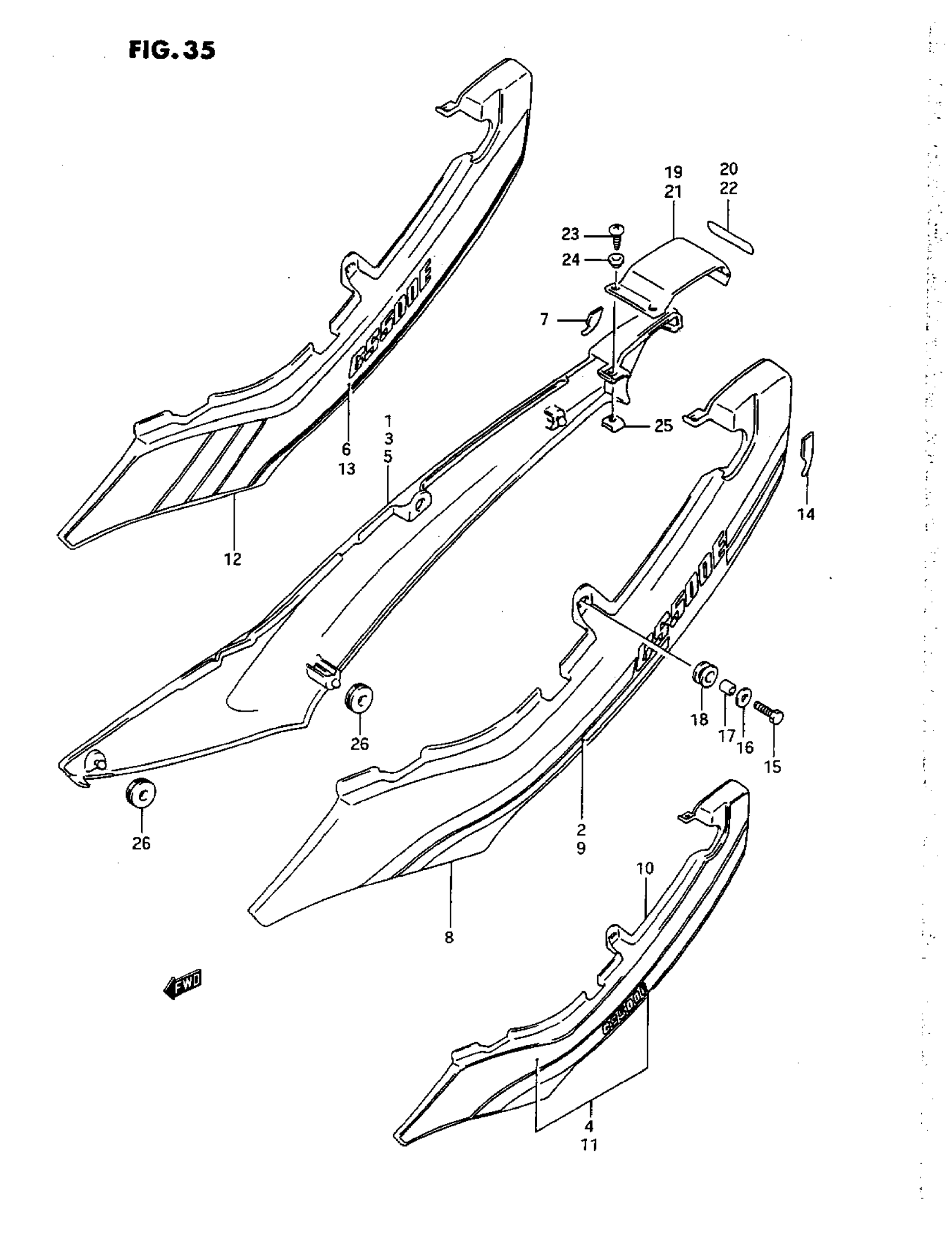

Suzuki GS500E (1993) FRAME COVER (K/L/M) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47110-01D10-22R.

47111-01D00

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47110-01D10-33J.

47111-01D00

Unavailable

2

TAPE SET, RH | MODEL K FOR 22R

68130-01D10-3HP

Unavailable

2

TAPE SET, RH | MODEL K FOR 33J

68130-01D10-3HS

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47110-01D30-28V.

47111-01D00

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47110-01D30-33J.

47111-01D00

Unavailable

4

TAPE SET, FRAME COVER RH | MODEL L FOR 28V

68130-01D30-3YR

Unavailable

4

TAPE SET, FRAME COVER RH | MODEL L FOR 33J

68130-01D30-3WG

Unavailable

5

COVER, FRAME RH (GREEN) | MODEL M

47110-01D60-0FL

Unavailable

5

COVER, FRAME RH (BLUE) | MODEL M

47110-01D60-0ZK

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47110-01D60-28V.

47111-01D00

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47110-01D60-33J.

47111-01D00

Unavailable

6

TAPE SET, RH | MODEL M FOR 0FL

68130-01D51-F95

Unavailable

6

TAPE SET, RH | MODEL M FOR 0ZK

68130-01D51-F96

Unavailable

6

TAPE SET, RH | MODEL M FOR 28V

68130-01D51-F93

Unavailable

6

TAPE SET, RH | MODEL M FOR 33J

68130-01D51-F94

Unavailable

7

PROTECTOR, RH

47119-01D00

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47210-01D10-22R.

47211-01D00

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47210-01D10-33J.

47211-01D00

Unavailable

9

TAPE SET, LH | MODEL K FOR 22R

68140-01D10-3HP

Unavailable

9

TAPE SET, LH | MODEL K FOR 33J

68140-01D10-3HS

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47210-01D30-28V.

47211-01D00

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47210-01D30-33J.

47211-01D00

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL L FOR 28V

68140-01D30-3YR

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL L FOR 33J

68140-01D30-3WG

Unavailable

12

COVER, FRAME LH (GREEN) | MODEL M

47210-01D60-0FL

Unavailable

12

COVER, FRAME LH (BLUE) | MODEL M

47210-01D60-0ZK

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47210-01D60-28V.

47211-01D00

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47210-01D60-33J.

47211-01D00

Unavailable

13

TAPE SET, LH | MODEL M FOR 0FL

68140-01D51-F95

Unavailable

13

TAPE SET, LH | MODEL M FOR 0ZK

68140-01D51-F96

Unavailable

13

TAPE SET, LH | MODEL M FOR 28V

68140-01D51-F93

Unavailable

13

TAPE SET, LH | MODEL M FOR 33J

68140-01D51-F94

Unavailable

14

PROTECTOR, LH

47219-01D00

Unavailable

15

BOLT This part replaces 09128-06006.

09128-06057

$1.65

16

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

17

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

18

CUSHION

09320-09016

$1.97

19

COVER COMP,FRAM | MODEL K This part replaces 47310-01D00-22R.

47215-01D00

Unavailable

19

COVER, FRAME CENTER (RED) | MODEL L

47310-01D00-28V

Unavailable

19

COVER COMP,FRAM | MODEL K This part replaces 47310-01D00-33J.

47215-01D00

Unavailable

19

COVER, FRAME CENTER (BLACK) | MODEL L

47310-01D00-36X

Unavailable

20

EMBLEM (BLUE) | FOR 22R

68166-01D00-33N

Unavailable

20

EMBLEM (WHITE) | FOR 36X This part replaces 68166-01D00-742.

68166-01D00-0JW

$5.70

20

EMBLEM (WHITE) | FOR 28V, 33J This part replaces 68166-01D00-064.

68166-01D00-0JW

$5.70

21

COVER COMP,FRAM | MODEL M This part replaces 47310-01D20-0FL.

47215-01D00

Unavailable

21

COVER COMP,FRAM | MODEL M This part replaces 47310-01D20-0ZK.

47215-01D00

Unavailable

21

COVER COMP,FRAM | MODEL M This part replaces 47310-01D20-28V.

47215-01D00

Unavailable

21

COVER, FRAME CENTER (BLACK) | MODEL M

47310-01D20-33J

Unavailable

22

EMBLEM (WHITE) | MODEL M FOR 0FL This part replaces 68166-01D00-13L.

68166-01D00-0JW

$5.70

22

EMBLEM (SILVER) | MODEL M FOR 0ZK, 33J

68166-01D00-0FP

Unavailable

22

EMBLEM (WHITE) | MODEL M FOR 28V This part replaces 68166-01D00-22R.

68166-01D00-0JW

$5.70

23

SCREW This part replaces 03241-05125.

03241-0512A

$1.49

24

WASHER

09161-05017

$3.18

25

NUT This part replaces 09148-05004.

09148-05013

$2.07

26

CUSHION

09320-08018

$3.04
