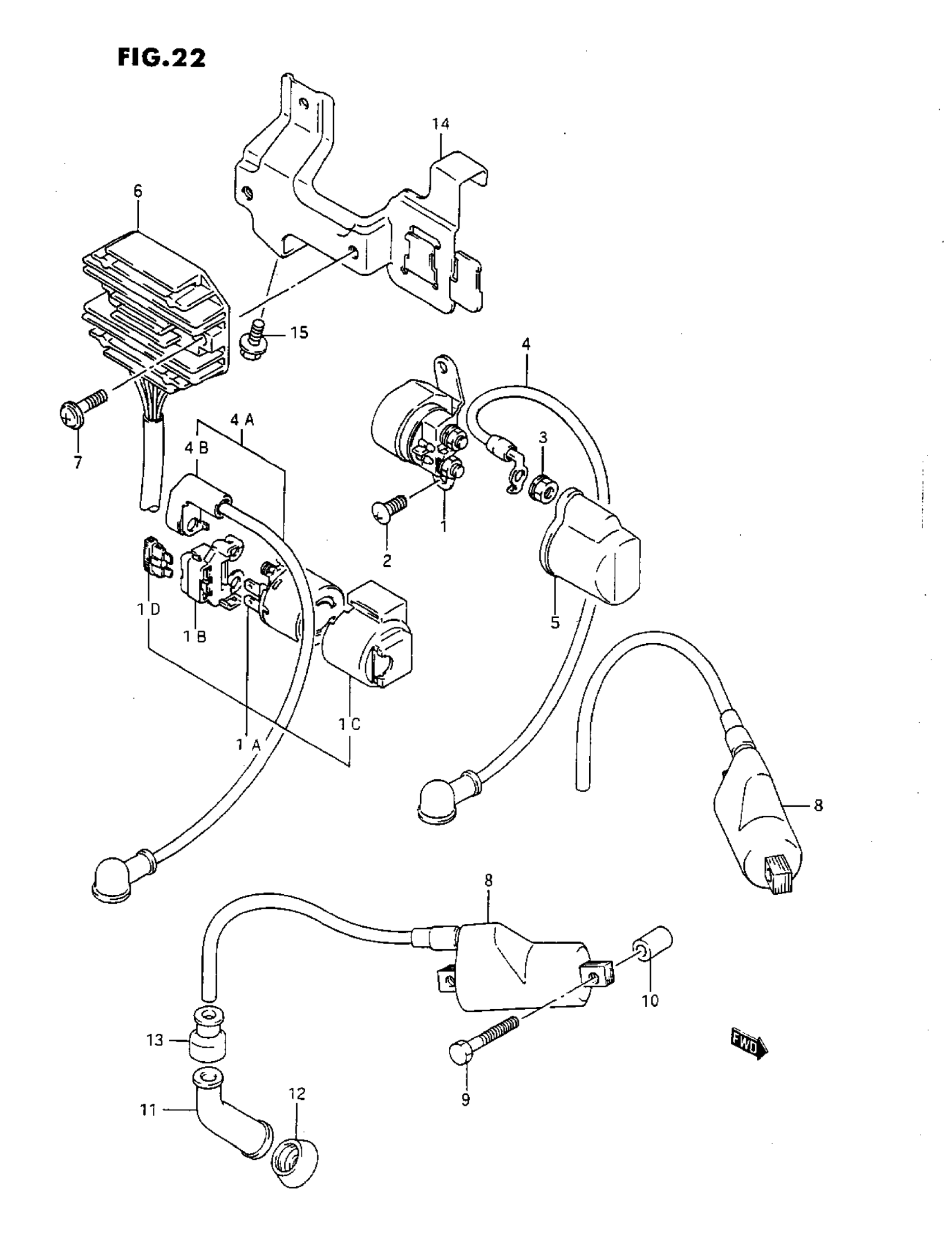

Suzuki GS500E (1993) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | MODEL K

31800-49100

$97.31

1

RELAY ASSY, STARTING MOTOR | MODEL L/M/N/P/R

31800-01D00

$119.28

1

TERMINAL, RELAY | MODEL L/M/N/P/R

31841-01D00

Unavailable

1

HOLDER, RELAY | MODEL L/M/N/P/R

31892-07D00

$15.00

1

FUSE (20A) | MODEL L/M/N/P/R

09481-20101

$2.12

2

SCREW | MODEL K This part replaces 02112-06106.

02112-0610B

$1.84

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 33850-01D00.

33850-04A00

Unavailable

4

WIRE, STARTER MOTOR LEAD | MODEL L/M/N/P/R

33850-01D10

Unavailable

4

CAP | MODEL L/M/N/P/R

33624-01D10

Unavailable

5

CAP, TERMINAL | MODEL K This part replaces 31861-44500.

31861-46D00

$7.87

6

RECTIFIER ASSY | MODEL K/L/M/N This part replaces 32800-30B01.

32800-33C01

$343.93

6

RECTIFIER ASSY | MODEL P/R This part replaces 32800-33C00.

32800-33C01

$343.93

7

SCREW | MODEL K/L/M/N

02152-06206

Unavailable

7

SCREW | MODEL P/R This part replaces 02142-06203.

02142-0620A

$1.49

8

COIL ASSY, IGNITION

33410-01D00

$181.73

9

BOLT | <-01107-06406 This part replaces 01500-06403.

01500-0640B

$2.62

10

SPACER (6.2X12X18)

09180-06204

Unavailable

11

CAP ASSY, SPARK PLUG | -F.NO.2119437

33510-38B00

$31.72

11

CAP ASSY, SPARK PLUG | F.NO.2119438-

33510-97313

$14.73

12

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

14

HOLDER, ELECTRIC PARTS

47410-01D00

Unavailable

15

BOLT

01550-06167

$2.30
