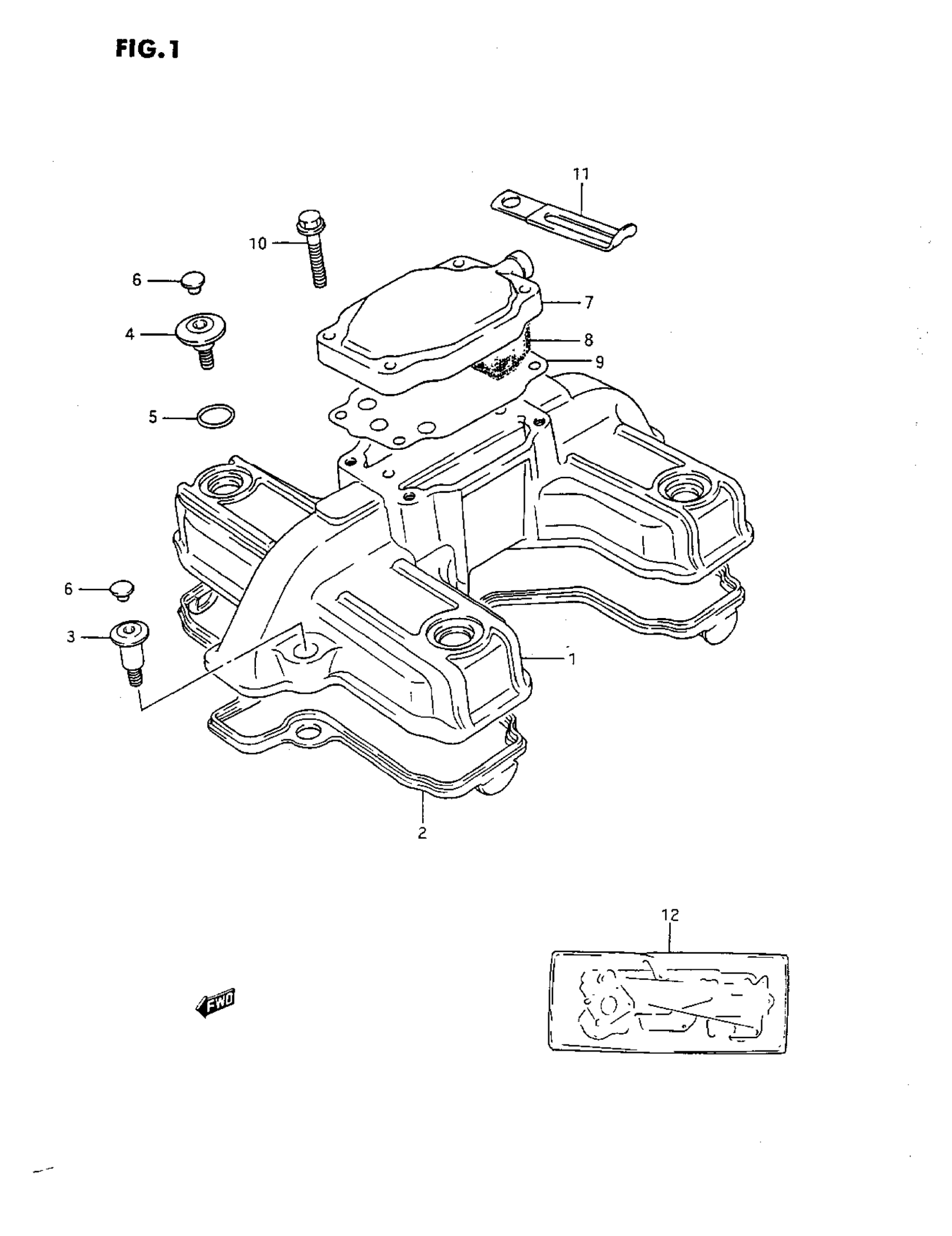

Suzuki GS500E (1993) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD This part replaces 11171-01D01.

11171-01D02

Unavailable

2

GASKET, CYLINDER HEAD COVER This part replaces 11173-15502.

11173-01D00

$34.73

3

BOLT (L:19) | MODEL K/L

09106-07002

Unavailable

3

BOLT (L:19) | MODEL M/N/P/R

09106-07010

$4.64

4

BOLT (L:5.5) | MODEL K/L

09106-07001

Unavailable

4

BOLT (7X17.5) | MODEL M/N/P/R This part replaces 09106-07009.

09106-07021

$4.50

5

O-RING

09280-15006

$2.90

6

CAP | MODEL K/L/M This part replaces 09250-06008.

09250-06016

$1.96

7

COVER, BREATHER

11176-33201

Unavailable

8

SEPARATOR, OIL BREATHER | MODEL K/L/M/N/P This part replaces 11186-15500.

11186-15501

$8.45

8

SEPARATOR, OIL BREATHER | MODEL R

11186-15501

$8.45

9

GASKET, BREATHER COVER | MODEL K/L/M/N This part replaces 11177-15510.

11177-15510-H17

$4.07

9

GASKET, BREATHER COVER | MODEL P/R

11177-15510-H17

$4.07

10

BOLT | MODEL K/L/M/N/P This part replaces 01517-06257.

01550-06257

$2.30

10

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

11

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

12

GASKET SET This part replaces 11400-01844.

11400-01864

$314.63
