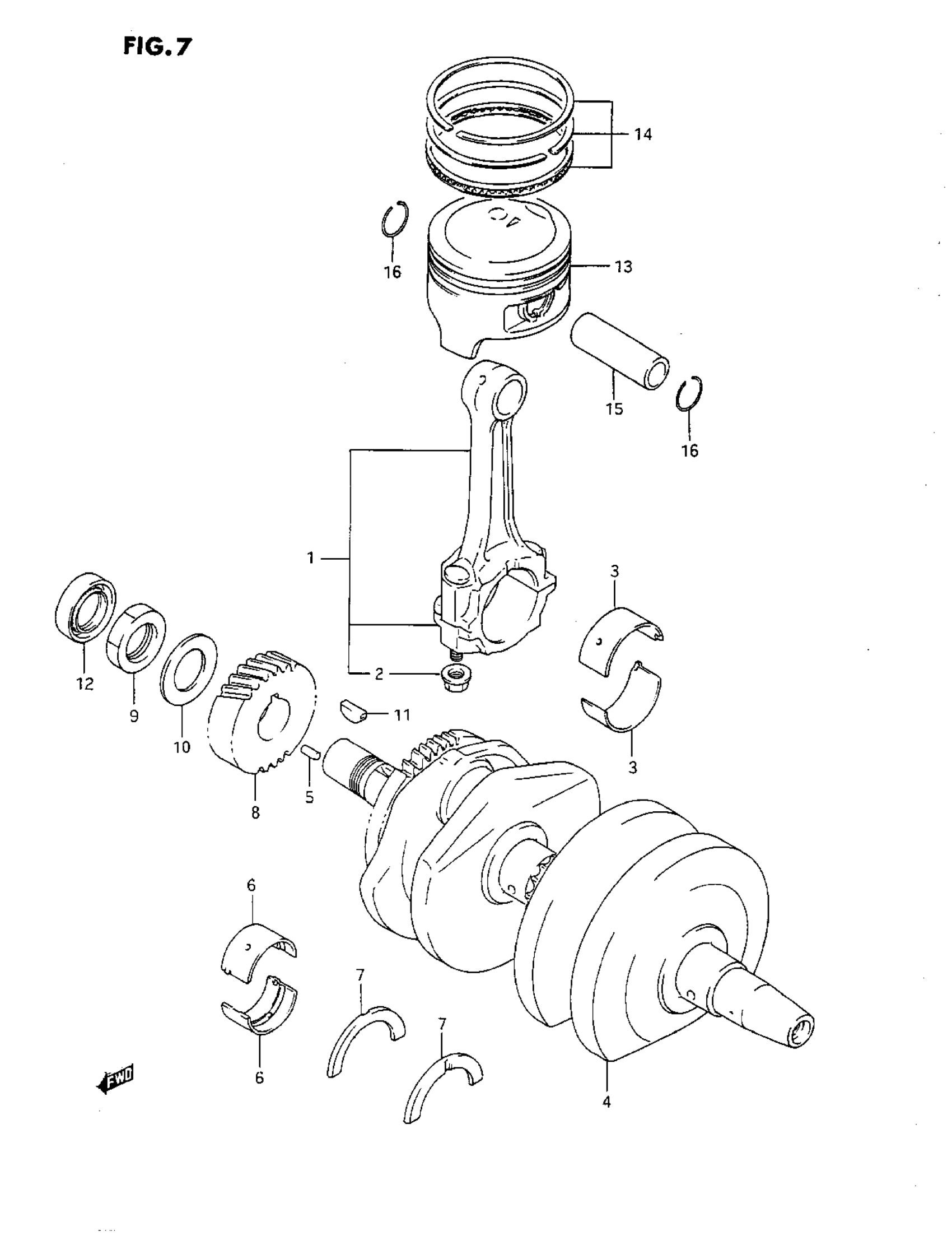

Suzuki GS500E (1993) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING This part replaces 12160-44100.

12160-44101

$163.57

2

NUT

09159-08033

$3.50

3

BEARING KIT | OPT

99104-BRGKT-005

Unavailable

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-01D00-0A0.

12164-01D01-0A0

$17.65

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-01D00-0B0.

12164-01D01-0B0

$17.65

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-01D00-0C0.

12164-01D01-0C0

$17.32

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-01D00-0D0.

12164-01D01-0D0

$17.65

3

BEARING, CRANK PIN (US:0.25) | OPT

12164-44100-025

$15.98

3

BEARING, CRANK PIN (US:0.5) | OPT

12164-44100-050

Unavailable

4

CRANKSHAFT | MODEL K/L This part replaces 12220-01D00.

12220-01D02

Unavailable

4

CRANKSHAFT | MODEL M/N/P This part replaces 12220-01D01.

12220-01D02

Unavailable

4

CRANKSHAFT | MODEL R

12220-01D02

Unavailable

5

PIN

04221-03059

$1.72

6

BEARING KIT | OPT

99104-BRGKT-005

Unavailable

6

BEARING, CRANKSHAFT (GREEN)

12229-01D01-0A0

$10.87

6

BEARING, CRANKSHAFT (BLACK)

12229-01D01-0B0

$10.87

6

BEARING, CRANKSHAFT (BROWN)

12229-01D01-0C0

$12.78

6

BEARING, CRANKSHAFT (YELLOW)

12229-01D01-0D0

$12.78

6

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-44100-025

Unavailable

6

BEARING, CRANKSHAFT (US:0.5) | OPT

12229-44100-050

Unavailable

7

BEARING, THRUST

12228-44106

$10.07

8

GEAR, PRIMARY DRIVE (NT:28)

21111-44100

Unavailable

9

NUT

09140-24007

$3.89

10

WASHER

09164-25001

Unavailable

11

KEY

08341-31059

$2.48

12

OIL SEAL, RH (22X4 OX8)

09283-22015

$9.72

13

PISTON | MODEL K/L/M/N/P This part replaces 12111-01D00-0F0.

12111-01D01-0F0

$105.05

13

PISTON | MODEL R

12111-01D01-0F0

$105.05

13

PISTON SET (OS:0.5) | OPT, MODEL K/L/M/N/P This part replaces 12111-01D00-050.

12100-01D00-050

$173.50

13

PISTON SET (OS:0.5) | OPT, MODEL R This part replaces 12111-01D01-050.

12100-01D00-050

$173.50

13

PISTON SET (OS:1.0) | OPT, MODEL K/L/M/N/P This part replaces 12111-01D00-100.

12100-01D00-100

Unavailable

13

PISTON SET (OS:1.0) | OPT, MODEL R This part replaces 12111-01D01-100.

12100-01D00-100

Unavailable

14

RING SET, PISTON

12140-01D20

$46.22

14

RING SET, PISTON (OS:0.5) | OPT

12140-01D20-050

Unavailable

14

RING SET, PISTON (OS:1.0) | OPT

12140-01D20-100

Unavailable

15

PIN, PISTON

12151-45501

$17.37

16

CIRCLIP

09381-18002

$1.67
