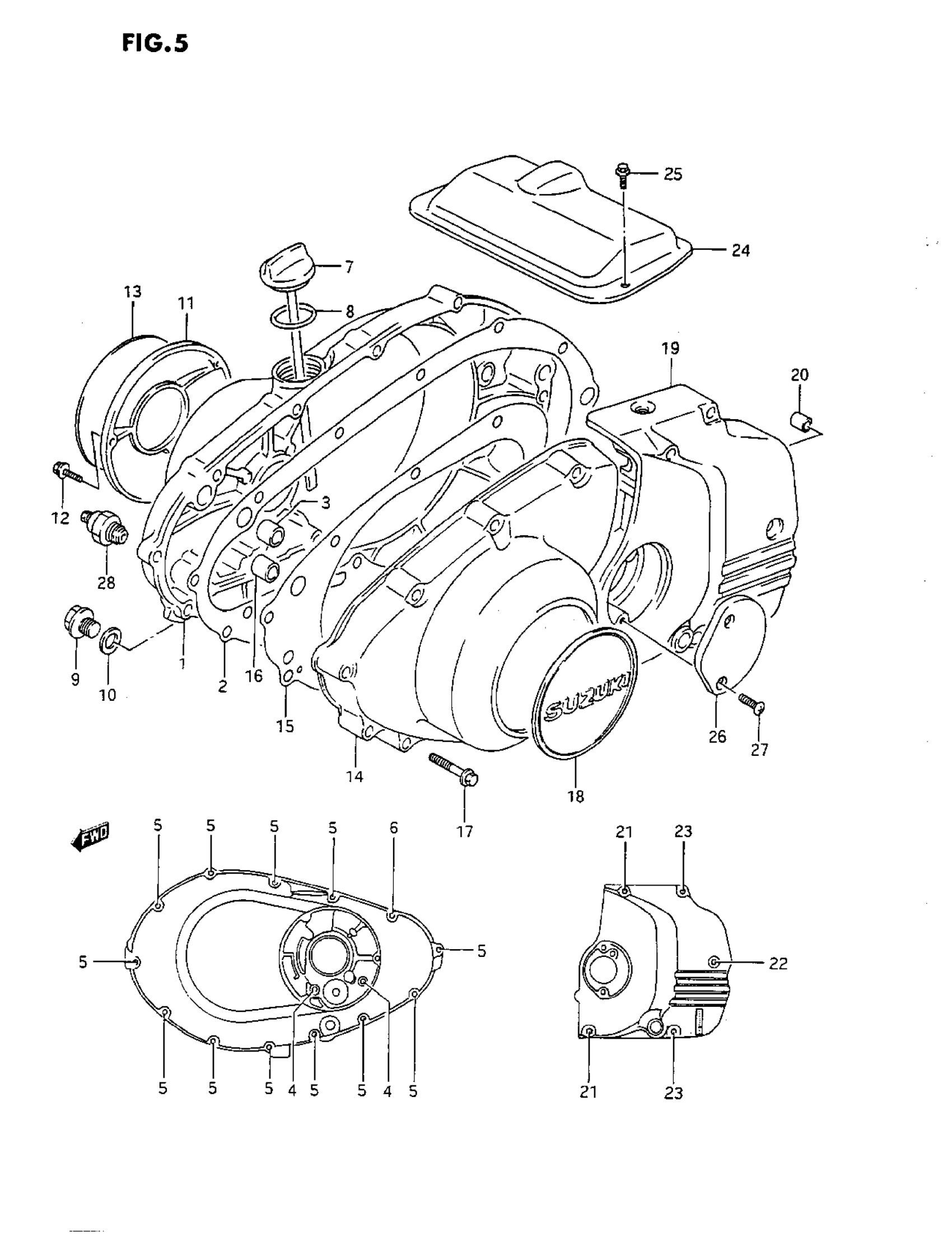

Suzuki GS500E (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-01D00

Unavailable

2

GASKET, CLUTCH COVER | MODEL K/L/M/N This part replaces 11482-44100.

11482-44110

$20.96

2

GASKET, CLUTCH COVER | MODEL P/R

11482-44110

$20.96

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

BOLT

01547-06557

$2.32

5

BOLT | MODEL K/R

01547-06357

$2.03

5

BOLT, WATER PUMP | MODEL L/M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

6

BOLT | MODEL K/R

01547-06257

$2.03

6

BOLT, FINAL GEAR CASE COVER | MODEL L/M/N/P This part replaces 01547-06254.

01547-0625B

$2.45

7

GAUGE, OIL LEVEL

11970-44110

Unavailable

8

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

9

PLUG | MODEL K/L/M/N/P This part replaces 09247-14012.

09247-14026

$3.76

9

PLUG, OIL CHECK | MODEL R

09247-14026

$3.76

10

GASKET

09168-14004

$1.83

11

COVER, CONTACT BREAKER

11381-01D00

Unavailable

12

BOLT | MODEL K/R

01547-05167

$1.72

12

BOLT | MODEL L/M/N/P This part replaces 01547-05165.

01547-05167

$1.72

13

EMBLEM

68233-01D00

$19.07

14

COVER, GENERATOR

11351-01D00

Unavailable

15

GASKET, GENERATOR COVER

11483-44110

$13.36

16

PIN This part replaces 09206-13001.

04211-13189

$2.19

17

BOLT | MODEL K/R

01547-06357

$2.03

17

BOLT, WATER PUMP | MODEL L/M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

18

EMBLEM

68233-01D00

$19.07

19

COVER, ENGINE SPROCKET

11361-01D00

Unavailable

20

PIN

04211-09129

$1.65

21

BOLT | MODEL K/R

01547-06657

$2.75

21

BOLT | MODEL L/M/N/P This part replaces 01547-06654.

01547-0665B

$3.18

22

BOLT | MODEL K/R

01547-06507

$2.41

22

BOLT | MODEL L/M/N/P This part replaces 01547-06505.

01547-0650B

$2.75

23

BOLT | MODEL K/R

01547-06407

$2.32

23

BOLT | MODEL L/M/N/P This part replaces 01547-06404.

01547-0640B

$2.75

24

COVER, STARTER MOTOR

11382-44111

$32.92

25

BOLT, COVER | MODEL K/L/M/N/P This part replaces 01547-05084.

01547-0508B

$2.97

25

BOLT | MODEL R

01547-05087

$1.72

26

CAP, CLUTCH RELEASE

11387-01D00

Unavailable

27

SCREW | MODEL K/R

02122-05127

$1.93

27

SCREW | MODEL L/M/N/P This part replaces 02132-05124.

02122-0512A

$1.86

28

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$25.13
