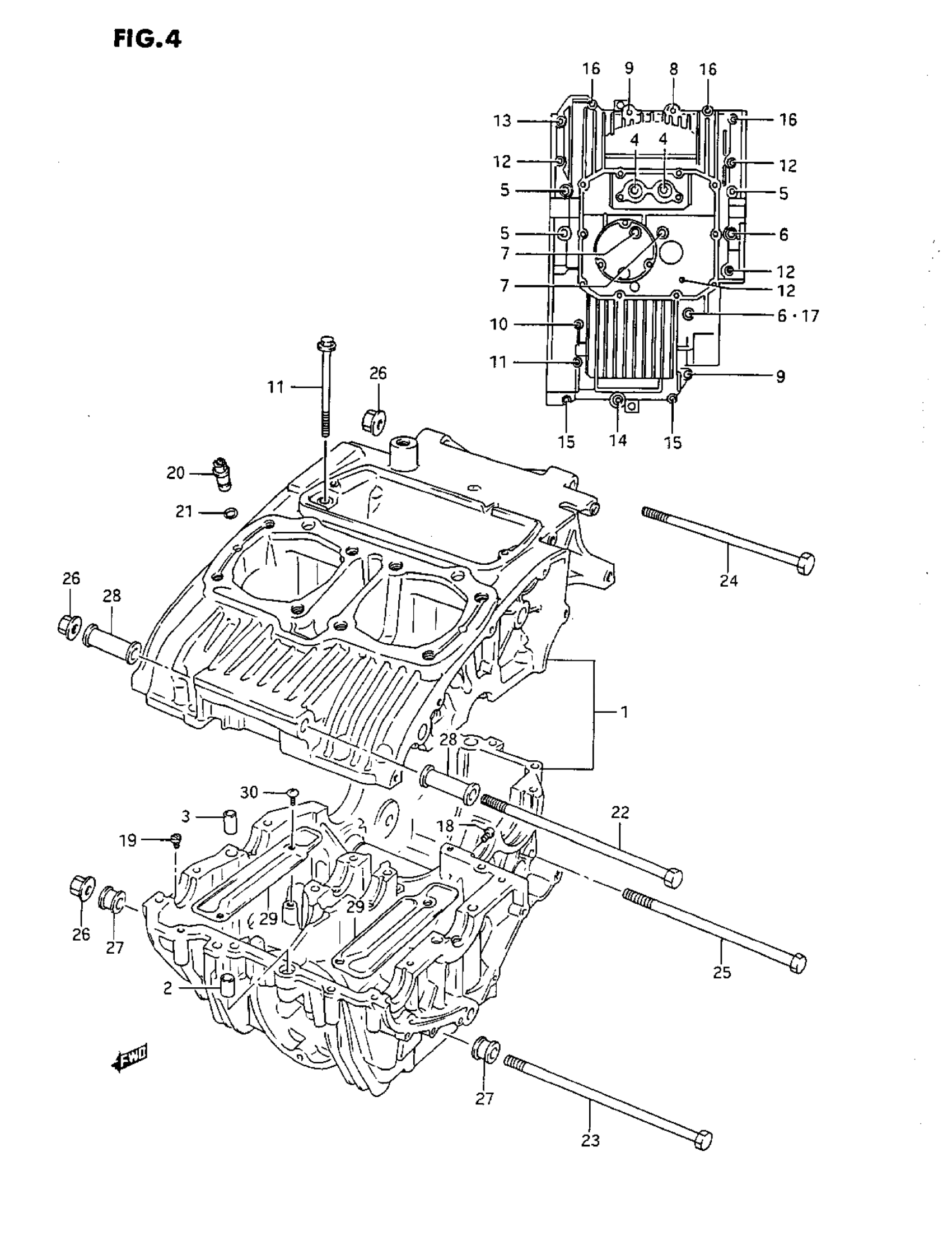

Suzuki GS500E (1993) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-44881

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT This part replaces 07130-08703.

07130-0870B

$5.37

5

BOLT (8X125)

09103-08182

$5.72

6

BOLT (8X110) This part replaces 09103-08024.

09103-08134

$3.40

7

BOLT (8X100)

09103-08070

$5.57

8

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

8

BOLT | MODEL K/L/M/N/P MODEL R This part replaces 01550-08653.

01550-0865A

$3.51

9

BOLT This part replaces 01517-08455.

01550-0845A

$3.14

9

BOLT | MODEL K/L/M/N/P This part replaces 01550-08453.

01550-0845A

$3.14

10

BOLT (6X125) | MODEL R

09103-06033

$3.91

11

BOLT (6X105)

09103-06067

$2.48

12

BOLT This part replaces 01517-06905.

01550-0690B

Unavailable

12

BOLT | MODEL K/L/M/N/P This part replaces 01550-06903.

01550-0690B

Unavailable

13

BOLT | MODEL R This part replaces 01517-06705.

01550-0670B

$4.25

13

BOLT | MODEL K/ L/M/N/P MODEL R This part replaces 01550-06703.

01550-0670B

$4.25

14

BOLT (6X65)

01517-06655

Unavailable

14

BOLT | MODEL K/L/M/N/P This part replaces 01550-06653.

01550-0665A

$3.16

15

BOLT (6X50) | MODEL R

01550-06507

$3.40

16

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

16

BOLT | MODEL K/L/M/N/P This part replaces 01550-06453.

01550-0645A

$2.41

17

GASKET (8.2X14X1) | MODEL R This part replaces 09168-08008.

09168-08016

$1.65

18

JET,AIR

09493-22010

Unavailable

19

JET, OIL GALY. BAL. SHAFT

09493-32002

$16.57

20

JET, OIL GALLERY CYLINDER

09493-24008

Unavailable

21

O-RING

09280-03003

$1.91

22

BOLT (10X255)

09103-10137

$14.18

23

BOLT (10X240)

09103-10212

Unavailable

24

BOLT (10X170)

09103-10127

$19.87

25

BOLT (10X160) This part replaces 09103-10150.

09103-10278

$12.40

26

NUT | MODEL K

08319-31107

$2.73

26

NUT | MODEL L/M/N/P/R

09159-10078

$2.96

27

SPACER (L:16.8) | MODEL K This part replaces 11610-01D00.

11611-01D10

$9.83

27

SPACER (L:16.8) | MODEL L/M/N/P/R

11611-01D10

$9.83

28

SPACER (L:65)

11610-45410

Unavailable

29

PLATE, OIL SEPARATOR

11521-44100

$2.92

30

SCREW This part replaces 02112-06103.

02112-0610B

$1.84
