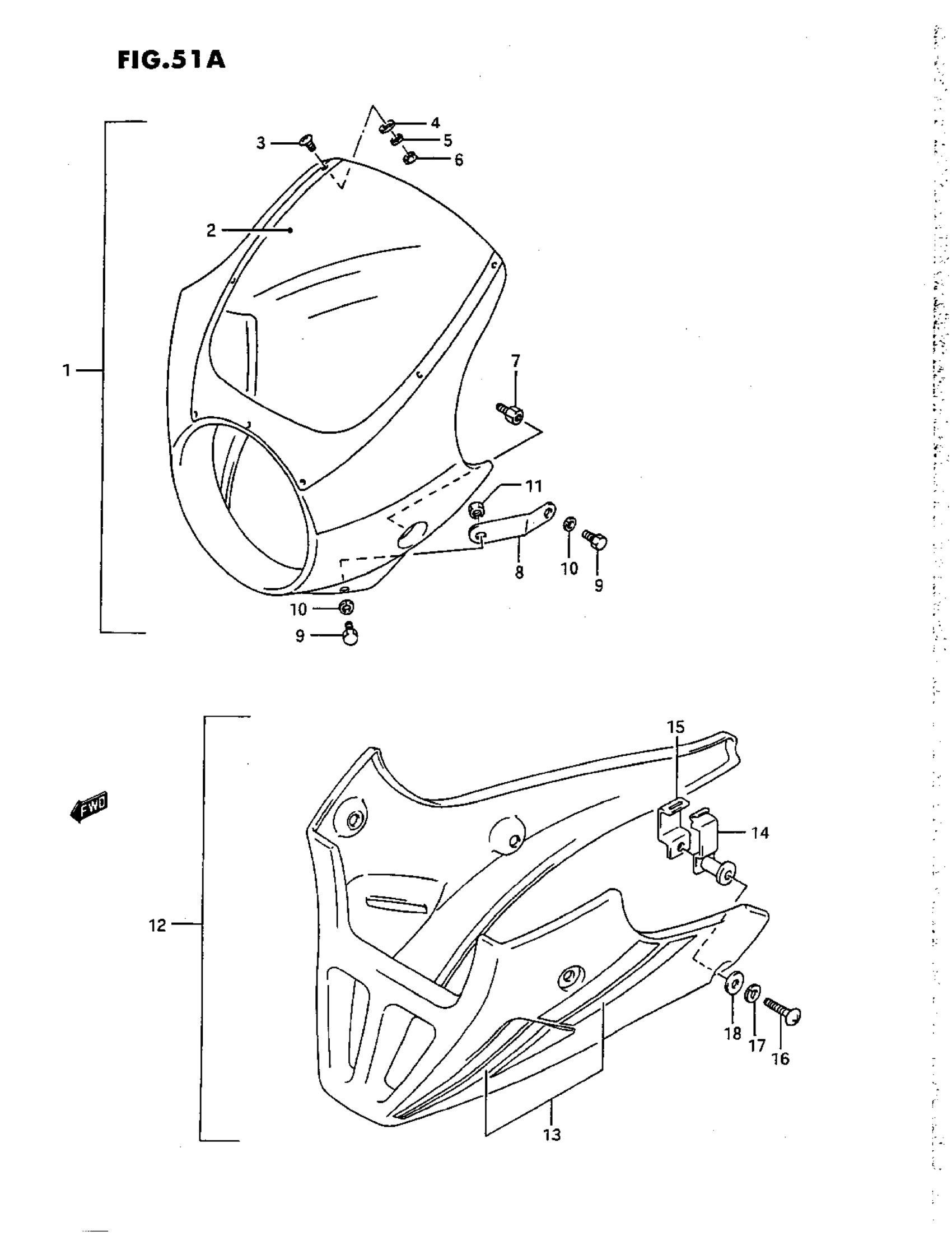

Suzuki GS500E (1993) COWLING (M/N/P/R OPTIONAL) Diagram

#

Description
Price

1

COWLING ASSY, UPPER (RED) | MODEL M/N/P

94402-01D60-28V

Unavailable

1

COWLING ASSY, UPPER (BLACK) | MODEL M/N/P

94402-01D60-33J

Unavailable

1

COWLING ASSY, UPPER (GREEN) | MODEL M

94402-01D60-0FL

Unavailable

1

COWLING ASSY, UPPER (BLUE) | MODEL M

94402-01D60-0ZK

Unavailable

1

COWLING ASSY, UPPER (PURPLE) | MODEL N/P

94402-01D60-1HU

Unavailable

1

COWLING ASSY, UPPER (PURPLE) | MODEL R

94402-01D60-1TU

Unavailable

1

COWLING ASSY, UPPER (RED) | MODEL R

94402-01D60-19A

Unavailable

2

SCREEN, WIND

94432-01D60

Unavailable

3

SCREW This part replaces 02142-04125.

02142-0412A

$1.50

4

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

5

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

6

NUT This part replaces 08310-11045.

08310-0004A

$2.30

7

BOLT, HEADLAMP

94741-01D60

Unavailable

8

BRACE, COWLING

94511-01D60

Unavailable

9

BOLT

01204-06167

$1.98

10

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

11

NUT This part replaces 08310-11065.

08310-0006A

$1.84

12

COWLING SET, UNDER (RED) | MODEL M This part replaces 94470-01860-28V.

94470-01820-28V

Unavailable

12

COWLING SET, UNDER (BLACK) | MODEL M

94470-01870-33J

Unavailable

12

COWLING SET, UNDER (GREEN) | MODEL M

94470-01880-0FL

Unavailable

12

COWLING SET, UNDER (BLUE) | MODEL M

94470-01890-0ZK

Unavailable

12

COWLING SET, UNDER (PURPLE) | MODEL N/P WITH OUT TAPE

94401-01810-1HU

Unavailable

12

COWLING SET, UNDER (RED) | MODEL N/P WITH OUT TAPE -94470-01860-28V This part replaces 94401-01810-28V.

94470-01820-28V

Unavailable

12

COWLING SET, UNDER (BLACK) | MODEL N/P WITH OUT TAPE 494470-01870-33J This part replaces 94401-01810-33J.

94470-01870-33J

Unavailable

12

COWLING SET, UNDER (PURPLE) | MODEL R

94401-01810-1TU

Unavailable

12

COWLING SET, UNDER (RED) | MODEL R

94401-01810-19A

Unavailable

13

TAPE SET | FOR 28V

68190-01D50-H05

Unavailable

13

TAPE SET | FOR 33J

68190-01D50-3VV

Unavailable

13

TAPE SET | FOR 0FL, 0ZK

68190-01D50-H06

Unavailable

14

BRACKET, OUTER

94580-01D50

Unavailable

15

BRACKET, INNER

94582-01D50

Unavailable

16

SCREW This part replaces 02142-06458.

02142-06457

$2.72

17

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

18

WASHER This part replaces 09160-06006.

09160-06084

$1.78
