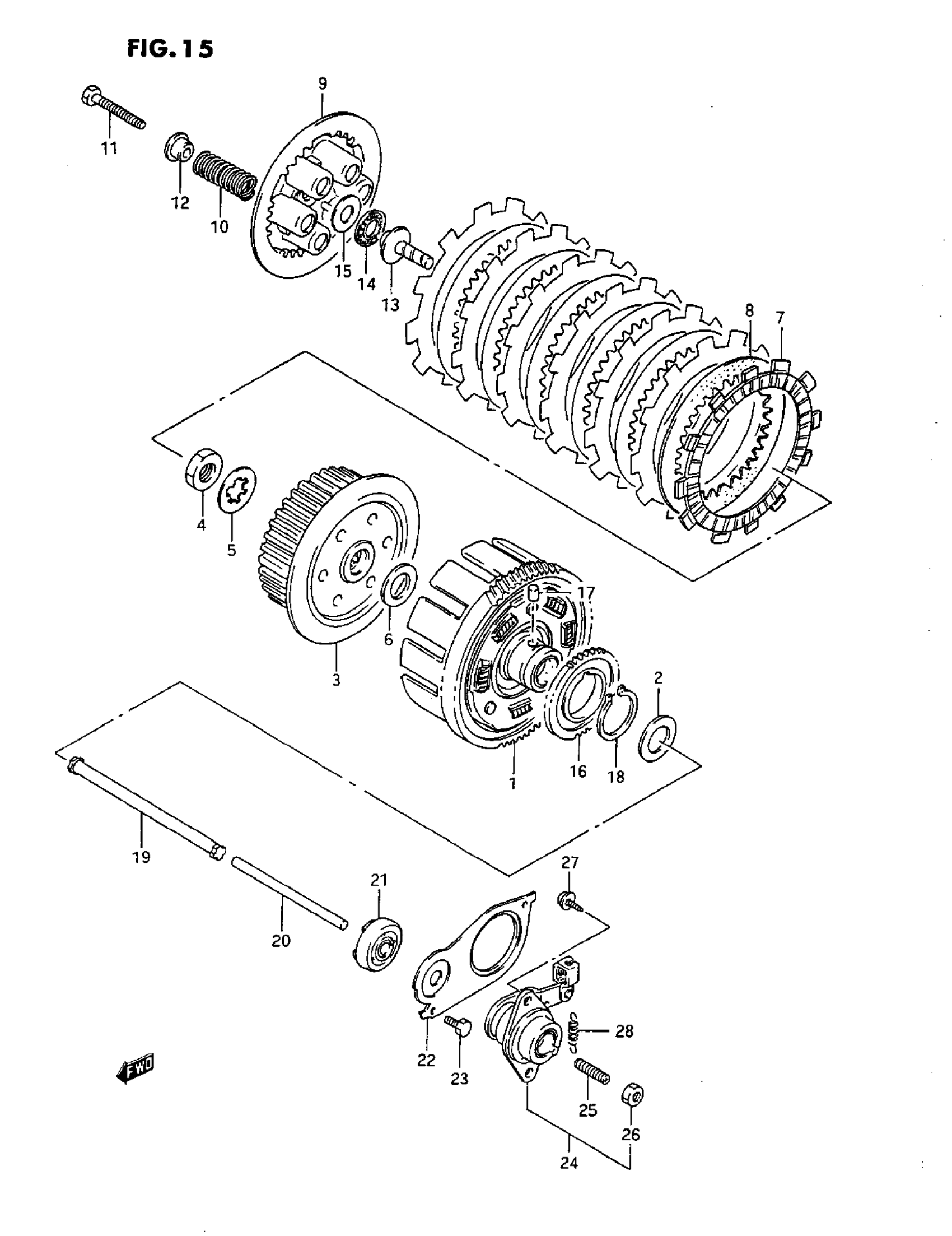

Suzuki GS500E (1993) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:76) This part replaces 21200-44101.

21200-44102

Unavailable

2

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

$3.21

3

HUB,CLUTCH SLEEVE

21411-44101

$73.22

4

NUT This part replaces 09140-20002.

09140-20001

$3.37

5

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

6

WASHER (2OX44X3)

09160-20015

$5.88

7

PLATE, DRIVE

21441-37400

$18.13

8

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

9

PLATE, PRESSURE This part replaces 21462-16501.

21462-14301

$59.33

10

SPRING

09440-20019

$8.18

11

BOLT

09100-06145

$2.30

12

SPACER

21414-01D00

$6.88

13

PIECE, PUSH

23121-44100

$25.75

14

BEARING (15X28X2)

09263-15003

$8.29

15

WASHER, CLUTCH PUSH | MODEL K/L/M/N This part replaces 09160-15015.

09160-15045

$3.89

15

WASHER (15X28X1) | MODEL P/R

09160-15045

$3.89

16

GEAR, OIL PUMP DRIVE (NT:39) | MODEL K/L This part replaces 16321-01D00.

16321-01D10

Unavailable

16

GEAR, OIL PUMP DRIVE (NT:39) | MODEL M/N/P/R

16321-01D10

Unavailable

17

PIN

09261-06002

$1.53

18

CLIP

08331-31383

$3.42

19

ROD,PUSH,R

23110-44111

$16.20

20

ROD, PUSH LH

23111-24A01

$13.30

21

OIL SEAL (6X34X7-10)

09285-06011

$8.24

22

HOLDER, OIL SEAL | MODEL K This part replaces 23117-44101.

23117-44102

$7.22

22

HOLDER, OIL SEAL | MODEL L/M/N/P/R

23117-44102

$7.22

23

BOLT | MODEL K/L/M/N This part replaces 01107-06127.

01500-06127

$1.97

23

BOLT | MODEL P/R This part replaces 01500-06123.

01500-0612A

$1.78

24

SCREW ASSY, RELEASE

23200-01D00

$94.45

25

SCREW

09134-06010

$3.12

26

.NUT This part replaces 08310-22067.

08310-00067

$2.13

27

SCREW | MODEL K/L/M/N This part replaces 03111-16168.

03141-0616A

$1.70

27

SCREW | MODEL P/R This part replaces 03141-06163.

03141-0616A

$1.70

28

SPRING

09443-08001

$2.92
