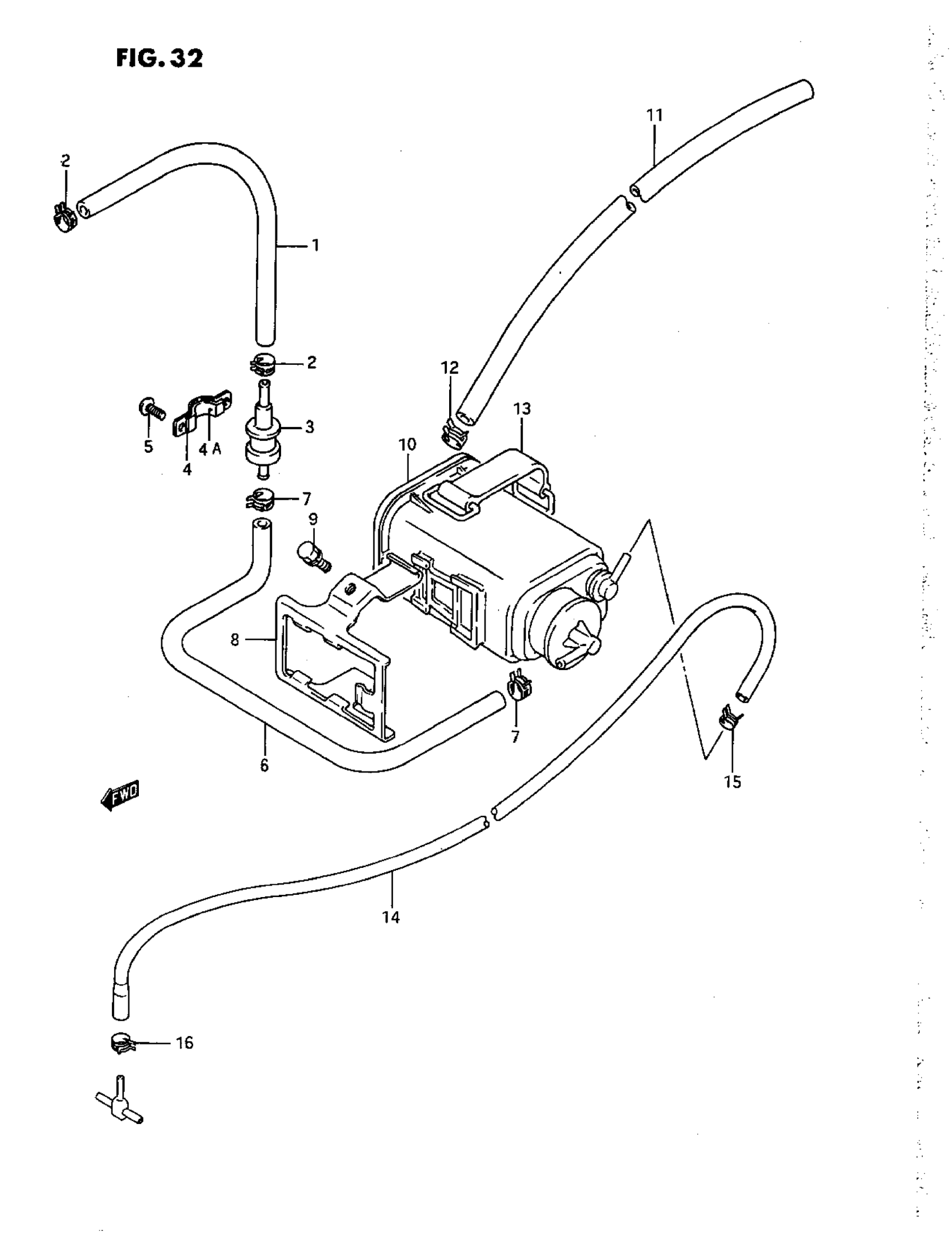

Suzuki GS500E (1993) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:600-400 This part replaces 09358-54116-600.

09355-54115-600

$14.59

2

CLIP This part replaces 09401-11410.

09401-11413

$2.26

3

VALVE, BREATHER

44240-38A00

$61.15

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

4

CUSHION (10X30X2)

44894-24A00

$1.72

5

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

6

HOSE, VALVE TO CANISTER

09343-05503

Unavailable

7

CLIP This part replaces 09401-11410.

09401-11413

$2.26

8

PLATE, CANISTER FITTING

44880-01D00

Unavailable

9

STOPPER, CL RLSE CAM SHAFT | MODEL K/L This part replaces 02142-06104.

02142-0610A

$1.49

9

BOLT | MODEL M/N/P This part replaces 01137-06105.

01570-0610A

Unavailable

9

BOLT | MODEL R This part replaces 01570-06103.

01570-0610A

Unavailable

10

CANISTER

17210-01D00

Unavailable

11

HOSE,6.5X11.5X6 This part replaces 09354-70123-300.

44421-12FR0

$12.33

12

CLIP This part replaces 09401-12406.

09401-11415

$2.23

13

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

14

HOSE, CANISTER TO CARBURETOR

09359-35751-400

Unavailable

15

CLIP, HOSE This part replaces 09401-06404.

09401-06405

$2.45

16

CLIP This part replaces 09401-08407.

09401-08411

$1.78
