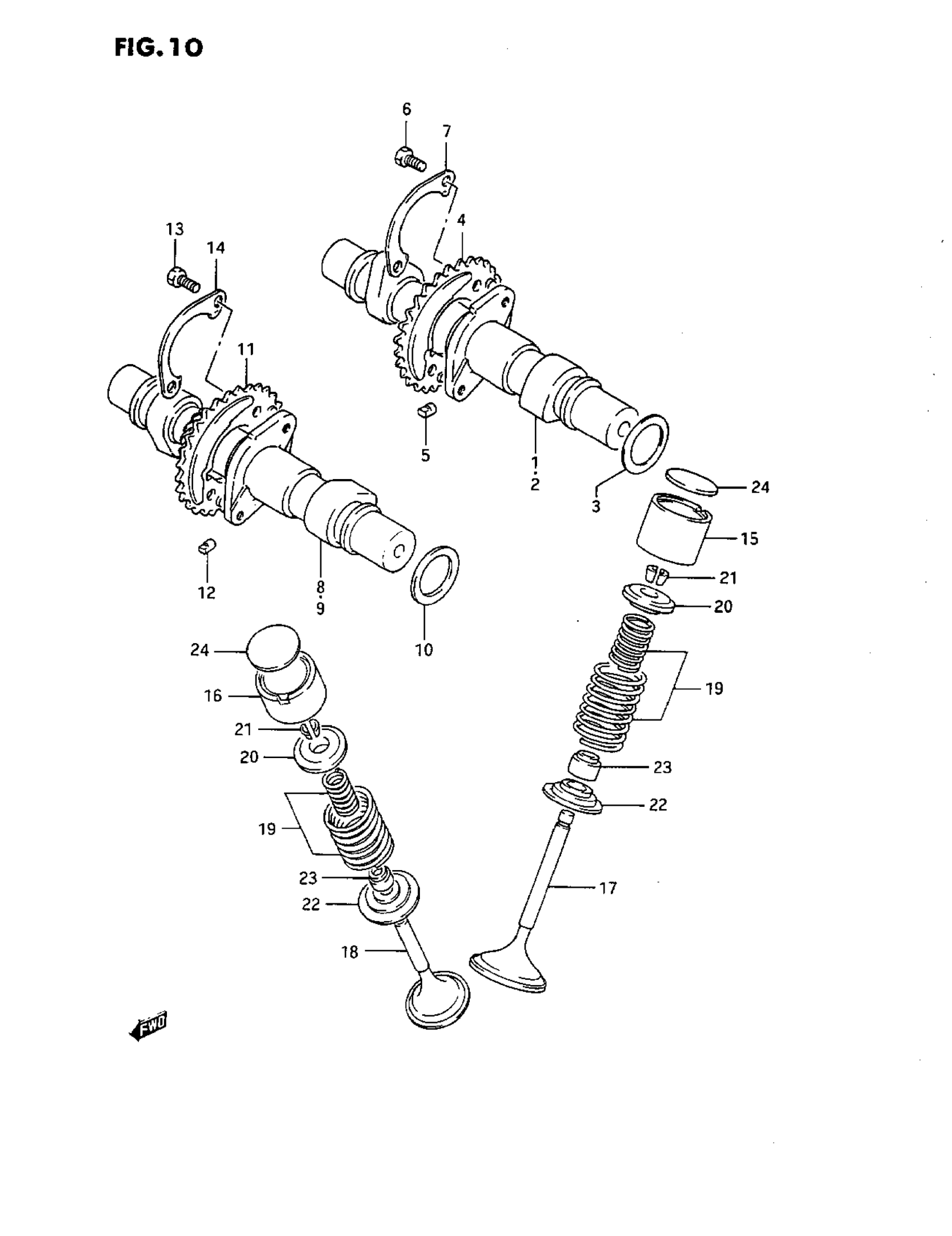

Suzuki GS500E (1993) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT SET, INTAKE | -E.NO.114496 This part replaces 12711-01D00.

12710-01810

Unavailable

2

CAM SHAFT SET, INTAKE | E.NO.114497-

12710-01810

Unavailable

3

WASHER, 6TH DRIVE | E.NO.114497- This part replaces 08211-22301.

09181-22167

$2.96

3

WASHER (T:1.1) | AR E.NO.114497-

09160-22074

Unavailable

3

WASHER (T:1.2) | AR E.NO.114497-

09160-22075

$7.15

3

WASHER (T:1.3) | AR E.NO.114497-

09160-22076

Unavailable

4

SPROCKET, INTAKE (NT:30)

12740-45042

Unavailable

5

PIN

12748-44000

Unavailable

6

BOLT

09111-06027

$1.72

7

WASHER This part replaces 12747-44000.

12747-44001

$2.50

8

CAM SHAFT SET, EXHAUST | E.NO.114496 This part replaces 12721-01D00.

12720-01810

$338.10

9

CAM SHAFT SET, EXHAUST | E.NO.114497-

12720-01810

$338.10

10

WASHER, 6TH DRIVE | E.NO.114497- This part replaces 08211-22301.

09181-22167

$2.96

10

WASHER (T:1.1) | AR E.NO.114497-

09160-22074

Unavailable

10

WASHER (T:12) | AR E.NO.114497-

09160-22075

$7.15

10

WASHER (T:13) | AR E.NO.114497-

09160-22076

Unavailable

11

SPROCKET, EXHAUST (NT:30)

12750-45041

Unavailable

12

PIN

12748-44000

Unavailable

13

BOLT

09111-06027

$1.72

14

WASHER This part replaces 12747-44000.

12747-44001

$2.50

15

TAPPET, INTAKE

12891-45001

$56.05

16

TAPPET, INTAKE This part replaces 12891-15500.

12891-15501

$56.05

17

VALVE, INTAKE

12911-01D00

$63.08

18

VALVE, EXHAUST

12912-01D00

$82.35

19

SPRING SET, VALVE

12920-44110

$16.87

20

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

21

COTTER, VALVE

12932-45010

$2.37

22

SEAT, SPRING

12933-45001

$6.27

23

OIL SEAL

09289-07002

$7.98

24

SHIM, TAPPET (T:2.15)

12892-45000-215

$21.65

24

SHIM, TAPPET (T:2.20)

12892-45000-220

$21.65

24

SHIM, TAPPET (T:2.25)

12892-45000-225

$21.65

24

SHIM, TAPPET (T:2.30)

12892-45000-230

$21.65

24

SHIM, TAPPET (T:2.35)

12892-45000-235

$21.65

24

SHIM, TAPPET (T:2.40)

12892-45000-240

$21.65

24

SHIM, TAPPET (T:2.45)

12892-45000-245

$20.88

24

SHIM, TAPPET (T:2.50)

12892-45000-250

$20.88

24

SHIM, TAPPET (T:2.55)

12892-45000-255

$20.88

24

SHIM, TAPPET (T:2.60)

12892-45000-260

$17.42

24

SHIM, TAPPET (T:2.65)

12892-45000-265

$17.75

24

SHIM, TAPPET (T:2.70)

12892-45000-270

$17.75

24

SHIM, TAPPET (T:2.75)

12892-45000-275

$21.65

24

SHIM, TAPPET (T:2.80)

12892-45000-280

$17.75

24

SHIM, TAPPET (T:2.85)

12892-45000-285

$21.65

24

SHIM, TAPPET (T:2.90)

12892-45000-290

$21.65

24

SHIM, TAPPET (T:2.95)

12892-45000-295

$21.65

24

SHIM, TAPPET (T:3.00)

12892-45000-300

Unavailable

24

SHIM, TAPPET (T:3.05)

12892-45000-305

$21.65

24

SHIM, TAPPET (T:3.10)

12892-45000-310

$21.65

24

SHIM SET | OPT NOT SHOWN

12800-45811

Unavailable

24

CASE, TAPPET SHIM | OPT NOT SHOWN This part replaces 99000-69480.

99000-69521

Unavailable
