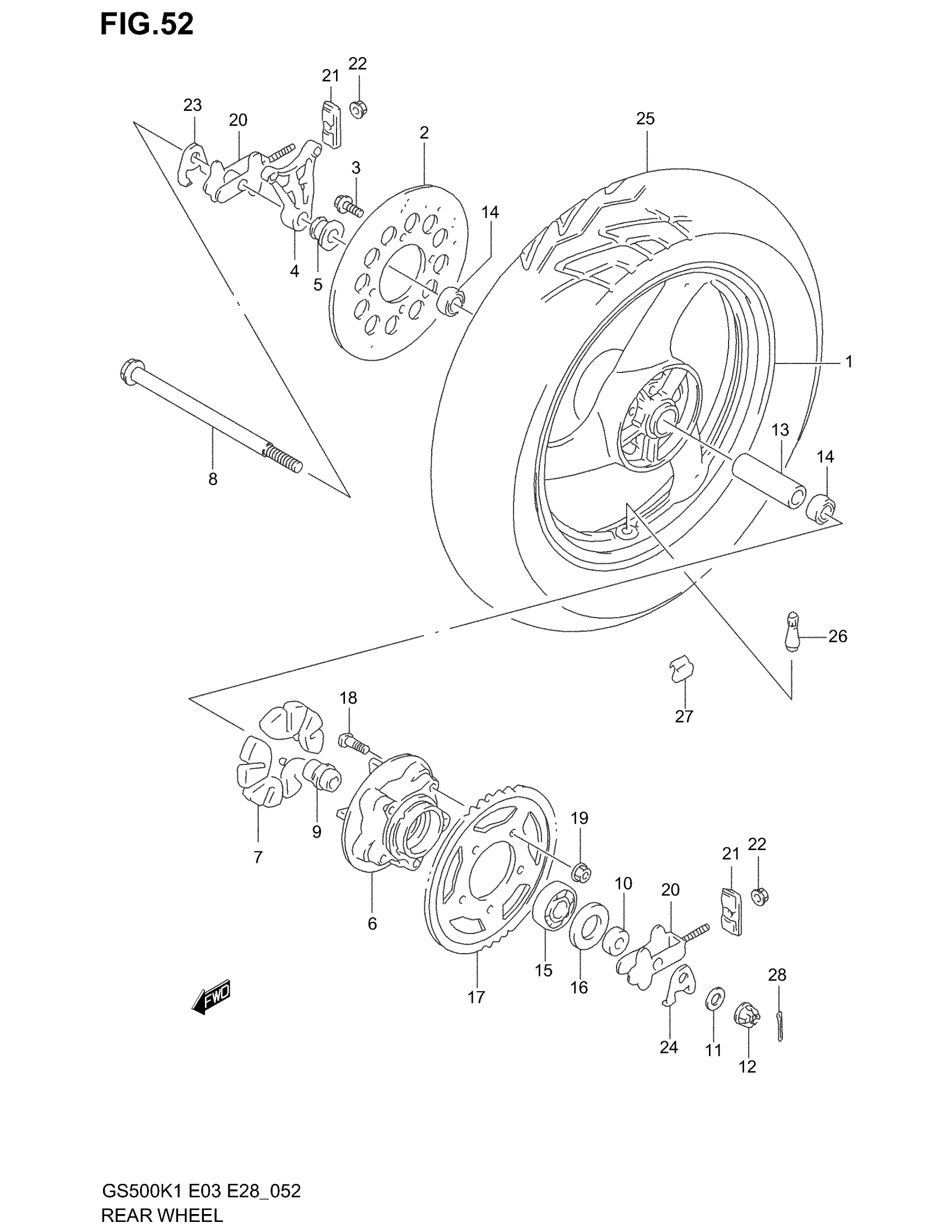

Suzuki GS500 (2002) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT3.50X17) (SILVER) | MODEL K1

64111-34C00-Y6G

Unavailable

1

WHEEL, REAR (BLACK) | MODEL K2 This part replaces 64111-34C00-291.

64111-34C01-291

Unavailable

2

DISC, REAR BRAKE (GOLD)

69211-01D00

Unavailable

3

BOLT (8X30)

09106-08131

$3.55

4

BRACKET, CALIPER (BLACK)

69721-43400

Unavailable

5

SPACER, REAR AXLE RH

64740-19C00

$22.22

6

DRUM, REAR SPROCKET

64611-01D00

Unavailable

7

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

8

AXLE, REAR

64711-01D20

Unavailable

9

RETAINER, DRUM

64733-01D00

$27.97

10

SPACER, REAR AXLE LH

64751-19C00

$15.42

11

WASHER

09160-17047

$5.00

12

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.79

13

SPACER, BEARING (17.5X25X88)

09180-17067

$23.05

14

BEARING

08143-63037

$22.58

15

BEARING (25X62X17)

09262-25073

$25.92

16

SEAL,OIL (35X62X8)

09285-35001

$10.19

17

SPROCKET, REAR (NT:39)

64511-01D04

$62.55

18

BOLT (10X38)

09119-10059

$3.12

19

NUT

08319-31107

$2.73

20

ADJUSTER, CHAIN

61410-01D00

$33.93

21

PLATE, GUIDE

61421-01D00

$10.17

22

NUT

08319-31087

$2.32

23

WASHER, CHAIN ADJUSTER RH

64712-19C01

$8.05

24

WASHER, CHAIN ADJUSTER LH

64712-01D00

$9.00

25

TIRE, REAR (130/70-17 62H) BRIDGESTONE

65110-01D00

Unavailable

26

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

27

BALANCER (10G)

55411-00A00

$1.49

27

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

28

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49
