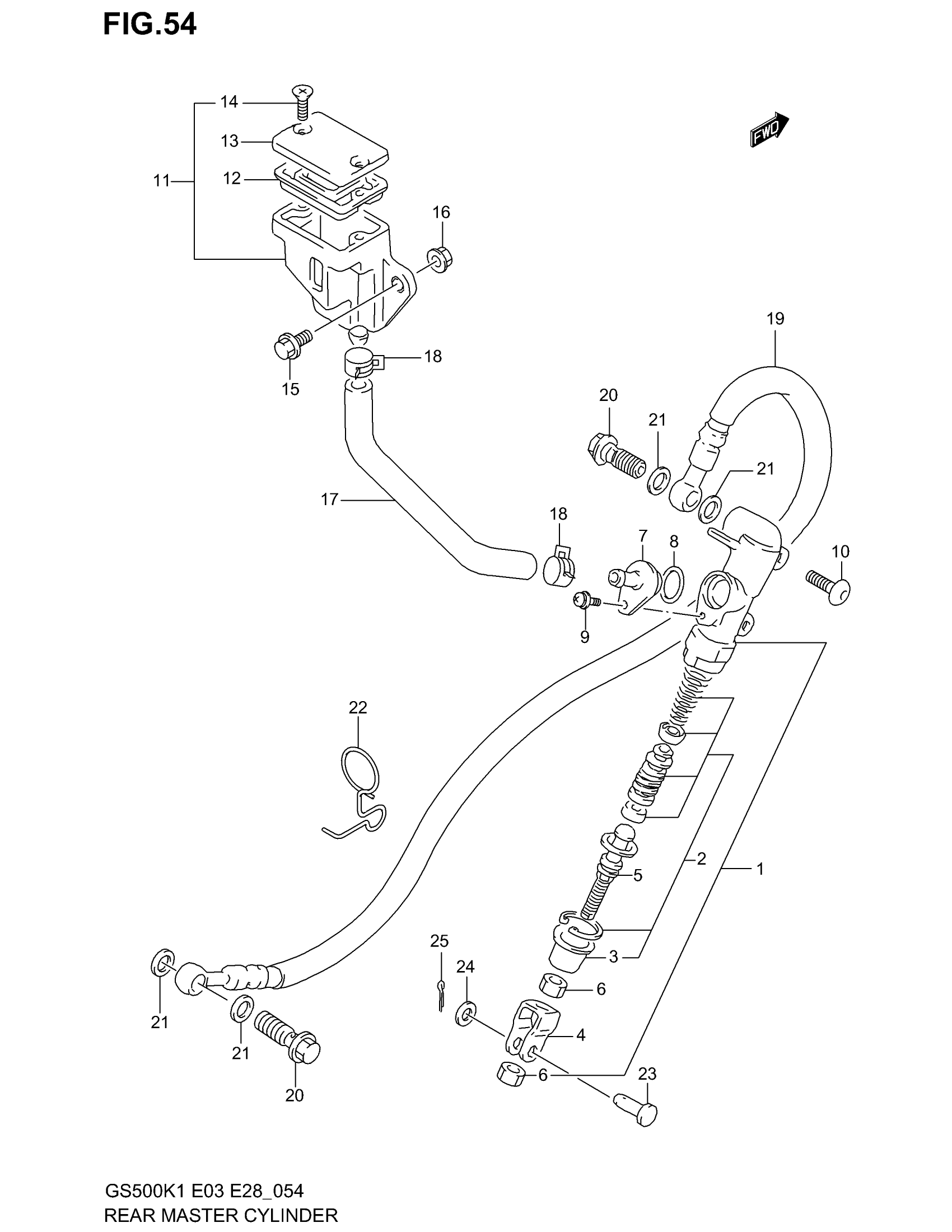

Suzuki GS500 (2002) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-01D00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-19A00

$16.87

5

ROD, PUSH

69670-01D00

Unavailable

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00A00

Unavailable

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.12

10

SCREW (6X25)

09139-06057

$2.80

11

TANK ASSY,RR RESERVOIR | Includes Item(s) 12 - 14

69740-01D02

$70.49

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

16

NUT This part replaces 08316-10063.

08316-1006B

$2.50

17

HOSE, RESERVOIR

69731-01D02

Unavailable

18

CLAMP

09401-13417

$2.26

19

HOSE, REAR BRAKE

69480-01D20

Unavailable

20

UNION This part replaces 09360-10041.

09360-10061

$6.43

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

GUIDE, BRAKE HOSE

69243-01D10

Unavailable

23

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

24

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
