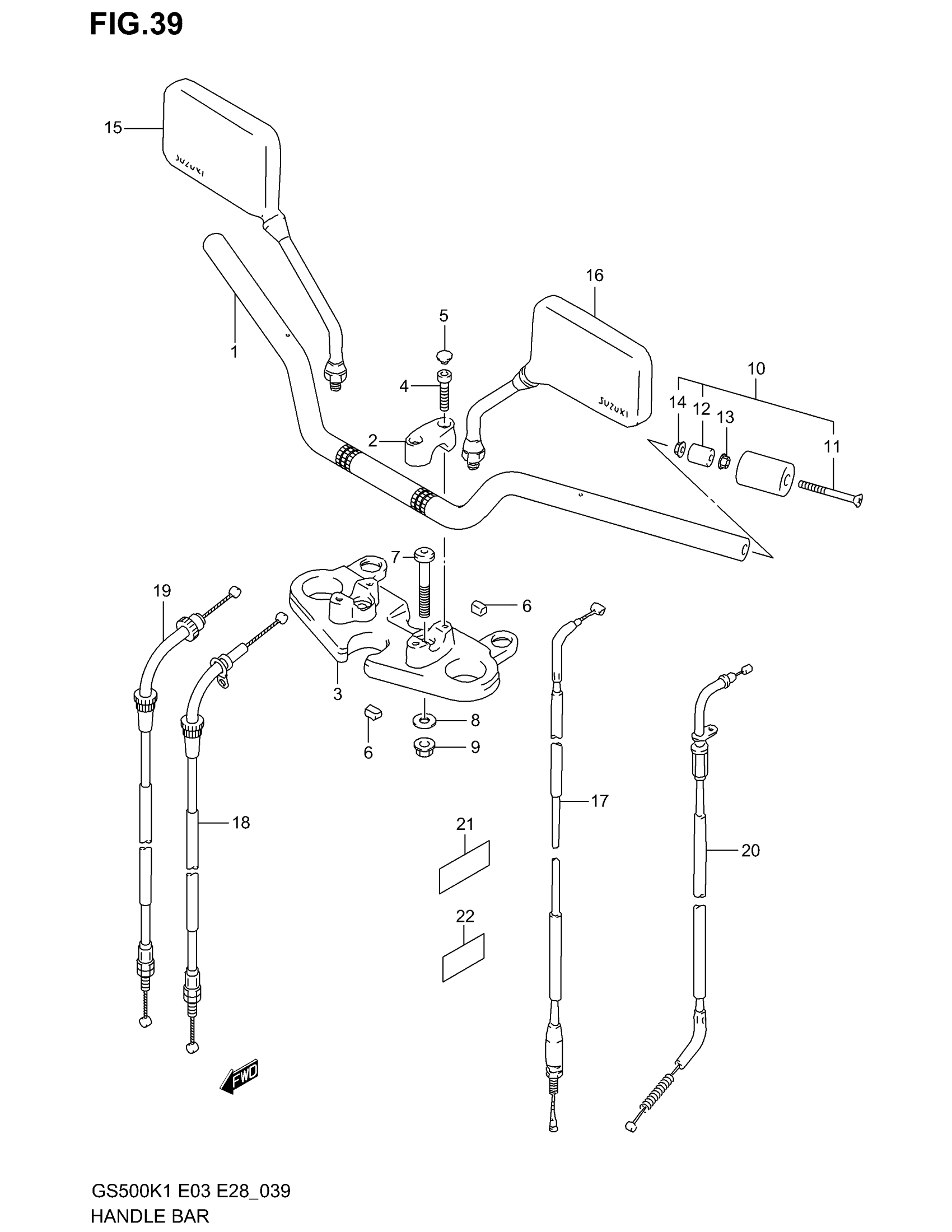

Suzuki GS500 (2002) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-01DA0

$183.03

2

CLAMP, UPPER (SILVER)

56211-31F00-0FP

Unavailable

3

HOLDER, LOWER (SILVER)

56221-01D50-0FP

Unavailable

4

BOLT

07130-08307

$3.89

5

CAP

09250-06011

$2.50

6

CUSHION, HOLDER

56241-01D00

Unavailable

7

BOLT This part replaces 07130-10653.

07130-1065B

$5.55

8

WASHER

09160-10094

$3.16

9

NUT

08319-31107

$2.73

10

BALANCER SET,HA | Includes Item(s) 11 - 14 This part replaces 56200-01840.

56200-01841

$56.93

11

SCREW This part replaces 02122-06853.

02122-0685B

$3.15

12

EXPANDER

56272-44500

$4.42

13

NUT This part replaces 08316-10083.

08316-1008B

$2.66

14

NUT, INNER

09159-06024

$2.11

15

MIRROR ASSY, REAR VIEW RH This part replaces 56500-03F30.

56500-03F31

$159.13

16

MIRROR ASSY, REAR VIEW LH This part replaces 56600-03F30.

56600-03F31

Unavailable

17

CABLE ASSY,CLUT This part replaces 58200-01DA0.

58200-01DA1

$22.33

18

CABLE ASSY, THROTTLE NO.1

58300-01DA0

$39.20

19

CABLE ASSY, THROTTLE NO.2

58300-01DB0

$36.40

20

CABLE, STARTER

58410-01D70

$41.83

21

PROTECTOR, CABLE

94474-22D00

Unavailable

22

PROTECTOR, CABLE

72895-78A30

Unavailable
