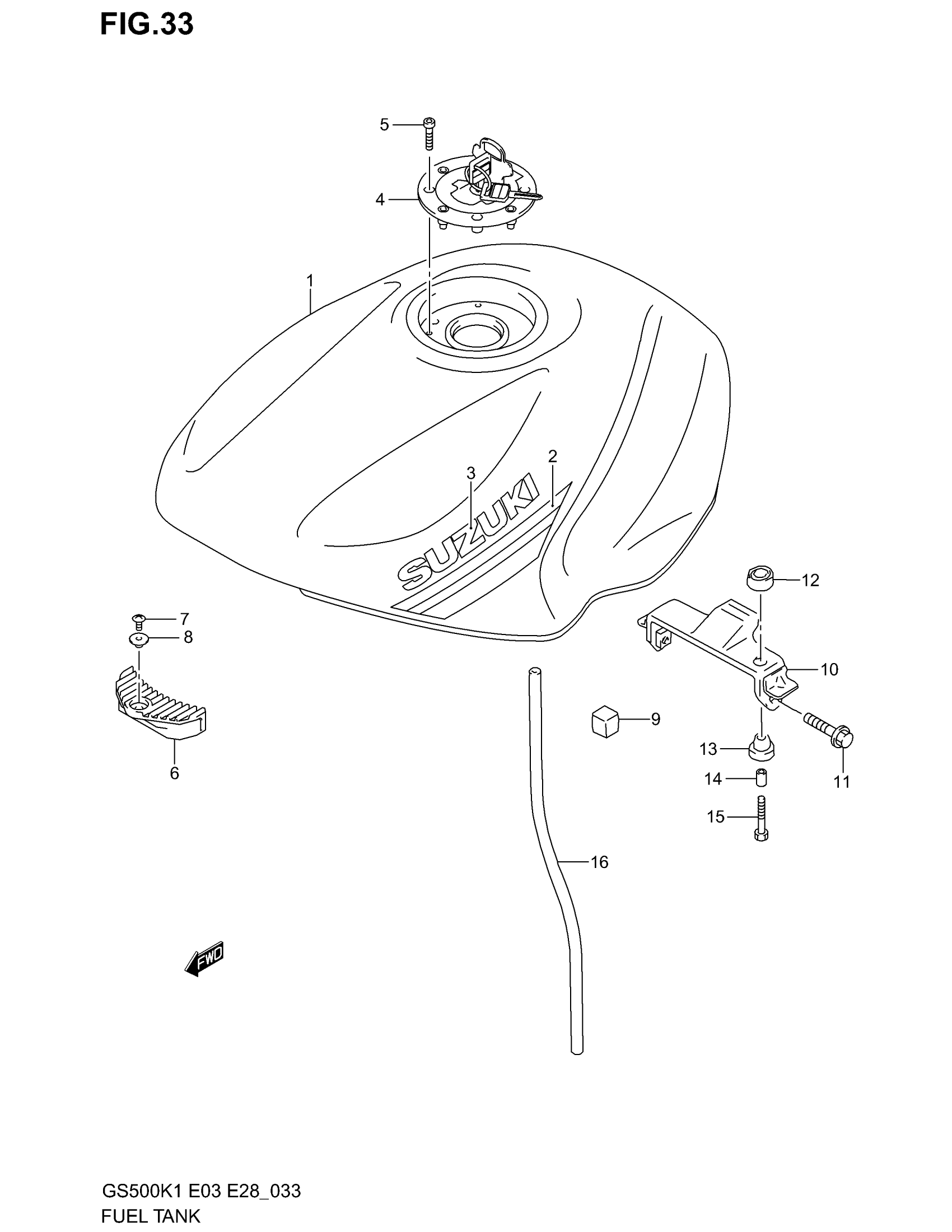

Suzuki GS500 (2002) FUEL TANK (MODEL K1) Diagram

#

Description
Price

1

TANK ASSY,FUEL | E3 This part replaces 44100-01DJ0-YM7.

44100-01DL0-YM7

Unavailable

1

TANK ASSY, FUEL (BLUE) | E28

44100-01DL0-YC2

Unavailable

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 3 This part replaces 44100-01DK0-YM7.

44100-01DM0-YM7

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR YM7 This part replaces 68110-01D70-FT7.

68110-01D90-FT7

Unavailable

2

TAPE SET, FUEL TANK | E28 FOR YC2

68110-01D90-FT5

Unavailable

3

EMBLEM, FUEL TANK (GRAY) This part replaces 68111-42E00-1ZY.

68111-42E20-1ZY

Unavailable

4

CAP SET,FUEL TA This part replaces 44201-33820.

44201-33822

$152.27

4

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

5

BOLT

09106-05017

$2.83

6

CUSHION, FRONT

44511-27E00

$12.48

7

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

8

WASHER

09169-05012

$2.38

9

CUSHION,FUEL TA This part replaces 44541-01D00.

44541-01D01

$5.19

10

BRACKET, REAR

44550-01D01

$48.38

11

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

12

CUSHION, REAR UPPER

09320-14017

$2.35

13

CUSHION, REAR LOWER

09320-10038

$2.61

14

SPACER

09180-06271

$2.35

15

BOLT

09116-06172

$2.50

16

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

$15.80
