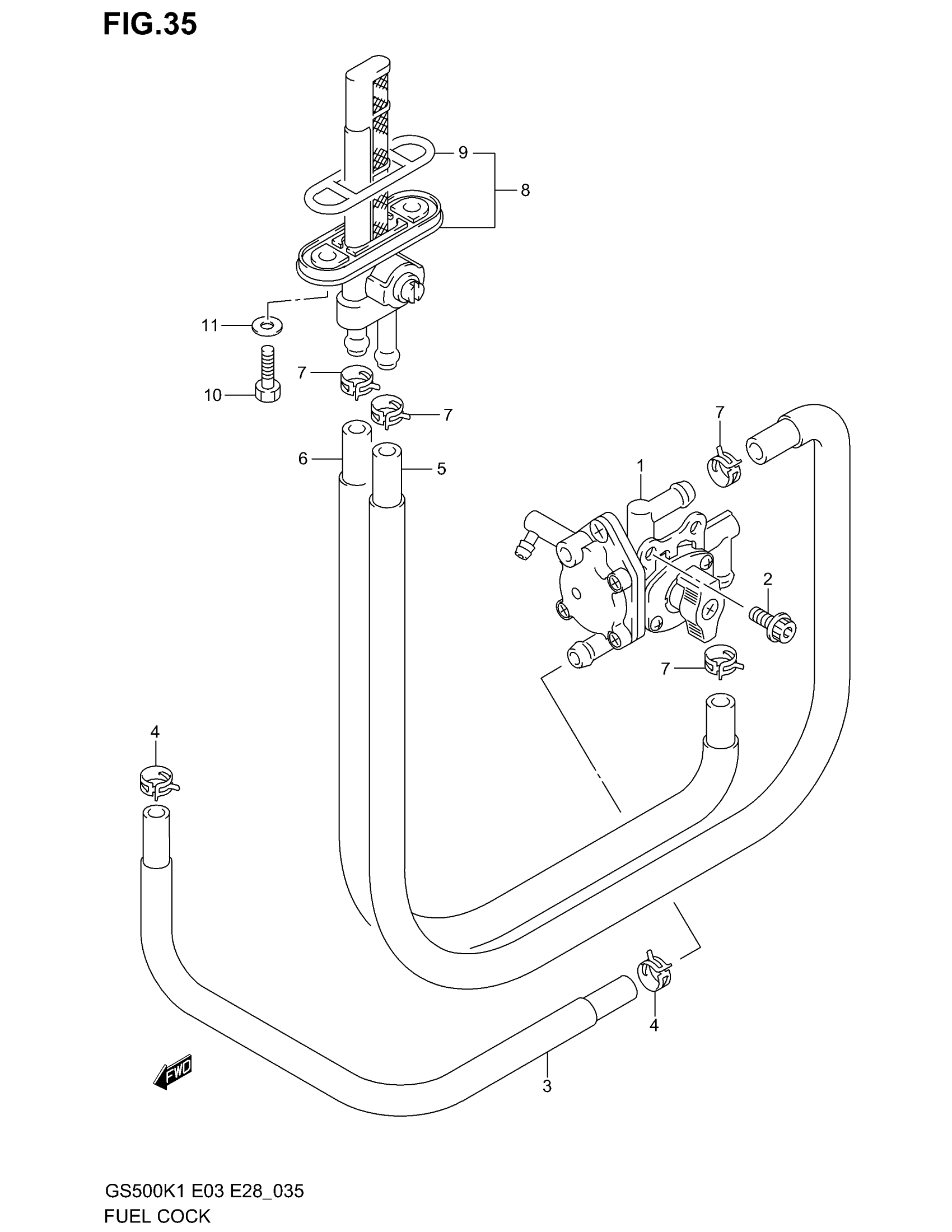

Suzuki GS500 (2002) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL This part replaces 44300-01D30.

44300-01D31

$143.20

2

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.45

3

HOSE, FUEL

44443-01D10

$28.08

4

CLIP This part replaces 09401-11407.

09401-11415

$2.23

5

HOSE,FUEL ON This part replaces 44442-01D20.

44442-01D21

$28.28

6

HOSE,FUEL RESER This part replaces 44441-01D20.

44441-01D21

$31.87

7

CLIP (ID:10.5,H:8)

09401-10409

$2.26

8

COCK ASSY,FUEL | Includes Item(s) 9 This part replaces 44300-01D10.

44300-01D11

$102.83

9

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

10

BOLT, FUEL COCK | MODEL K1 This part replaces 34826-03F00.

09128-06086

$2.50

10

BOLT | MODEL K2

09128-06086

$2.50

11

GASKET

09168-06026

$3.10
