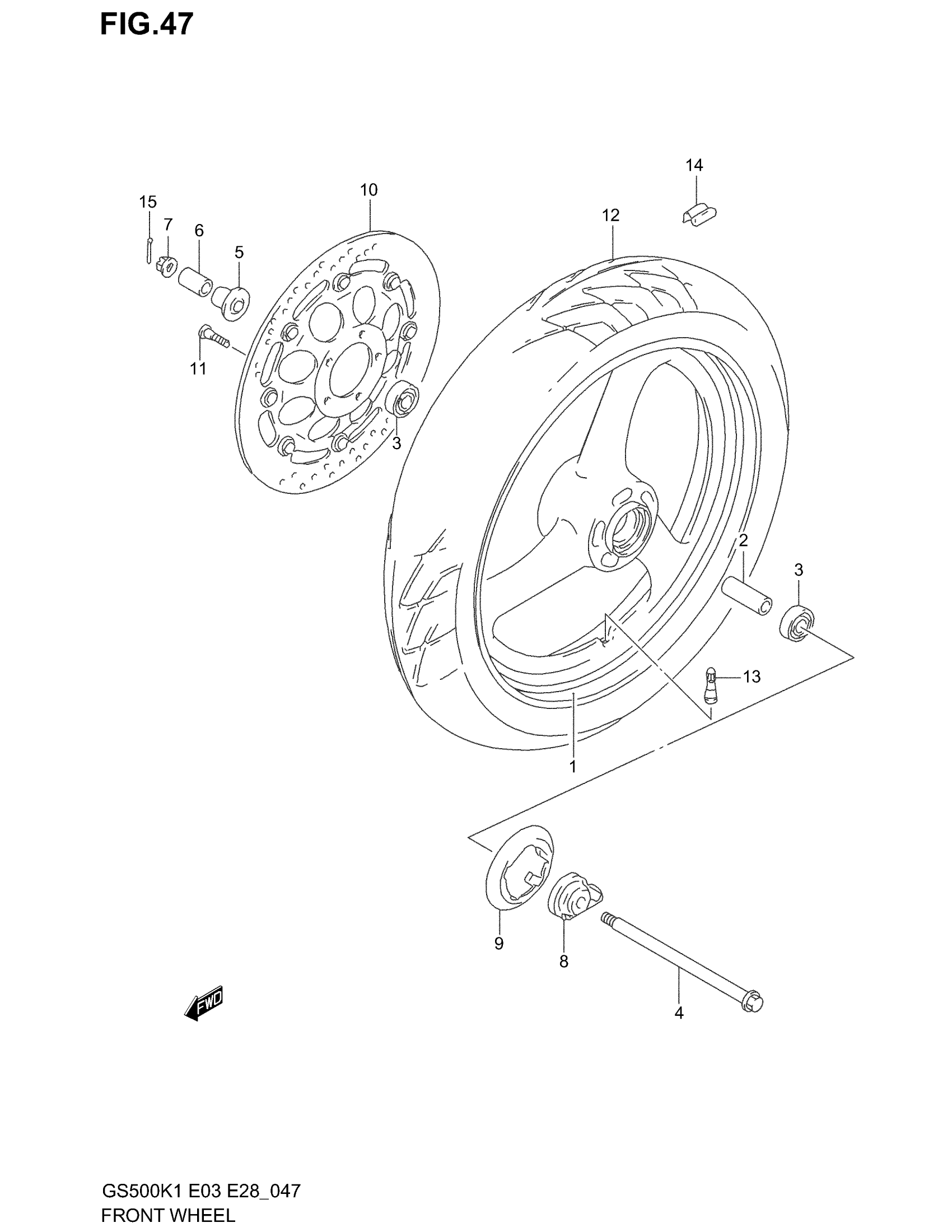

Suzuki GS500 (2002) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 54111-34C00-Y6G.

54111-34C01-Y6G

Unavailable

1

WHEEL, FRONT (MT3.00X17) (BLAC | MODEL K2 This part replaces 54111-34C00-291.

54111-34C01-291

Unavailable

2

SPACER (15.3X21.7X63)

09180-15011

$8.18

3

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

4

AXLE, FRONT

54711-01D00

$56.05

5

SPACER, FRONT AXLE RH

54740-33410

$19.15

6

SPACER, FRONT AXLE RH

54741-01D00

$15.42

7

NUT

09159-12027

$15.67

8

BOX ASSY, SPEEDOMETER GEAR

54600-01D01

Unavailable

9

COVER, FRONT HUB LH (BLACK) | MODEL K1 This part replaces 54871-38C00-0SR.

54871C38C00J291

Unavailable

9

COVER, FRONT HUB LH(BLACK) | MODEL K2

54871-38C00-019

Unavailable

10

DISC, FRONT BRAKE RH

59210-01D21

Unavailable

11

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

12

TIRE, FRONT,110/70-17 54H BRIDGESTONE

55110-01D00

Unavailable

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

14

BALANCER, WHEEL (10G)

55411-00A00

$1.49

14

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

15

PIN This part replaces 04111-30308.

04111-3030A

$1.49
