Description

Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-45C10

$291.88

2

PISTON/CUP SET

59600-04810

$45.20

3

DIAPHRAGM

59667-49460

$9.78

4

CAP

59669-41C00

$32.56

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-44300

$17.37

7

BOLT HOLDER SET

59675-19C00

$4.02

8

BOLT, UPPER

59675-19C10

$4.82

9

PROTECTOR

59664-48B00

$11.02

10

PLATE

59668-41C00

$9.32

11

HOSE, FRONT BRAKE

59480-01D70

Unavailable

12

UNION This part replaces 09360-10041.

09360-10061

$6.43

13

UNION This part replaces 09360-10042.

09360-10062

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

CLAMP, HOSE

59268-01D01

Unavailable

16

CLAMP, HOSE

59268-45D00

$11.30

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

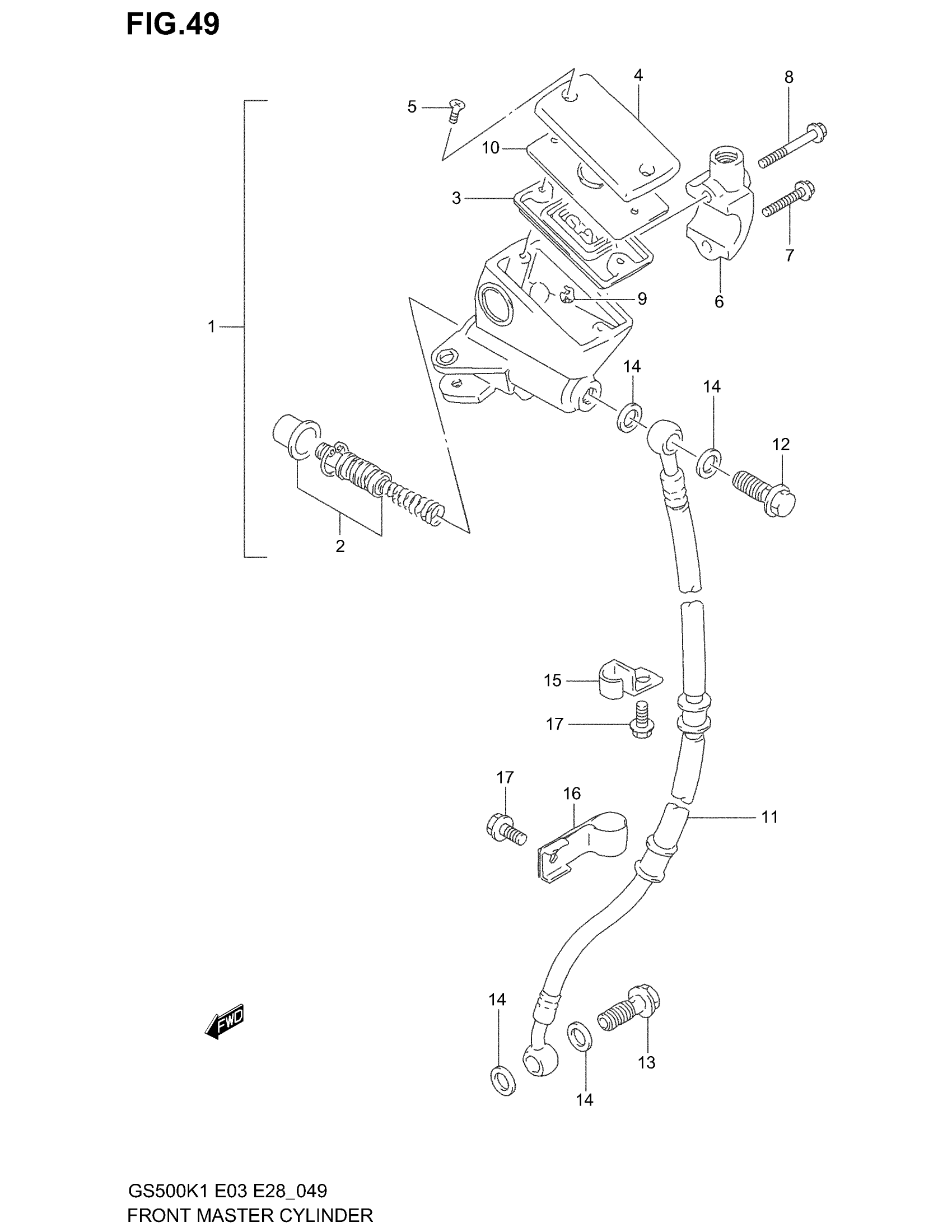

Suzuki GS500 (2002) FRONT MASTER CYLINDER Diagram

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

PISTON/CUP SET

DIAPHRAGM

CAP

SCREW

HOLDER

BOLT HOLDER SET

BOLT, UPPER

PROTECTOR

PLATE

HOSE, FRONT BRAKE

UNION This part replaces 09360-10041.

UNION This part replaces 09360-10042.

WASHER (10X15X1.5)

CLAMP, HOSE

CLAMP, HOSE

BOLT, CLAMP This part replaces 01550-06123.
