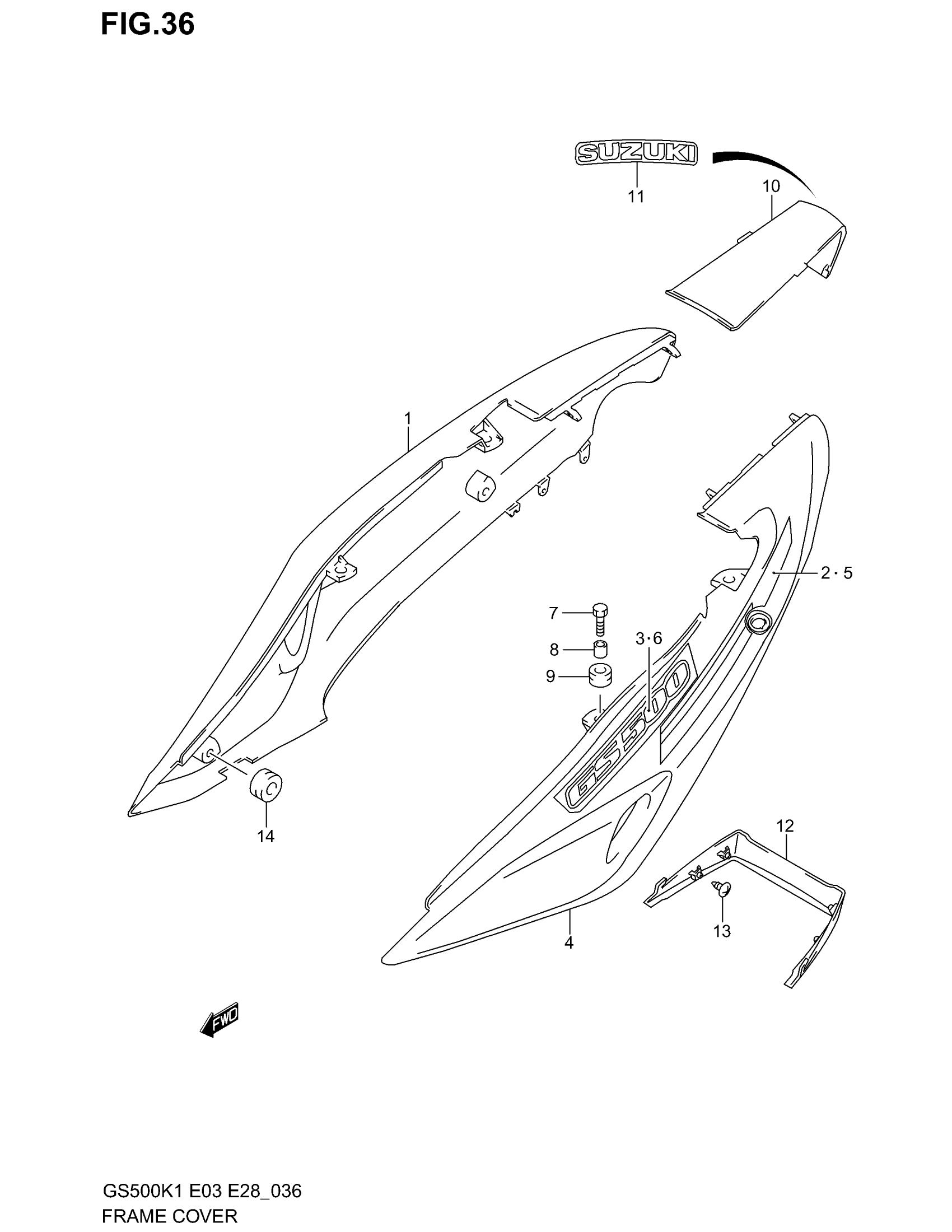

Suzuki GS500 (2002) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE) | E3 E33

47110-01DJ0-YM7

Unavailable

1

COVER, FRAME RH (BLUE) | E28; Includes Item(s) 2 - 3

47110-01DJ0-YC2

Unavailable

2

TAPE, RH | E3 E33

68135-01D50-FT7

Unavailable

2

TAPE, | E28

68135-01D50-FT5

Unavailable

3

EMBLEM

68131-01D40-FN3

Unavailable

4

COVER, FRAME LH (BLUE) | E3 E33

47210-01DJ0-YM7

Unavailable

4

COVER, FRAME LH (BLUE) | E28; Includes Item(s) 5 - 6

47210-01DJO-YC2

Unavailable

5

TAPE,LH | E3 E33

68145-01D50-FT7

Unavailable

5

TAPE, | E28

68145-01D50-FT5

Unavailable

6

EMBLEM

68131-01D40-FN3

Unavailable

7

BOLT

09116-06010

$2.19

8

SPACER

09180-06263

$2.03

9

CUSHION

09320-09016

$1.97

10

COVER, CENTER (BLUE) | E3 E33

47310-01D50-YM7

Unavailable

10

COVER, CENTER (BLUE) | E28; Includes Item(s) 11 - 11

47310-01D50-YC2

Unavailable

11

EMBLEM, "SUZUKI" (GRAY) | E3 E33

68165-01D00-1ZY

Unavailable

11

EMBLEM, "SUZUKI" (SILVER) | E28

68165-01D00-YD8

Unavailable

12

COVER, LOWER This part replaces 47321-01DA0.

47321-01DA0-NE2

$113.15

13

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

14

CUSHION

09320-08018

$3.04
