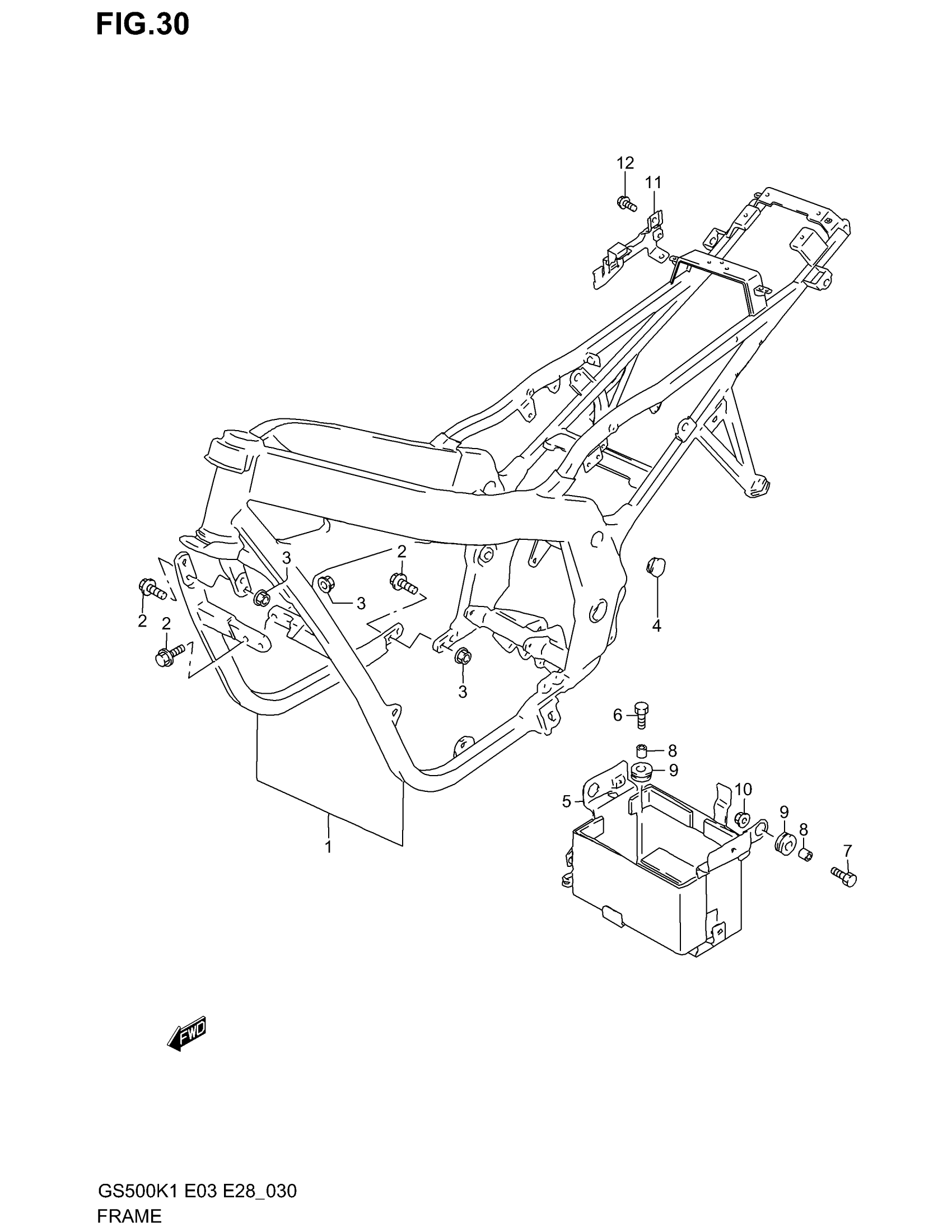

Suzuki GS500 (2002) FRAME Diagram

#

Description
Price

1

FRAME SET (SILVER) | *SEE NOTE; Includes Item(s) 2 - 3

41102-01880-13L

Unavailable

2

BOLT

09103-10334

Unavailable

3

NUT

08319-31107

$2.73

4

CAP, BODY

43585-01D00

$6.88

5

HOLDER, BATTERY

41540-01D31

Unavailable

6

BOLT, LOWER

09116-06167

$2.19

7

BOLT, UPPER

09116-06168

$2.50

8

SPACER (6.1X9X7.5)

09180-06038

$1.98

9

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

10

NUT This part replaces 08313-20063.

08313-2006A

$1.97

11

HOLDER, ELECTRIC PARTS

47410-01D10

Unavailable

12

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
