Description

Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 4

31800-01D00

$119.28

2

TERMINAL, RELAY

31841-01D00

Unavailable

3

HOLDER, RELAY

31892-07D00

$15.00

4

FUSE, (20A)

09481-20101

$2.12

5

NUT This part replaces 08361-35068.

08361-3506A

$1.80

6

WIRE, STARTER MOTOR LEAD | Includes Item(s) 7 - 8

33810-01DA0

$51.32

7

CAP, BATTERY PLUS

33624-01D10

Unavailable

8

CAP, STARTER MOTOR

31861-48B10

$6.55

9

RECTIFIER ASSY This part replaces 32800-33C00.

32800-33C01

$343.93

10

BOLT This part replaces 02162-06203.

02162-0620C

$1.71

11

COIL ASSY, IGNITION

33410-01D00

$181.73

12

BOLT This part replaces 01500-06403.

01500-0640B

$2.62

13

SPACER (6.2X12X16)

09180-06198

$4.32

14

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

15

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

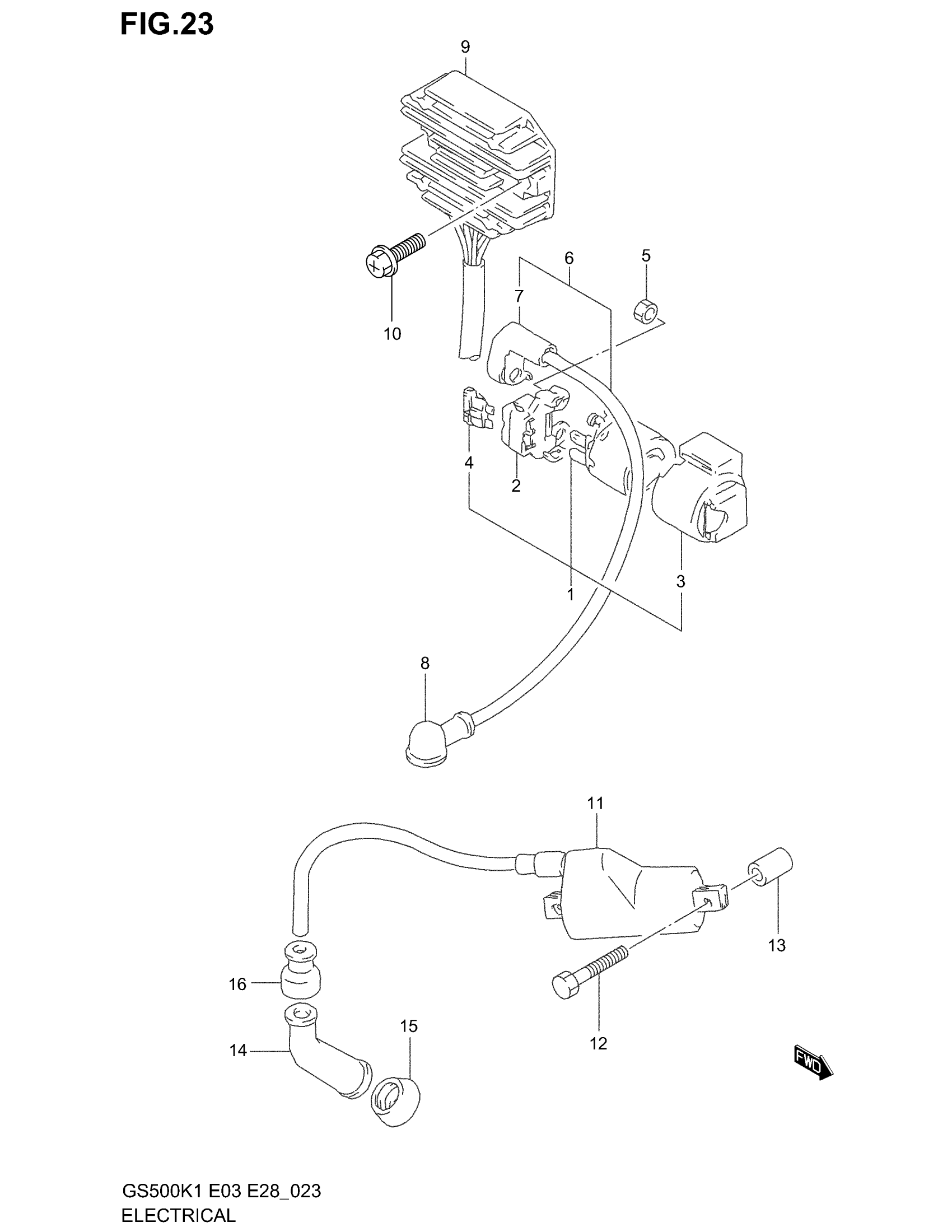

Suzuki GS500 (2002) ELECTRICAL Diagram
