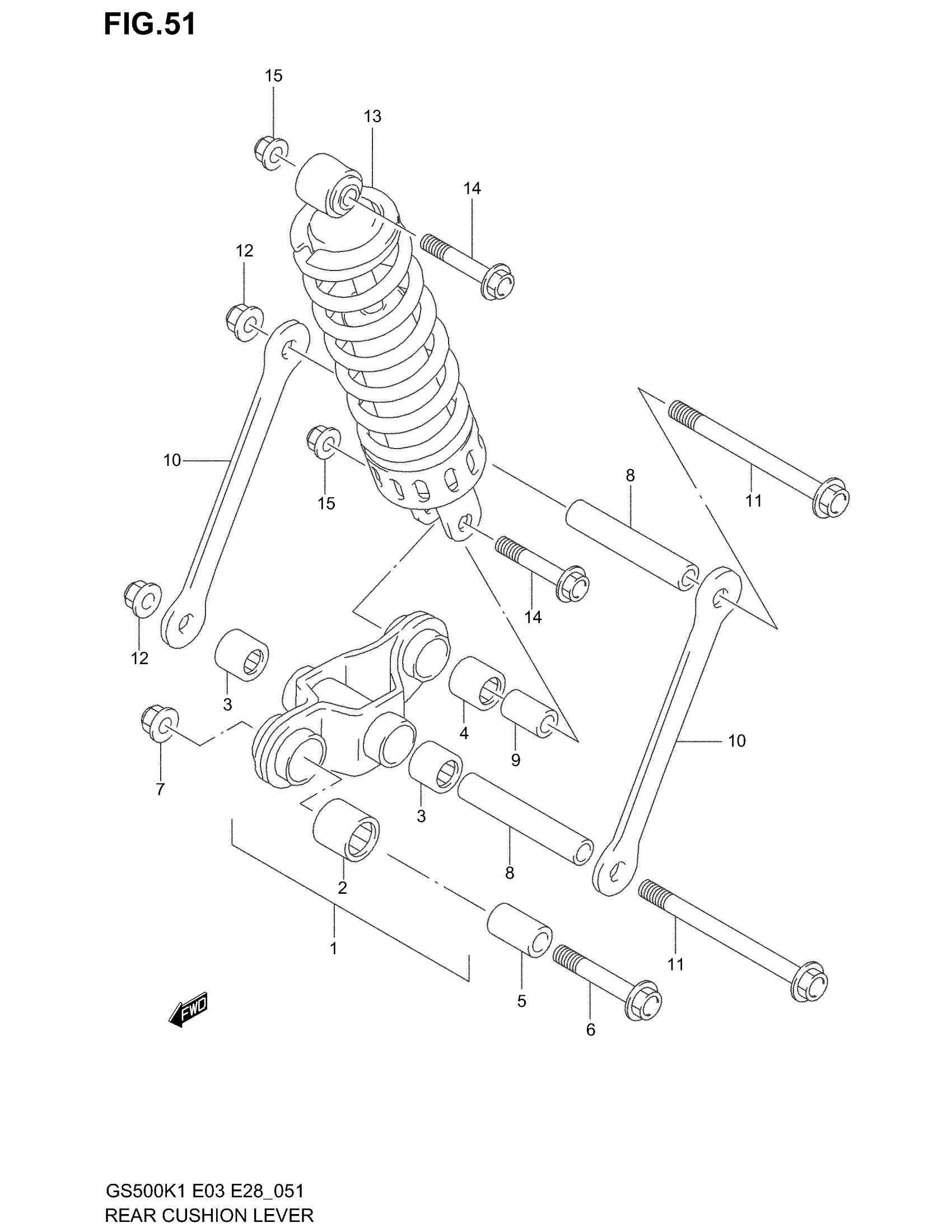

Suzuki GS500 (2002) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62601-01821

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, FRONT (12X20X30)

62684-01D00

$19.37

6

BOLT, FRONT (12X57)

09103-12042

$8.50

7

NUT This part replaces 08319-31128.

08319-3112A

$3.76

8

SPACER, CENTER (12X17X89)

09180-12125

$26.48

9

SPACER, REAR (10X17X30)

62684-40A10

$12.15

10

ROD, REAR CUSHION

62641-01D02

$27.97

11

BOLT, CENTER (12X118)

09103-12041

$14.73

12

NUT This part replaces 08319-31128.

08319-3112A

$3.76

13

ABSORBER ASSY,R This part replaces 62100-01D20.

62100-01D22

$429.03

14

BOLT (10X52)

09103-10213

$5.77

15

NUT

08319-31107

$2.73
