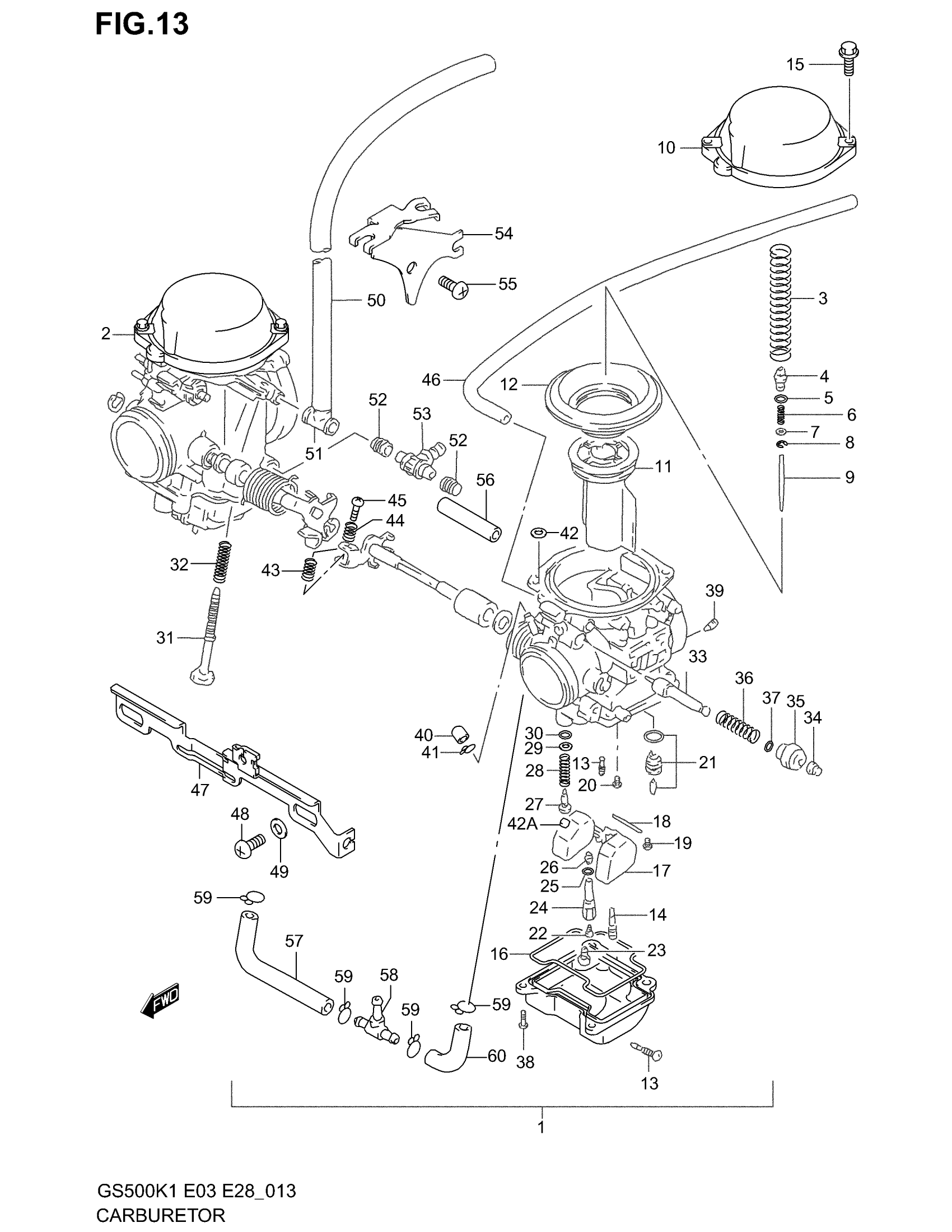

Suzuki GS500 (2002) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-01DH0

Unavailable

1

CARBURETOR ASSY, LH | E33

13201-01DJ0

Unavailable

2

CARBURETOR ASSY, RH

13202-01DH0

Unavailable

2

CARBURETOR ASSY, RH | E33; Includes Item(s) 3 - 42A

13202-01DJ0

Unavailable

3

SPRING

13573-19E00

$8.43

4

HOLDER

13418-33E00

$5.68

5

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

6

SPRING

13481-13F00

$3.71

7

WASHER

13382-19E00

$3.56

8

E RING

13387-13F00

$8.17

9

NEEDLE, JET (5DH42-1)

13383-01DH0

Unavailable

10

COVER, DIAPHRAGM

13502-07F00

$50.37

11

VALVE, PISTON

13501-29FA0

$72.47

12

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

13

SCREW, DRAIN

13247-02340

$4.99

14

JET, PILOT

09492-17016

$17.25

15

SCREW

02112-04107

$1.55

16

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

17

FLOAT ASSY

13250-04F00

$34.73

18

.PIN, FLOAT

13254-01010

$3.62

19

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

20

SCREW

13602-05A10

$3.56

21

VALVE ASSY,NEED This part replaces 13370-33E80.

13370-33E81

$55.10

22

JET, MAIN (127.5)

09491-25018

$14.76

23

JET, MAIN (60)

09491-60010

$14.54

24

HOLDER, JET

13385-07F00

$35.45

25

.O RING This part replaces 13246-43010.

13246-43011

$4.34

26

JET, NEEDLE (P-5M)

09494-00949

Unavailable

27

SCREW, PILOT (2 1/2)

13279-33E00

$12.48

28

.SPRING (NT:45)

13268-47070

$4.34

29

WASHER

13291-29900

$1.98

30

O-RING This part replaces 13295-29900.

13295-29901

$4.34

31

ADJUSTER | RH

13267-13F00

$15.25

32

SPRING | RH

13271-33C00

$6.03

33

PLUNGER ASSY

13411-05300

$24.17

34

.CAP, STARTER VALVE

13682-31210

$4.37

35

.HOLDER, GUIDE

13418-44080

$10.00

36

SPRING

13417-26D00

$6.08

37

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

38

SCREW

13247-33E00

$2.92

39

JET, AIR (160)

09493-32007

$16.87

40

CAP

13274-84000

$3.82

41

CLIP

09401-06101

$2.03

42

O RING

13295-33010

$4.48

42A

PLUG

13281-05A00

$4.60

43

SPRING

13268-96111

$4.35

44

SPRING

13271-44B00

$3.89

45

SCREW

13267-44B00

$4.10

46

HOSE

13683-01DF0

Unavailable

47

PLATE

13413-01DE0

Unavailable

48

SCREW

13602-04F00

$4.33

49

PACKING

13557-33E00

$3.47

50

HOSE

13683-01DE0

Unavailable

51

HOSE

13683-01DB0

$13.63

52

SEAL

13673-44B00

$4.60

53

NIPPLE

13685-33EQ0

$23.85

54

BRACKET

13565-01DE0

Unavailable

55

SCREW This part replaces 02122-05103.

02122-0510A

Unavailable

56

PIPE

13685-01DB0

Unavailable

57

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$15.96

58

.NIPPLE | E33

13685-48B00

$12.15

59

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49

60

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$15.96
