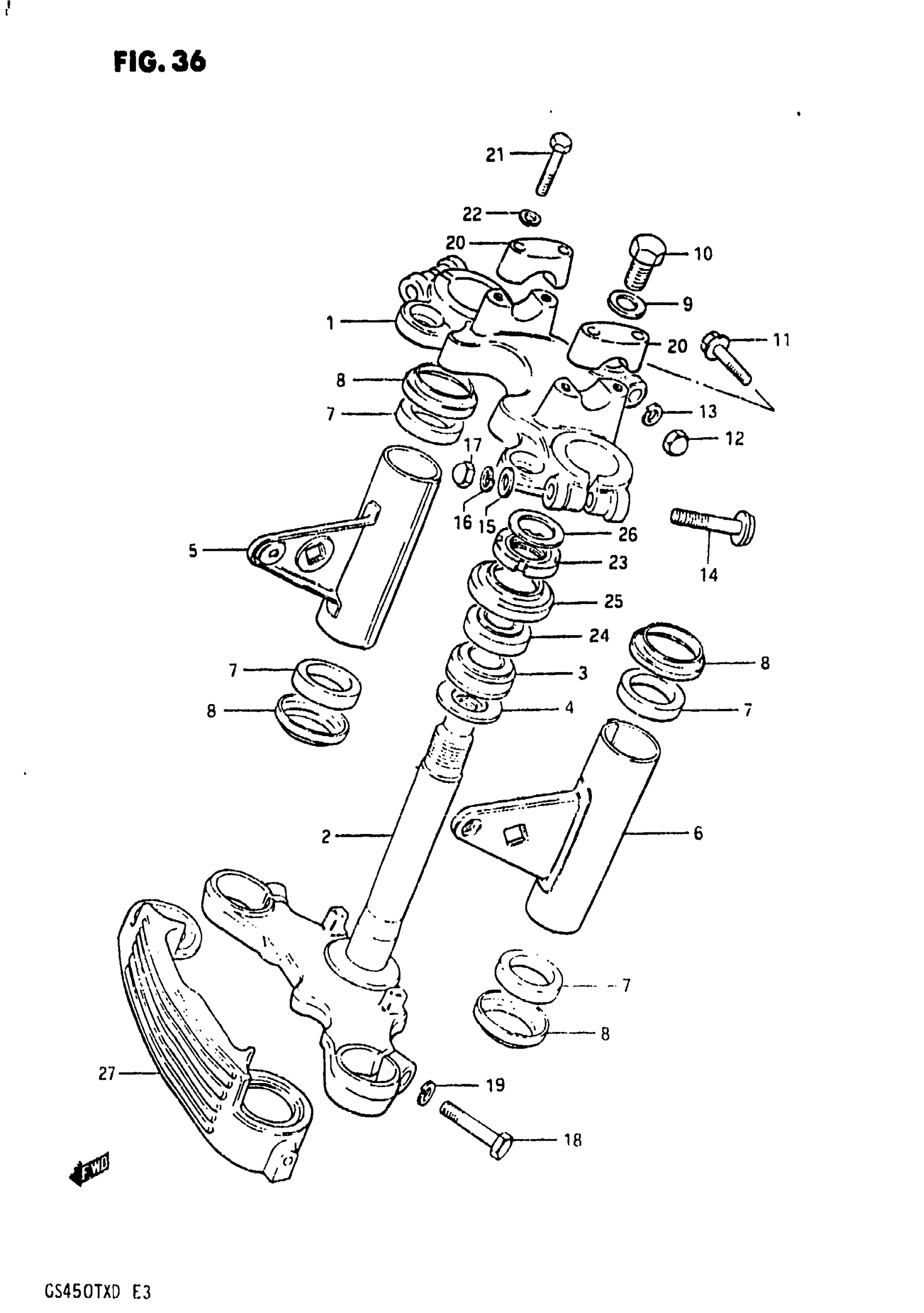

Suzuki GS450TX (1983) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-44110-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-44840.

51400-44851

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-44310.

51500-44840

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 51540-44310.

51500-44840

Unavailable

7

CUSHION, HEADLAMP BRACKET

51556-44100

Unavailable

8

CAP

51555-44100

Unavailable

9

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

10

BOLT

09104-12013

$4.11

11

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

12

NUT This part replaces 08313-11088.

08313-10087

$2.28

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

BOLT This part replaces 01517-10558.

01550-10557

$3.91

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

NUT

09145-10002

Unavailable

18

BOLT This part replaces 01107-10408.

01500-10407

$3.55

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

CLAMP, HANDLEBAR UPPER

56211-27200-291

$17.90

21

BOLT

01204-08357

$2.09

22

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

23

NUT, STEERING STEM

51631-34200

Unavailable

24

BEARING, UPPER

09265-25008

Unavailable

25

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

26

WASHER

09160-18002

$2.38

27

COVER, FRONT FORK

51871-44200

Unavailable
