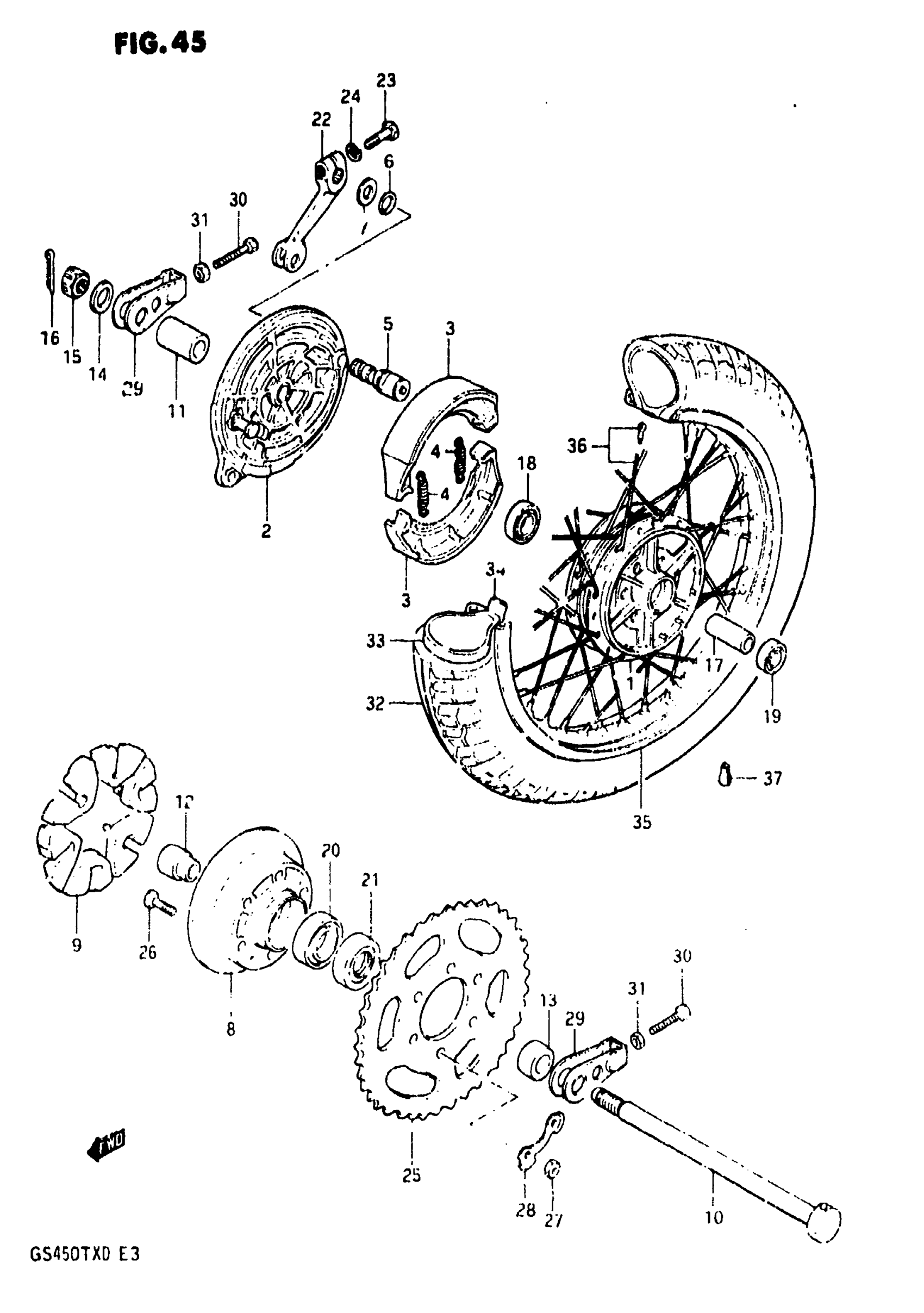

Suzuki GS450TX (1983) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-37301

Unavailable

2

PANEL

64210-44060

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

Unavailable

4

SPRING

55420-30000

$4.48

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

DRUM, SPROCKET

64611-44001

Unavailable

9

SHOCK ABSORBER, REAR HUB

64651-11300

$13.62

10

AXLE,REAR This part replaces 64711-33000.

64711-3300V

Unavailable

11

SPACER, RH

09180-17043

Unavailable

12

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

Unavailable

13

SPACER, LH

09180-17042

Unavailable

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

15

NUT

09141-16001

Unavailable

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

Unavailable

18

BEARING, REAR HUB RH

08143-63037

$22.58

19

BEARING, REAR HUB LH

08143-62037

$18.47

20

BEARING

08113-62057

$25.60

21

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

$23.97

22

LEVER, BRAKE CAM

64451-44400

Unavailable

23

BOLT This part replaces 01107-06258.

01500-06257

$1.97

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

SPROCKET, REAR (NT:43)

64511-44210

Unavailable

26

BOLT This part replaces 09119-10002.

09105-10001

$2.87

27

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

28

LOCK WASHER

09169-10006

Unavailable

29

ADJUSTER, CHAIN

61410-44200

Unavailable

30

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

31

NUT This part replaces 08310-12088.

08310-00087

$2.13

32

TIRE, REAR (110/90S17) | IRC

65100-44310

Unavailable

33

TUBE ASSY, WHEEL INNER This part replaces 65200-44300.

65200-49030

Unavailable

34

PROTECTOR, INNER TUBE This part replaces 65261-44300.

55261-02B40

$6.88

35

RIM, REAR (2.15x17)

65311-44300

Unavailable

36

SPOKE ASSY, REAR

65320-11405

Unavailable

37

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

$7.73

37

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

$7.50
