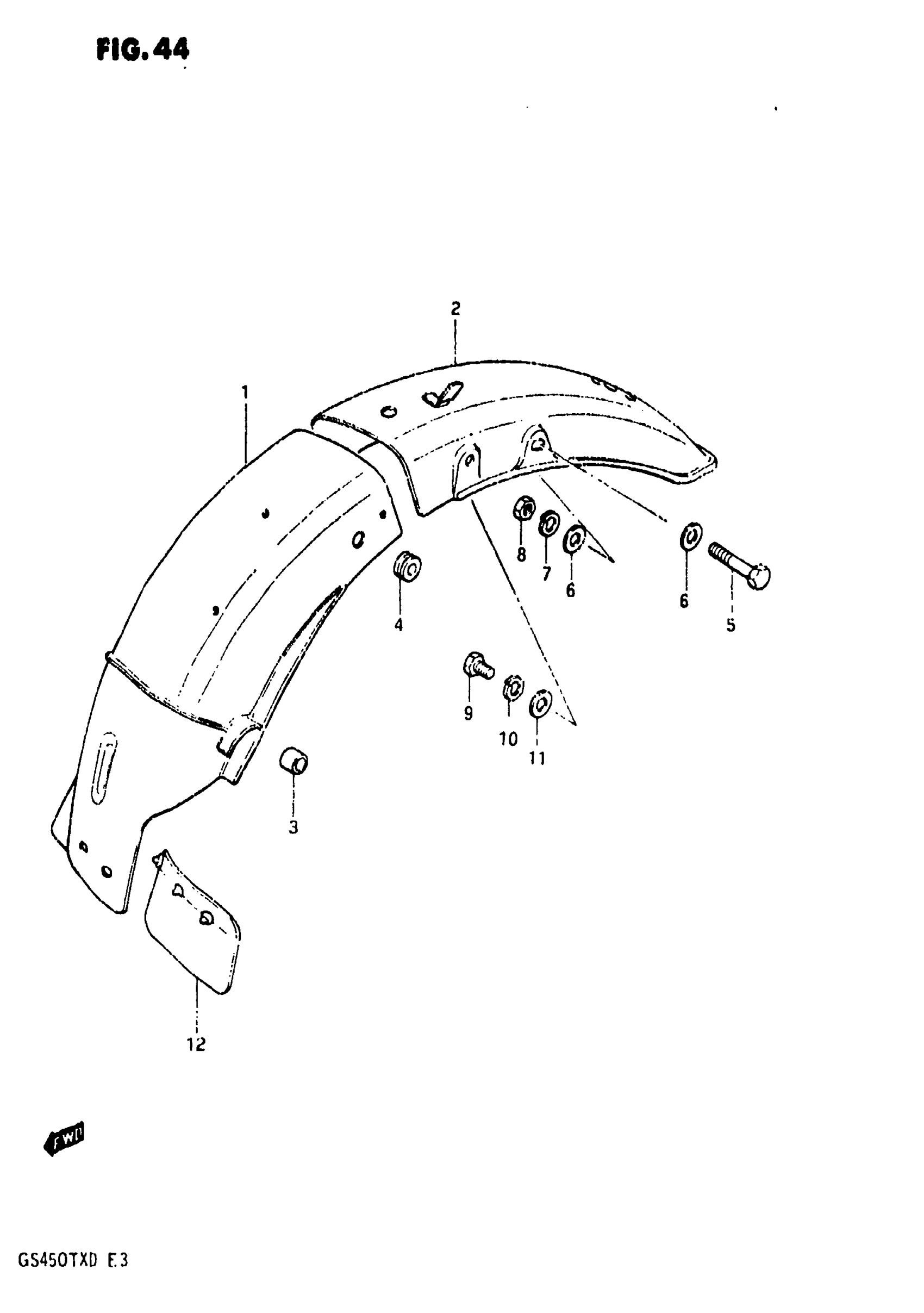

Suzuki GS450TX (1983) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63112-44120.

63112-44X50

Unavailable

2

BODY, REAR FENDER REAR

63110-44301

Unavailable

3

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

4

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

5

BOLT

01204-08657

Unavailable

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

NUT This part replaces 08310-12088.

08310-00087

$2.13

9

BOLT This part replaces 01107-08128.

01500-08127

$2.62

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

MUD GUARD, REAR FENDER

63411-31900

Unavailable
