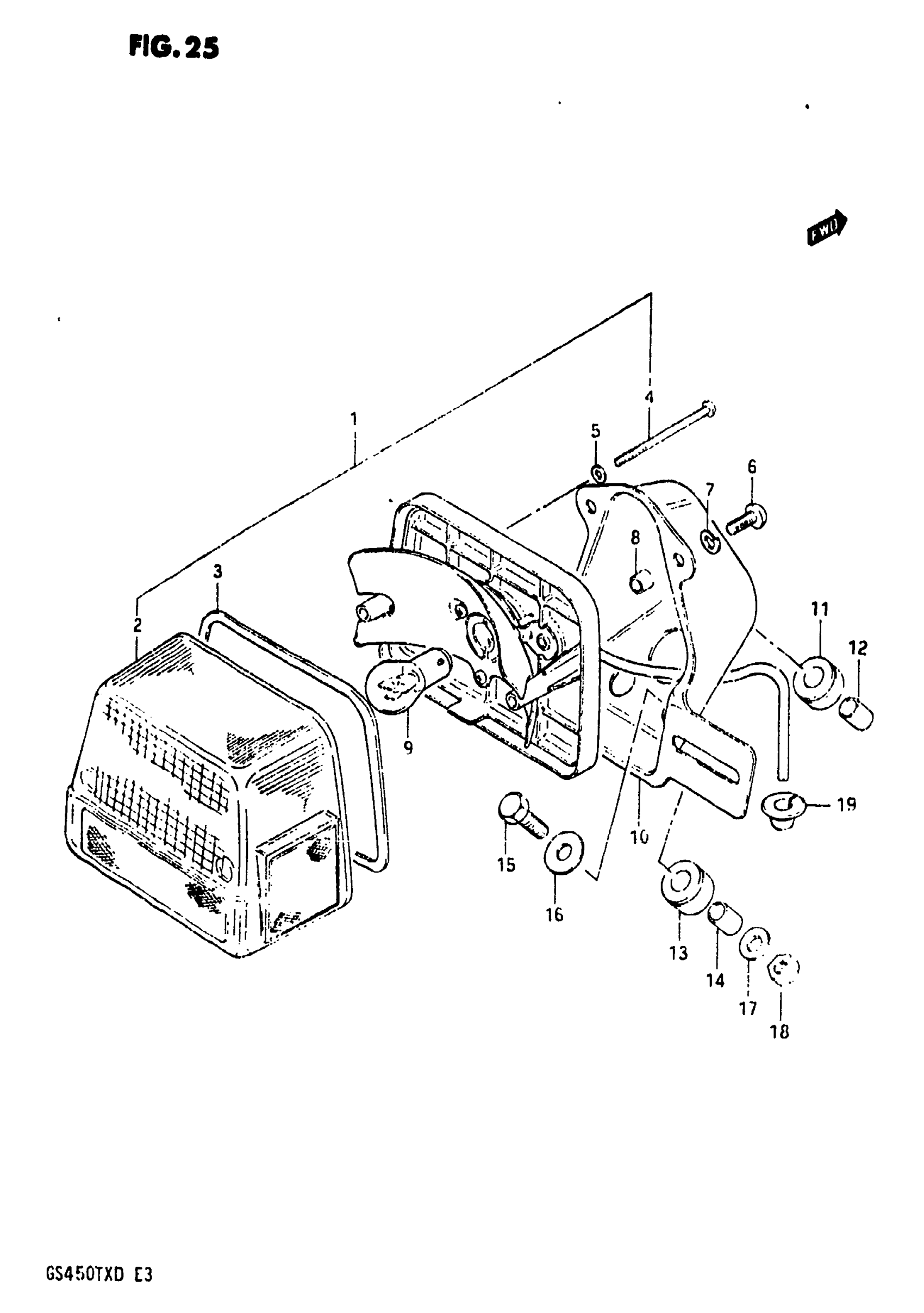

Suzuki GS450TX (1983) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 8

35720-49130-999

Unavailable

2

LENS

35712-49130

Unavailable

3

GASKET

35713-49130

Unavailable

4

SCREW

35723-44130

$2.22

5

GASKET

35627-43010

$2.28

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

SPACER

35766-39210

Unavailable

9

BULB (12V,23/8W)

09471-12035

$4.49

10

BRACKET

35726-49130

Unavailable

11

CUSHION

35765-22210

$3.84

12

SPACER

35766-37120

Unavailable

13

CUSHION

35765-11900

Unavailable

14

SPACER

35766-11900

Unavailable

15

BOLT This part replaces 01107-06258.

01500-06257

$1.97

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

.NUT This part replaces 08310-11068.

08310-00067

$2.13

19

GROMMET, LEAD WIRE

09308-07004

$2.36
