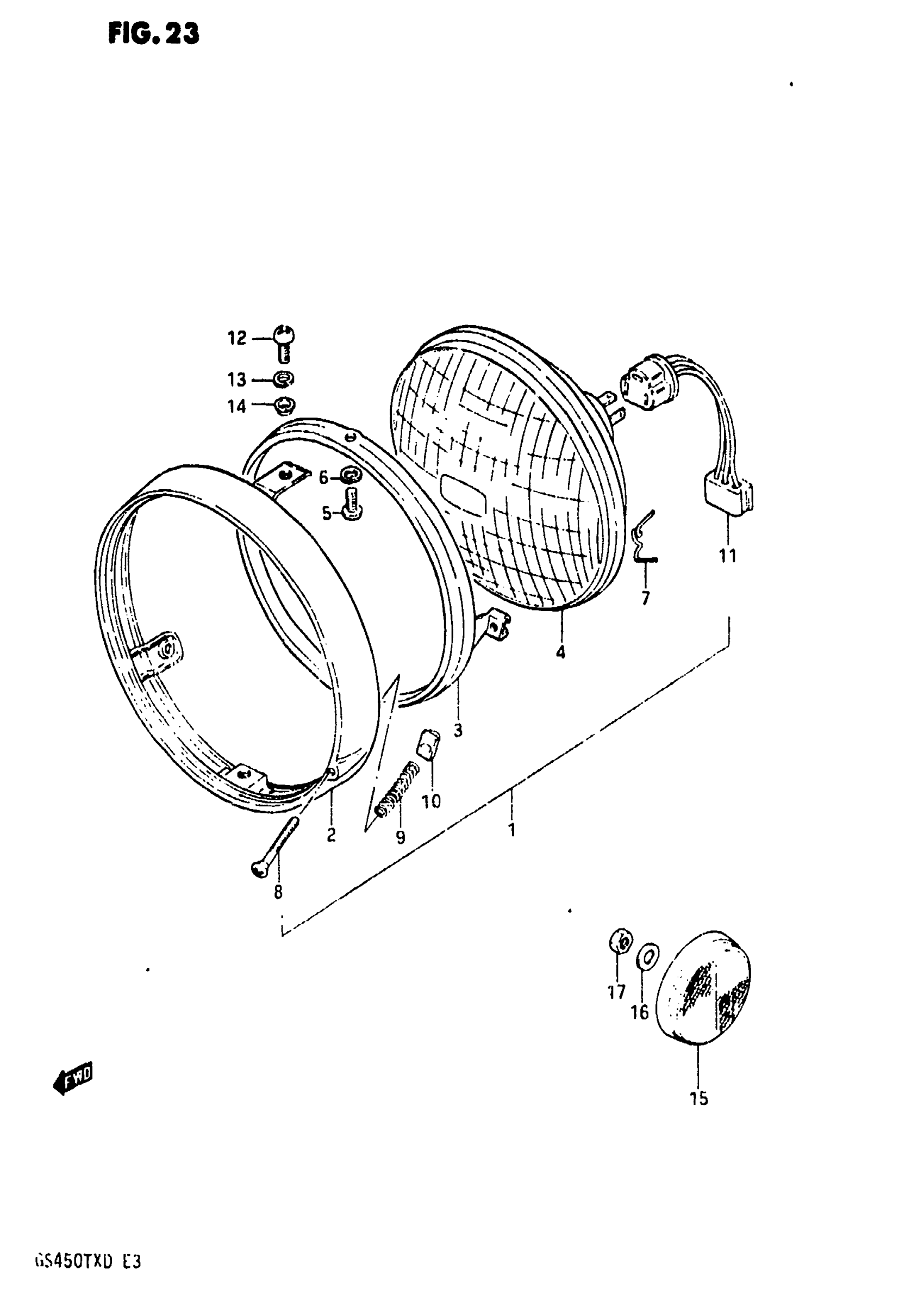

Suzuki GS450TX (1983) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11

35100-44611

Unavailable

2

RIM

35111-44610

Unavailable

3

RING

35127-33630

Unavailable

4

UNIT (12V, 50/35W)

35121-44611

Unavailable

5

SCREW

35136-29610

Unavailable

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

7

SPRING

35172-33630

Unavailable

8

SCREW, ADJUSTING

35151-33630

Unavailable

9

SPRING

35154-33630

Unavailable

10

NUT

35152-15611

$3.25

11

LEAD WIRE, HEADLAMP This part replaces 36852-33630.

36853-30500

$11.63

12

SCREW This part replaces 09125-05022.

09125-05115

$3.20

13

WASHER This part replaces 09162-05003.

09162-05002

$1.49

14

WASHER

09169-06021

$2.36

15

REFLEX REFLECTOR, FRONT

35950-49080

$17.24

16

WASHER This part replaces 08322-21058.

08322-01057

$2.13

17

NUT This part replaces 08310-11058.

08310-00057

$1.84
