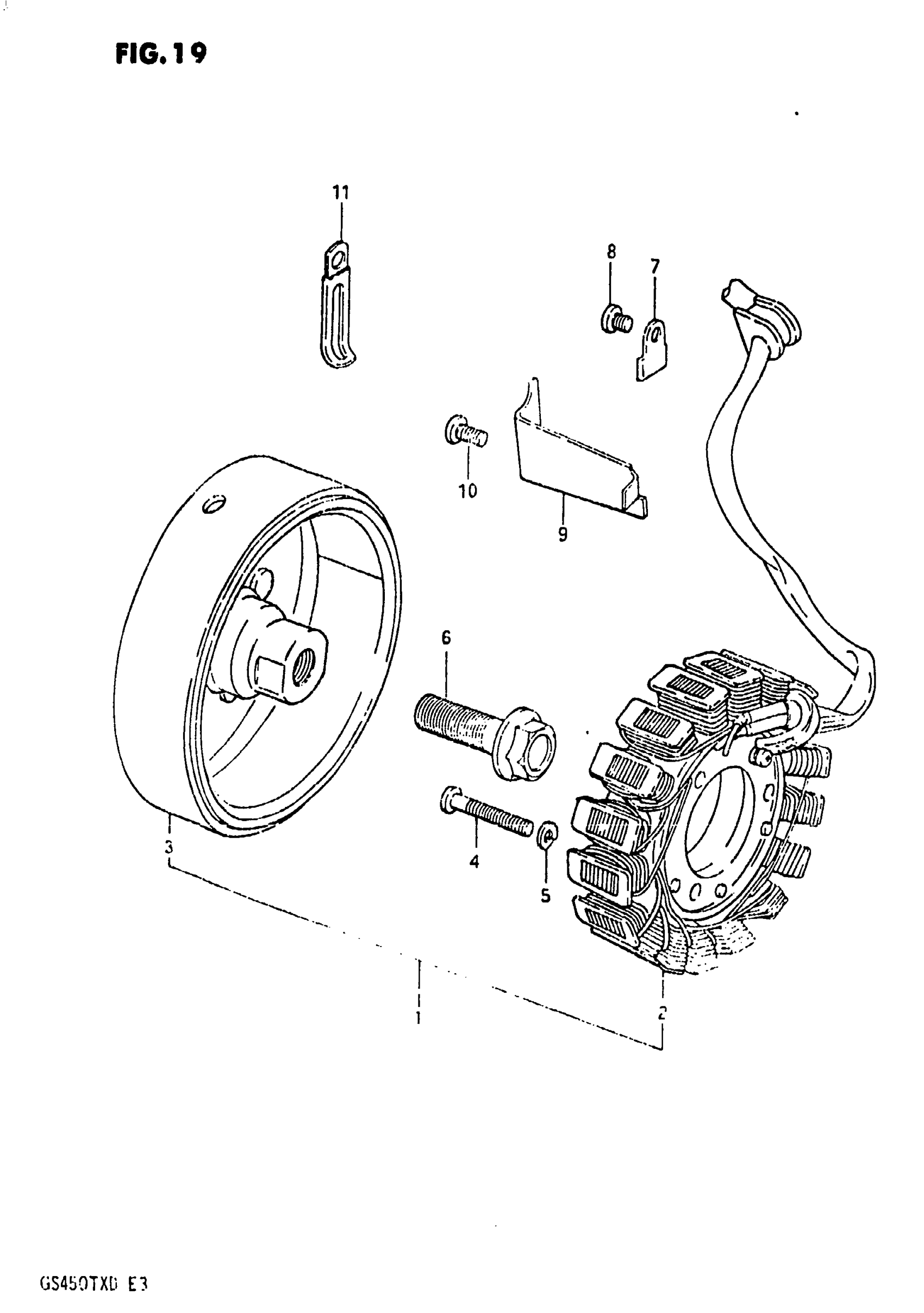

Suzuki GS450TX (1983) GENERATOR Diagram

#

Description
Price

1

STATOR | Includes Item(s) 2 - 3 This part replaces 31400-45021.

31401-45030

Unavailable

2

STATOR This part replaces 31401-45021.

31401-45030

Unavailable

3

ROTOR This part replaces 31402-45020.

31402-45030

Unavailable

4

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

BOLT

09103-12004

$4.00

7

CLAMP

31497-45000

$1.92

8

SCREW This part replaces 02112-05088.

02112-05087

$1.49

9

CLAMP

31498-45000

$2.15

10

SCREW This part replaces 02112-06108.

02112-06107

$1.49

11

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
