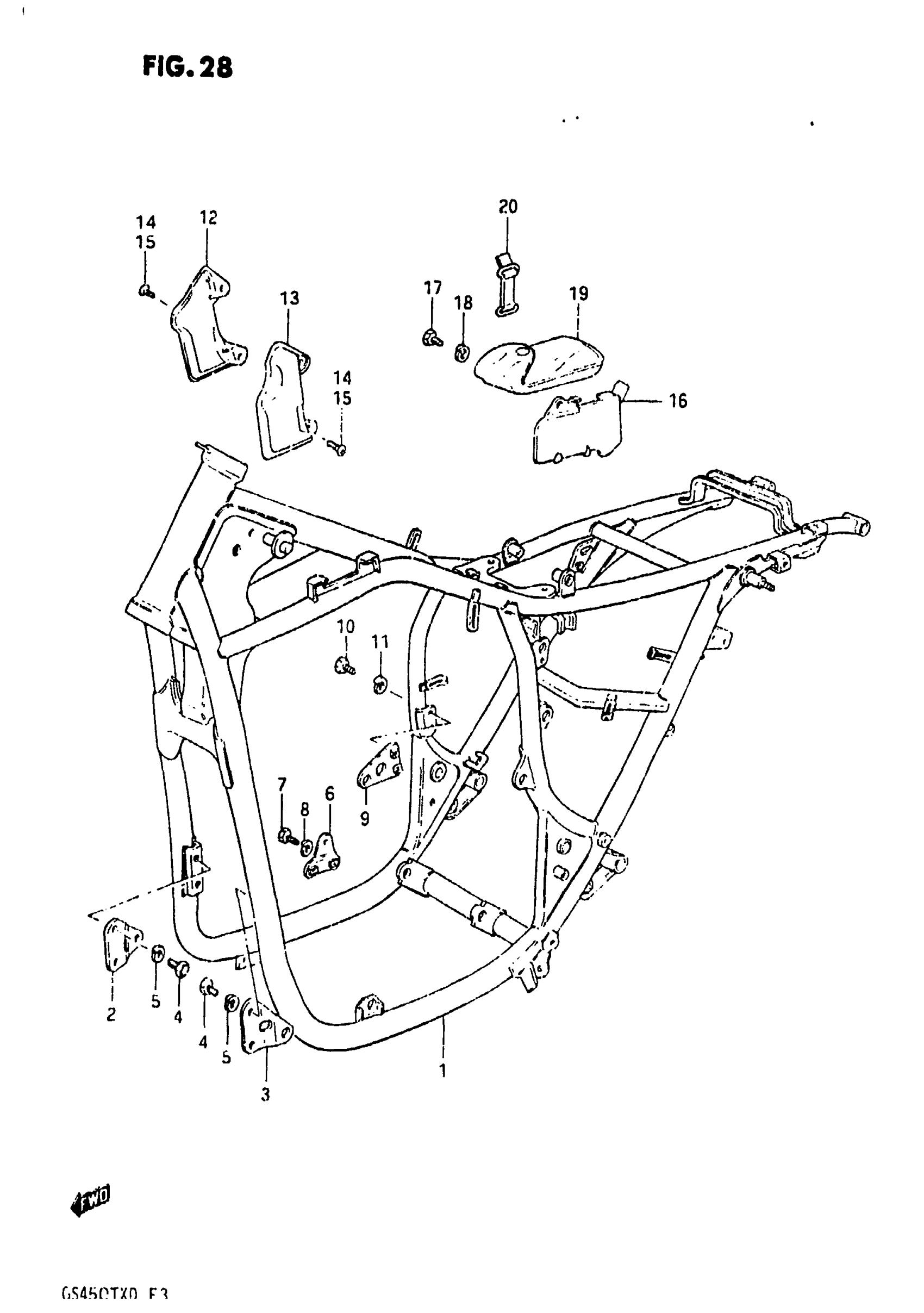

Suzuki GS450TX (1983) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-44700-019.

41100-44701-019

Unavailable

2

PLATE, NO.1 RH (BLACK)

41991-44400-019

Unavailable

3

PLATE, NO.1 LH (BLACK)

41992-44400-019

Unavailable

4

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, NO.2 RH (BLACK)

41920-44110-019

Unavailable

7

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

PLATE, NO.4 RH (BLACK)

41970-11500-019

Unavailable

10

BOLT This part replaces 01107-08458.

01500-08453

$2.50

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

COVER, FRAME HEAD RH

51876-44500

Unavailable

13

COVER, FRAME HEAD LH

51886-44500

Unavailable

14

SCREW This part replaces 02142-05208.

02142-05207

$1.49

15

SCREW This part replaces 02142-05458.

02142-05453

$2.32

16

HOLDER, TOOL This part replaces 47430-44400.

47430-44401

Unavailable

17

BOLT This part replaces 01107-06108.

01500-06107

$2.06

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

TOOL SET This part replaces 09800-06800.

09800-06801

Unavailable

20

BAND This part replaces 09462-00072.

09462-00094

$3.16
