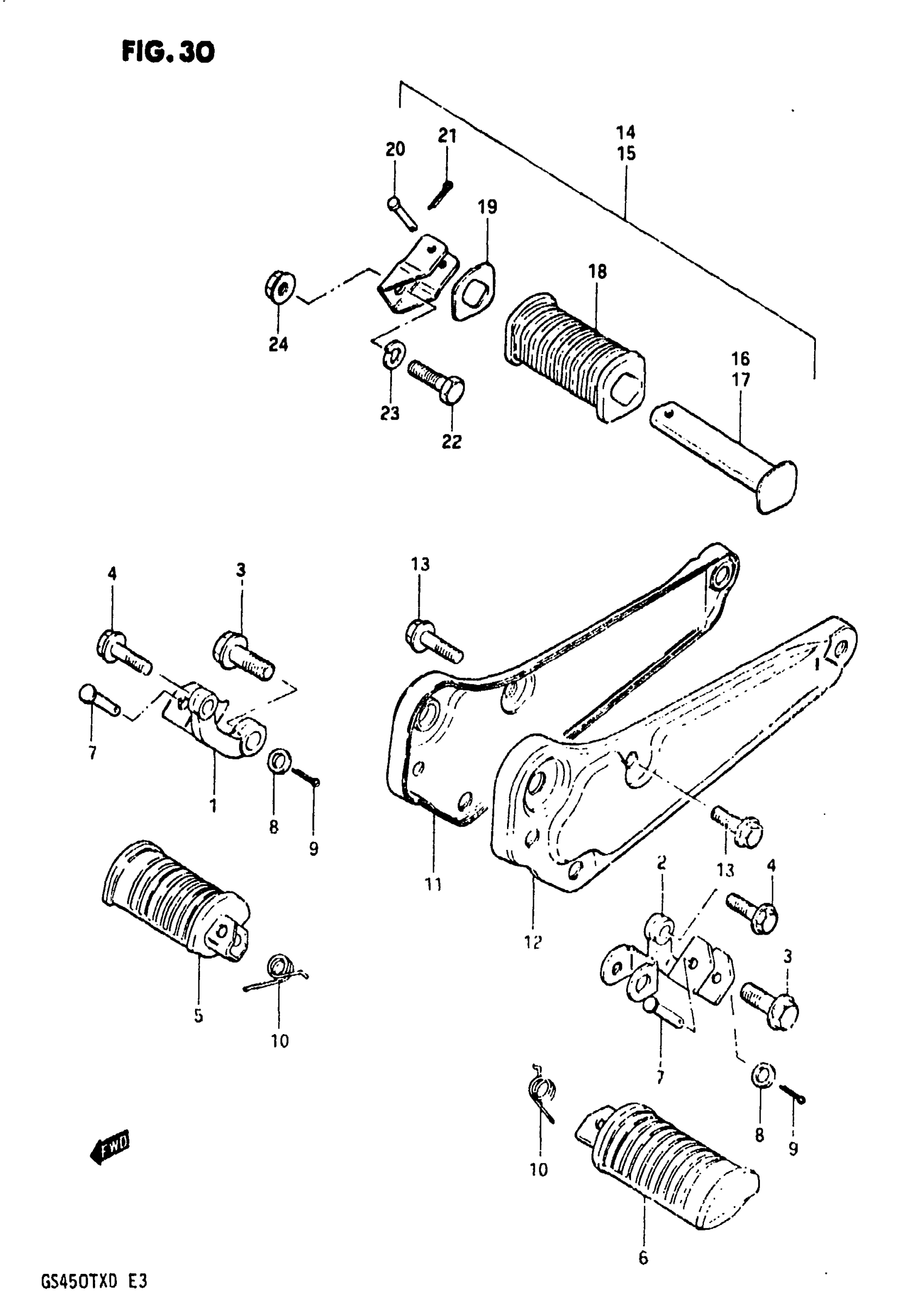

Suzuki GS450TX (1983) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-44300

Unavailable

2

BAR, FOOTREST LH

43520-44300

Unavailable

3

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.91

4

BOLT This part replaces 01527-08307.

01550-08307

$3.54

5

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

6

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

7

PIN

09200-08002

$2.05

8

WASHER This part replaces 08322-11088.

08322-01087

$2.13

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

10

SPRING

09448-14012

$3.04

11

BRACKET, MUFFLER RH

43810-44102

Unavailable

12

BRACKET, MUFFLER LH

43820-44102

Unavailable

13

BOLT, PROP SHAFT REAR This part replaces 01527-10207.

01550-1020A

$3.05

14

FOOTREST, PILLION RH

43600-34500

Unavailable

15

FOOTREST, PILLION LH | Includes Item(s) 16 - 21

43700-34500

Unavailable

16

BAR, RH

43610-49201

Unavailable

17

BAR, LH

43620-49201

Unavailable

18

RUBBER

43612-49201

Unavailable

19

WASHER This part replaces 43631-49201.

43631-45001

Unavailable

20

PIN

09200-06010

$1.72

21

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

22

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
