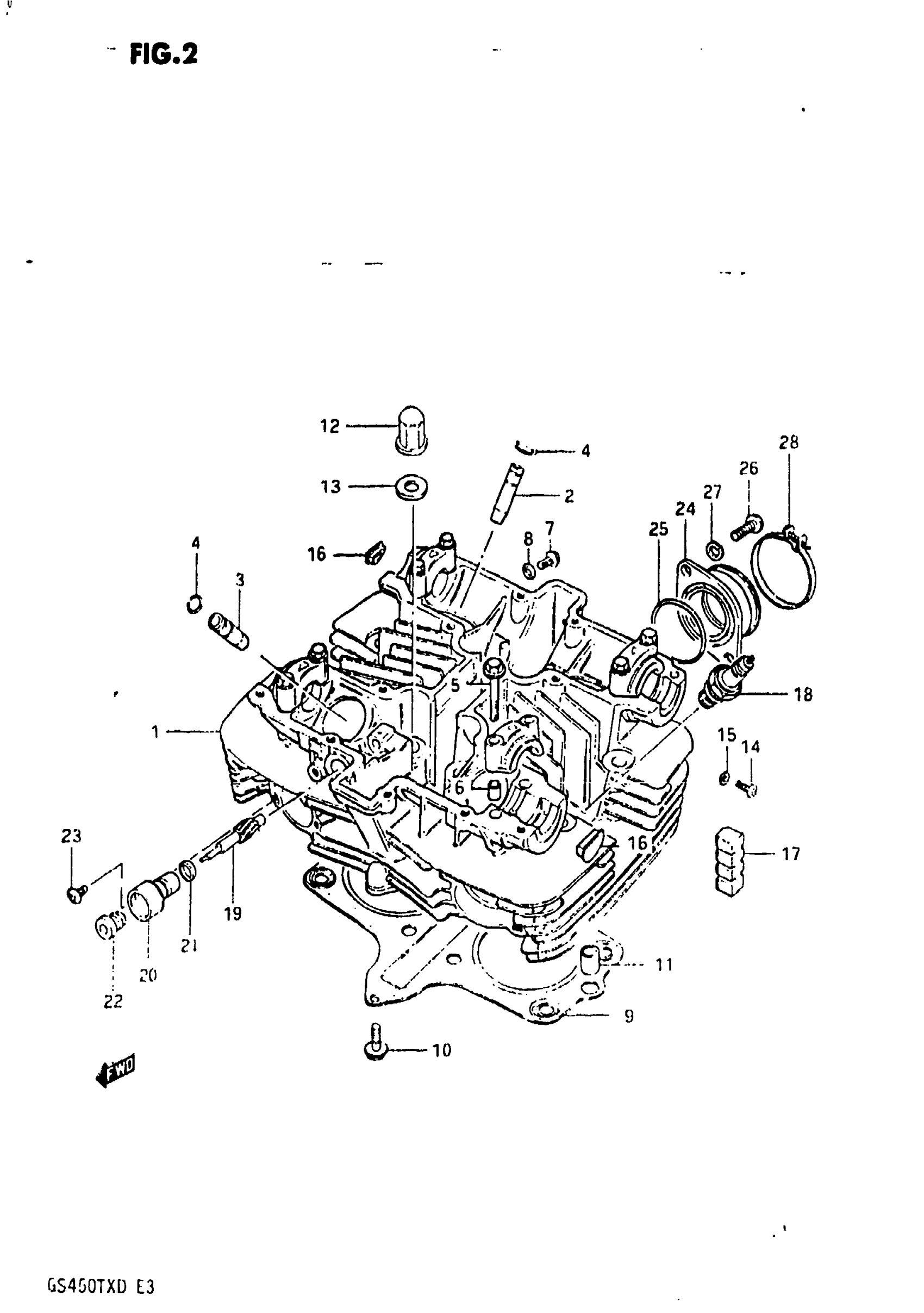

Suzuki GS450TX (1983) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD SET | Includes Item(s) 2 - 8

11100-44110

Unavailable

2

GUIDE, INTAKE VALVE

11115-45740

$40.73

3

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

4

RING, VALVE GUIDE

09381-10003

$2.47

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

BOLT This part replaces 01517-06128.

01550-06127

$2.30

8

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

9

GASKET,CYL HEAD This part replaces 11141-44110.

11141-44110-H17

Unavailable

10

BOLT This part replaces 01517-06308.

01550-06307

$2.69

11

PIN

04211-11189

$1.78

12

NUT

09159-10026

$6.20

13

GASKET

09168-10017

$3.04

14

SCREW This part replaces 02112-05088.

02112-05087

$1.49

15

GASKET

09168-05010

$1.71

16

PLUG, SIDE

09241-23002

$6.17

17

RUBBER PAD (N4)

11251-46150

$6.55

18

SPARK PLUG This part replaces 09482-00056.

09482-00091

$3.01

18

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

19

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

$48.23

20

SLEEVE

26441-49000

$30.58

21

SEAL BAND

26451-45000

$5.05

22

OIL SEAL

09289-05002

$8.43

23

SCREW

09128-05101

$1.49

24

PIPE, INTAKE

13110-44100

Unavailable

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

26

SCREW This part replaces 02112-06208.

02112-06207

$1.78

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

CLAMP

09402-54303

$3.91
