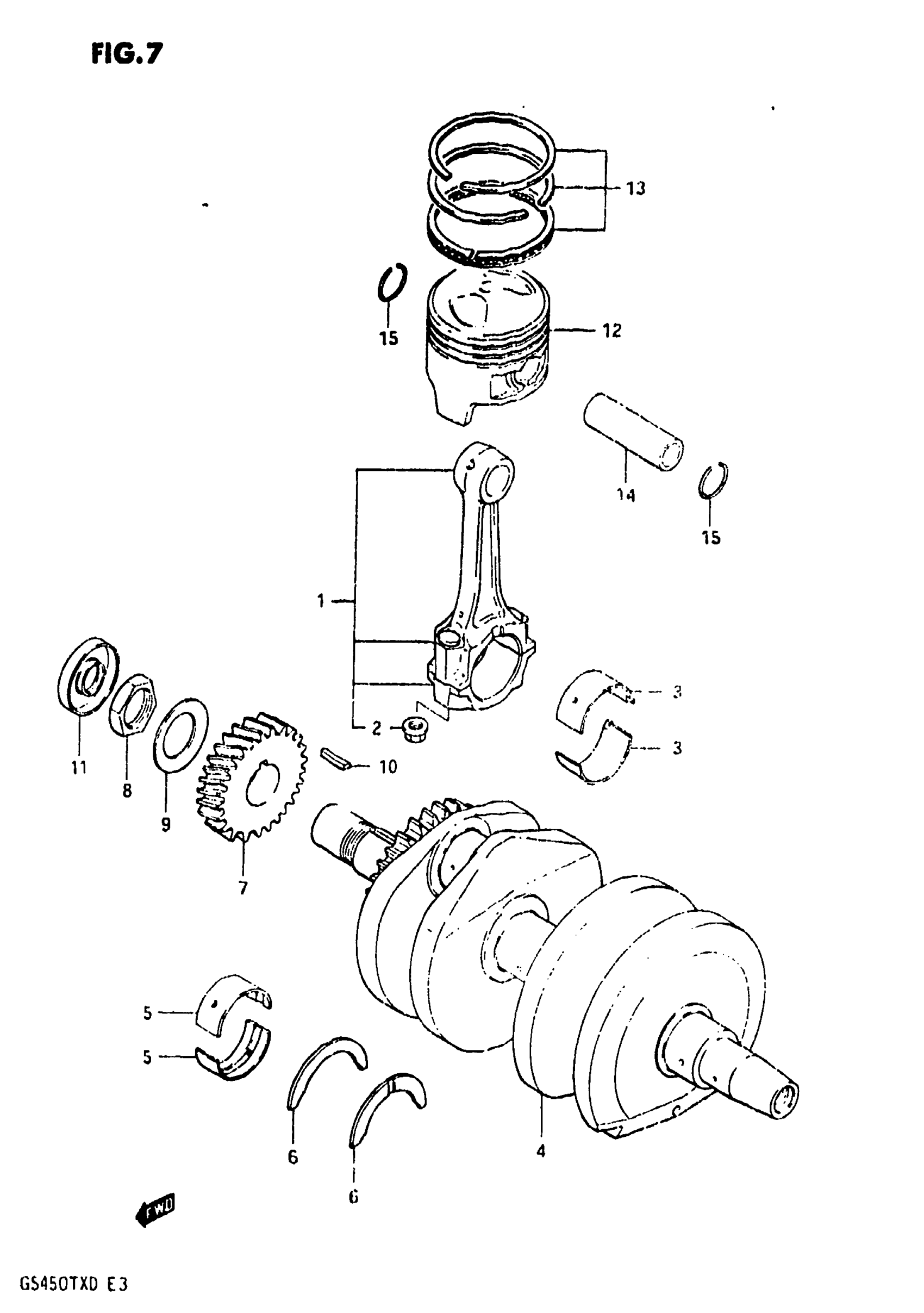

Find the part on the Crankshaft diagram for your 1983 Suzuki GS450TX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450TX Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-44100.

12160-44101

2
Out of stock

2

NUT

09159-08033

4
Out of stock

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-44110-010.

12164-01D01-0A0

4
Out of stock

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-44110-020.

12164-01D01-0B0

4
Out of stock

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-44110-030.

12164-01D01-0C0

4
Out of stock

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-44110-040.

12164-01D01-0D0

4
Out of stock

3

BEARING, CRANK PIN (US:0.25) | OPT

12164-44110-025

—
Out of stock

3

BEARING, CRANK PIN (US:0.5) | OPT

12164-44110-050

—
Out of stock

4

CRANKSHAFT This part replaces 12220-44101.

12220-01D02

1
Out of stock

5

BEARING (GREEN) This part replaces 12229-44100-010.

12229-01D01-0A0

8
Out of stock

5

BEARING (BLACK) This part replaces 12229-44100-020.

12229-01D01-0B0

8
Out of stock

5

BEARING (BROWN) This part replaces 12229-44100-030.

12229-01D01-0C0

8
Out of stock

5

BEARING (YELLOW) This part replaces 12229-44100-040.

12229-01D01-0D0

8
Out of stock

5

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-44100-025

8
Out of stock

5

BEARING, CRANKSHAFT (US:0.5) | OPT

12229-44100-050

8
Out of stock

6

BEARING, THRUST

12228-44106

2
Out of stock

7

GEAR, PRIMARY DRIVE (NT:28)

21111-44100

1
Out of stock

8

NUT

09140-24007

1
Out of stock

9

WASHER

09164-25001

1
Out of stock

10

KEY

08341-31059

1
Out of stock

11

OIL SEAL, RH (22X40X8) This part replaces 09283-22013.

09283-22015

1
Out of stock

12

PISTON (STD)

12111-44100

2
Out of stock

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44100-050.

12103-44810-050

2
Out of stock

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44100-100.

12103-44810-100

2
Out of stock

13

PISTON RING SET (STD)

12140-44110

2
Out of stock

13

PISTON RING SET (OS:0.5) | OPT

12140-44110-050

2
Out of stock

13

PISTON RING SET (OS:1.0) | OPT This part replaces 12140-44110-100.

12140-44111-100

2
Out of stock

14

PIN, PISTON This part replaces 12151-92201.

12151-45501

2
Out of stock

15

CIRCLIP

09381-18002

4
Out of stock
