1983 Suzuki GS450TX Crankcase Cover Diagram

← All diagrams

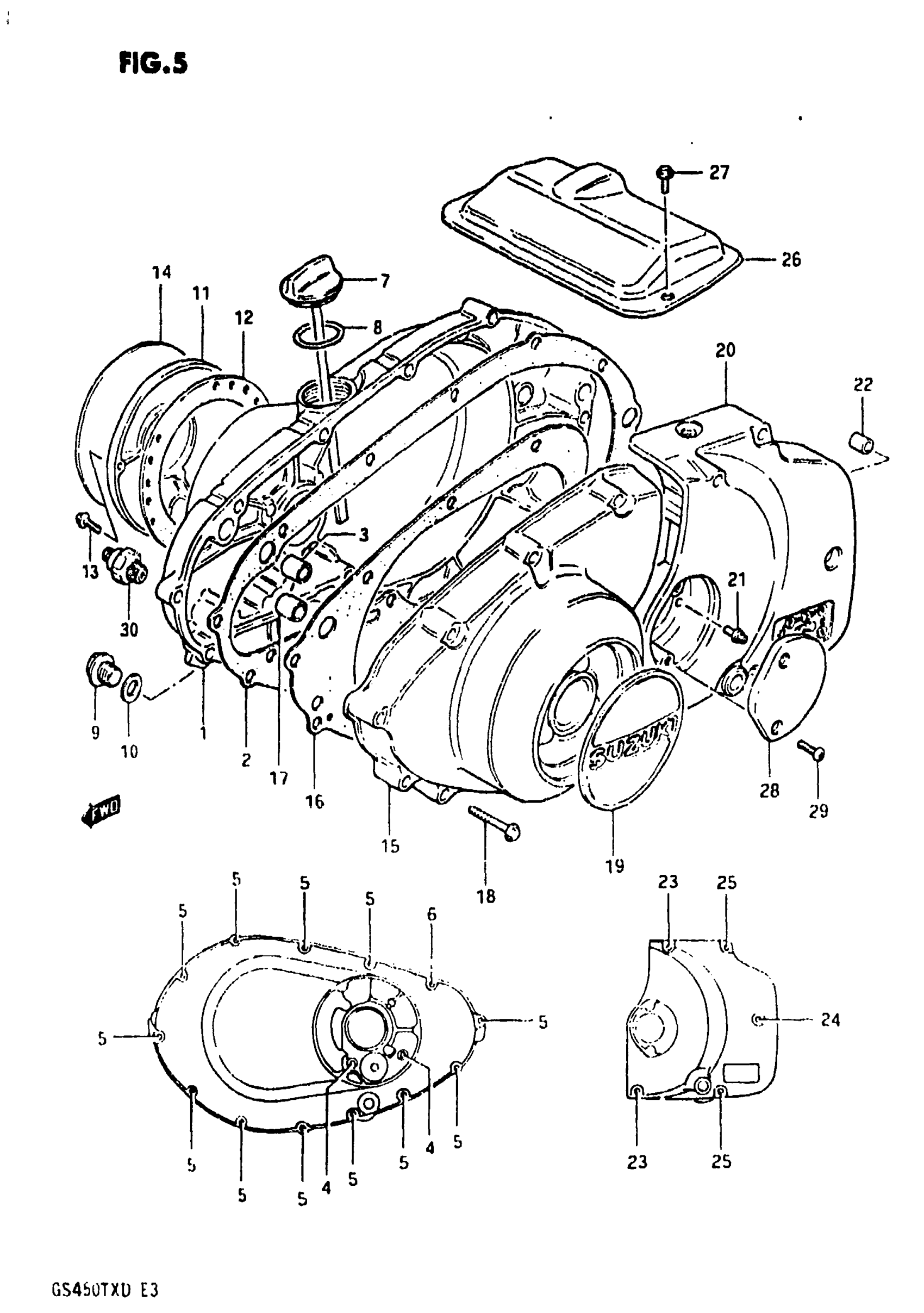

Find the part on the Crankcase Cover diagram for your 1983 Suzuki GS450TX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450TX Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-44101

1
Out of stock

2

GASKET, CLUTCH COVER This part replaces 11482-44100.

11482-44110

1
Out of stock

3

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

4

BOLT This part replaces 01547-06558.

01547-06557

2
Out of stock

5

BOLT This part replaces 01547-06358.

01547-06357

12
Out of stock

6

BOLT This part replaces 01547-06258.

01547-06257

1
Out of stock

7

GAUGE, OIL LEVEL

11970-44100

1
Out of stock

8

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

1
Out of stock

9

1

$3.63

In stock

10

GASKET

09168-14004

1
Out of stock

11

COVER, CONTACT BREAKER

11381-44101

1
Out of stock

12

GASKET

11491-44100

1
Out of stock

13

BOLT This part replaces 01544-05168.

01547-05167

3
Out of stock

14

EMBLEM

68233-44100

1
Out of stock

15

COVER, GENERATOR

11351-44102

1
Out of stock

16

GASKET, GENERATOR COVER This part replaces 11483-44100.

11483-44110

1
Out of stock

17

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

18

BOLT This part replaces 01547-06358.

01547-06357

10
Out of stock

19

EMBLEM

68233-44100

1
Out of stock

20

COVER, ENGINE SPROCKET

11361-44101

1
Out of stock

21

GREASE NIPPLE

08351-11009

1
Out of stock

22

PIN

04211-09129

1
Out of stock

23

BOLT This part replaces 01547-06658.

01547-06657

2
Out of stock

24

BOLT This part replaces 01547-06508.

01547-06507

1
Out of stock

25

BOLT This part replaces 01547-06408.

01547-06407

2
Out of stock

26

COVER, STARTER MOTOR This part replaces 11382-44100.

11382-44111

1
Out of stock

27

BOLT This part replaces 01547-05088.

01547-05087

2
Out of stock

28

CAP, CLUTCH RELEASE

11387-44100

1
Out of stock

29

SCREW This part replaces 02132-05127.

02122-05127

2
Out of stock

30

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

1
Out of stock
