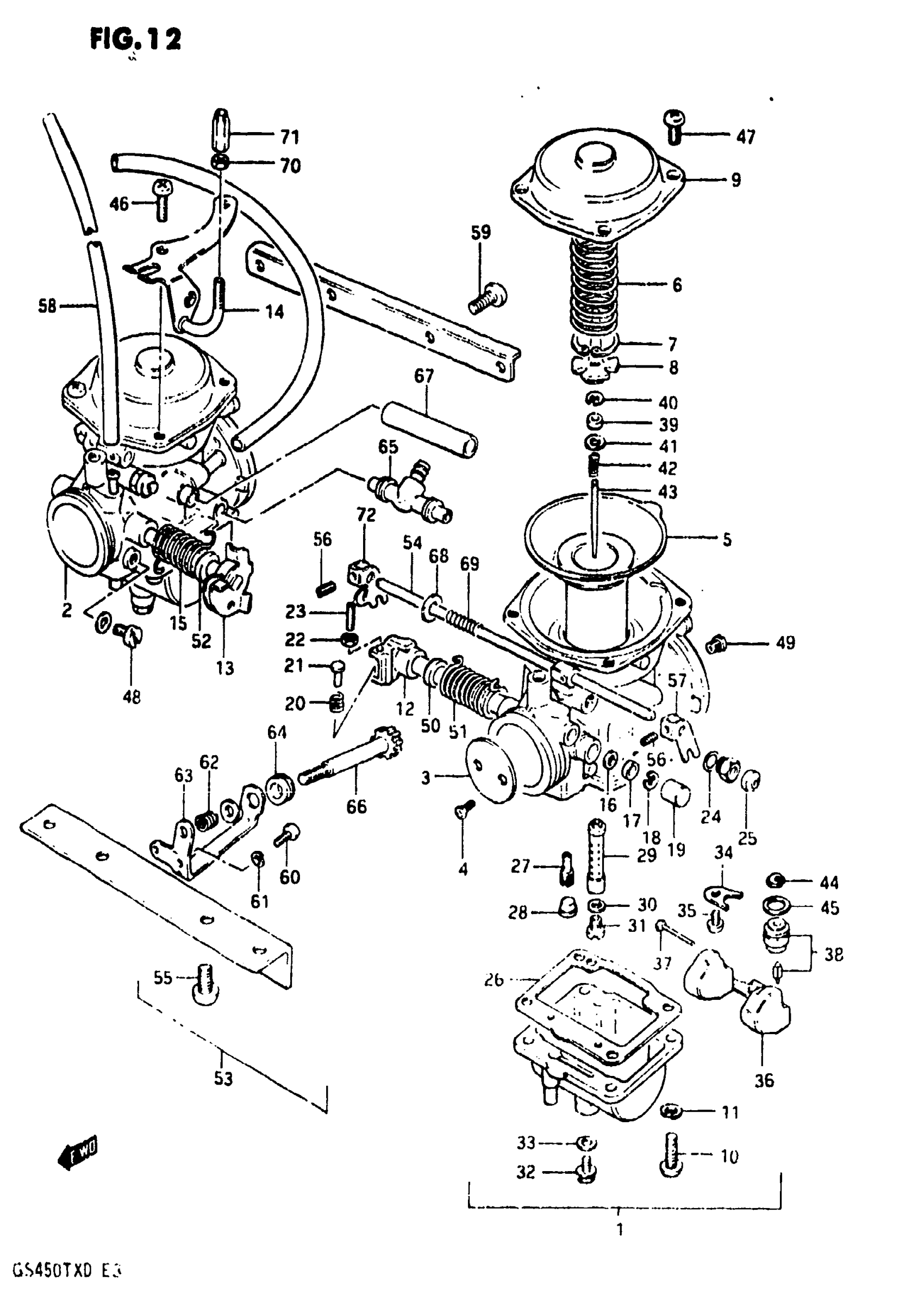

Suzuki GS450TX (1983) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-44460

Unavailable

2

CARBURETOR ASSY, RH | Includes Item(s) 3 - 52

13202-44460

Unavailable

3

VALVE, THROTTLE (95)

13551-44500

Unavailable

4

SCREW

13604-44080

$2.92

5

DIAPHRAGM ASSY This part replaces 13500-49200.

13500-38310

Unavailable

6

SPRING This part replaces 13503-44400.

13503-15510

Unavailable

7

CLIP

13581-44030

$6.78

8

HOLDER, GUIDE

13389-44030

Unavailable

9

COVER

13502-38300

Unavailable

10

SCREW This part replaces 02112-05168.

02112-05167

$1.97

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

SHAFT | LH

13550-44210

Unavailable

13

SHAFT | RH

13550-44220

Unavailable

14

BRACKET | RH

13627-44460

Unavailable

15

SPRING | RH

13573-44210

Unavailable

16

SEAL This part replaces 13651-51010.

13651-51011

$2.20

17

GASKET

13557-47070

$3.59

18

E RING

13617-44080

$2.90

19

CAP

13578-47070

$4.52

20

SPRING | LH This part replaces 13268-44100.

13268-44110

Unavailable

21

PIN | LH

13563-44110

Unavailable

22

NUT | LH

13607-47070

$3.13

23

SCREW | LH

13605-47080

$7.77

24

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

25

.CAP, STARTER VALVE

13682-31210

$4.37

26

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$8.68

27

JET, PILOT (45)

09492-45016

$9.69

28

PLUG

13357-44080

$5.10

29

JET, NEEDLE (0-6)

09494-00379

Unavailable

30

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

31

JET, MAIN (115)

09491-23011

$9.63

32

PLUG, DRAIN

13247-44080

$7.97

33

GASKET

13246-44080

$2.80

34

PLATE

13373-11400

$7.05

35

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

36

FLOAT

13250-44080

$28.49

37

PIN

13254-92311

$2.07

38

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$50.98

39

RING This part replaces 13387-44460.

13387-47010

$7.22

40

CLIP, NEEDLE This part replaces 13384-45010.

13394-10010

$5.45

41

GASKET

13382-47010

$3.56

42

SPRING

13388-47010

$6.91

43

NEEDLE, JET (5CDT60)

13383-44460

Unavailable

44

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

45

O RING This part replaces 13374-44080.

13374-35C00

$5.99

46

SCREW | RH This part replaces 02112-05108.

02112-05107

$1.49

47

SCREW | LH:4,RH:2 This part replaces 02112-05088.

02112-05087

$1.49

48

SCREW | RH This part replaces 13605-45410.

13605-73000

$11.95

49

JET, PILOT AIR (145)

09493-29001

Unavailable

50

RING | LH

13387-44200

Unavailable

51

SPRING | LH

13573-44200

Unavailable

52

RING | RH

13387-44210

Unavailable

53

FLANGE ASSY | Includes Item(s) 54 - 72

13210-44460

Unavailable

54

SHAFT, STARTER

13410-44460

Unavailable

55

SCREW This part replaces 02112-06128.

02112-06127

$1.84

56

SCREW

13605-47070

Unavailable

57

LEVER

13422-44080

Unavailable

58

HOSE(4.5X8.5X60 This part replaces 13687-18656.

09355-45001-600

$9.48

59

SCREW This part replaces 02112-05128.

02112-05127

$1.97

60

SCREW This part replaces 02112-05088.

02112-05087

$1.49

61

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

62

SPRING This part replaces 13271-44220.

13268-37420

$5.32

63

BRACKET This part replaces 13621-44210.

13627-44120

Unavailable

64

BUSH

13681-16600

$3.77

65

NIPPLE

13685-11400

Unavailable

66

ADJUSTER

13267-47070

Unavailable

67

HOSE,5X10X600 This part replaces 13683-11400.

44421-13ER0

$10.06

68

RING

13427-44460

Unavailable

69

SPRING

13437-44500

Unavailable

70

NUT

13661-03010

$5.67

71

ADJUSTER

13577-98011

Unavailable

72

LEVER

13422-44500

Unavailable
