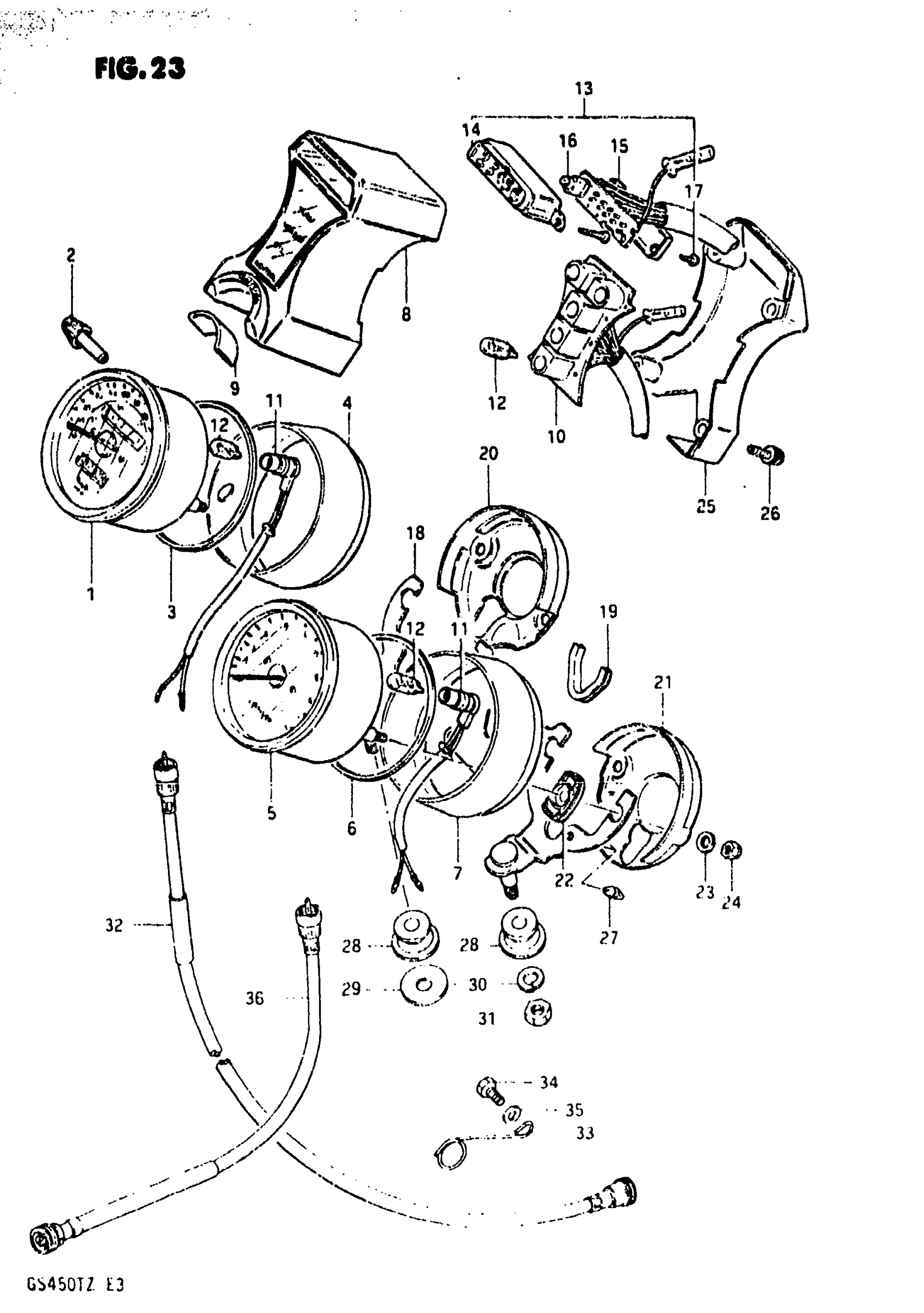

Suzuki GS450T (1982) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER | MILE & KILO SCALE; Includes Item(s) 2

34110-45230

Unavailable

2

KNOB

34980-45020

$3.77

3

CUSHION

34189-45300

Unavailable

4

COVER, SPEEDOMETER

34151-45300

Unavailable

5

TACHOMETER This part replaces 34210-47201.

34210-45360

$408.50

6

CUSHION

34189-45300

Unavailable

7

COVER, TACHOMETER

34251-45300

Unavailable

8

CASE, PILOT BOX

36380-44311

Unavailable

9

SEAL

34993-47000

Unavailable

10

SOCKET, PILOT LAMP

36325-44310

Unavailable

11

SOCKET, METER This part replaces 34173-44310.

34173-45302

Unavailable

12

BULB (12V, 3.4W)

09471-12028

$1.99

13

INDICATOR, GEAR POSLTIOR | LEAD WIRE L:350 This part replaces 36450-44310.

36450-44001

Unavailable

13

INDICATOR, GEAR POSITION | LEAD WIRE L:625; Includes Item(s) 14 - 17 This part replaces 36450-44100.

36450-47751

Unavailable

14

CASE, INDICATOR

36452-45100

Unavailable

15

COVER, LOWER

36454-45100

Unavailable

16

BULB

09471-12071

$7.20

17

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

18

BRACKET

34950-44311

Unavailable

19

COVER, BRACKET

34953-44310

Unavailable

20

ORNAMENT, SPEEDOMETER

34193-45300

Unavailable

21

ORNAMENT, TACHOMETER

34293-45300

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 34189-44310.

34189-44311

Unavailable

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13

24

NUT This part replaces 08313-11057.

08313-1005A

$1.93

25

COVER, PILOT BOX

36383-44310

Unavailable

26

SCREW This part replaces 36387-44310.

02112-0410A

$1.49

27

CUSHION

34191-44310

Unavailable

28

CUSHION

34956-31001

$4.37

29

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

NUT This part replaces 08310-12088.

08310-00087

$2.13

32

CABLE SPEEDOMET | MODEL X This part replaces 34910-47310.

34910-44401

$26.05

32

CABLE SPEEDOMET | MODEL Z This part replaces 34910-47311.

34910-44401

$26.05

33

CLAMP

34938-45100

$6.57

34

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

35

WASHER This part replaces 08322-21068.

08322-01067

$2.13

36

CABLE ASSY,TACH | MODEL X This part replaces 34940-47031.

34940-47034

$23.49

36

CABLE ASSY,TACH | MODEL Z This part replaces 34940-47032.

34940-47034

$23.49
