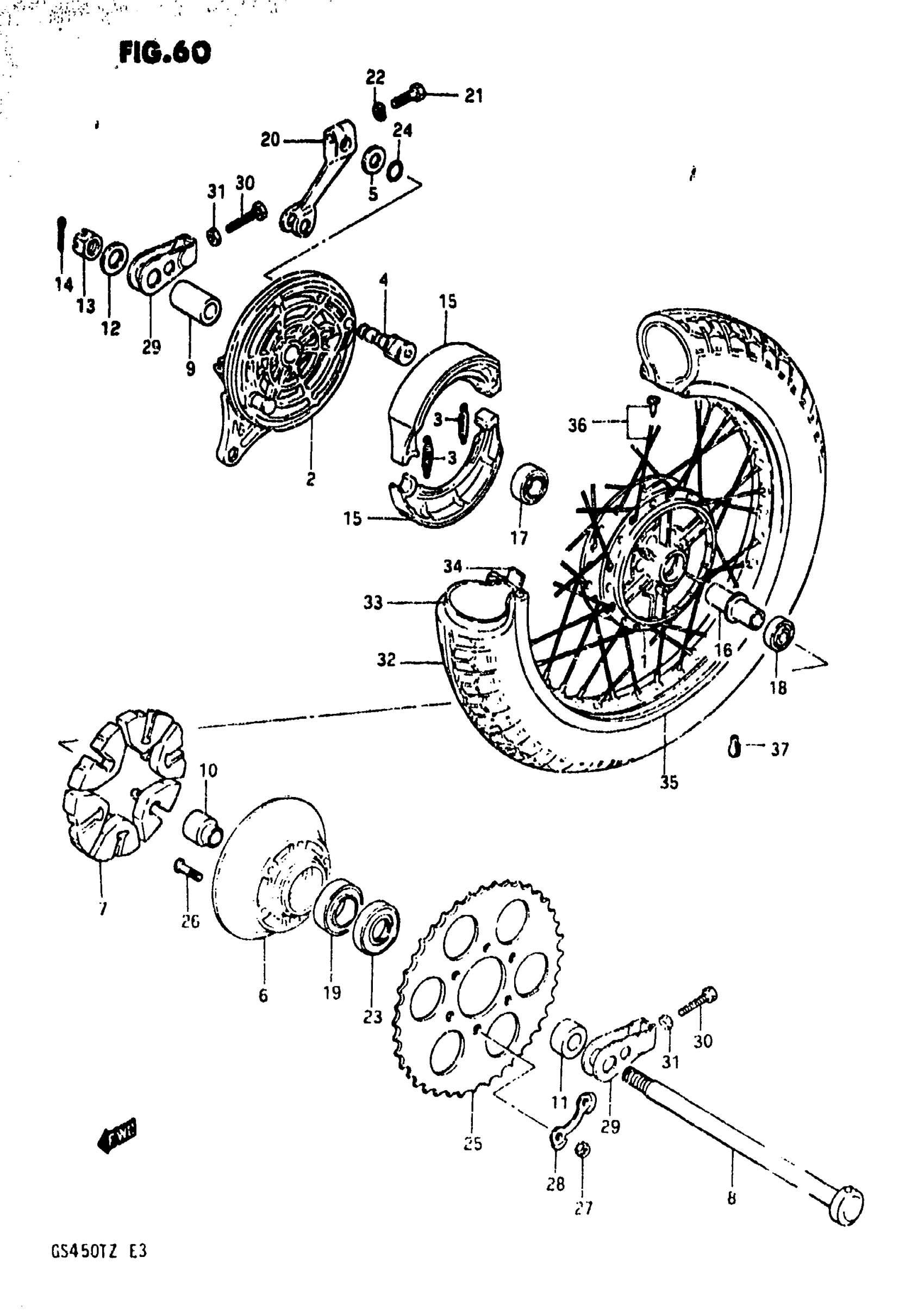

Suzuki GS450T (1982) REAR WHEEL (GS450TXZ) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-11001

Unavailable

2

PANEL

64210-11002

Unavailable

3

SPRING

55420-30000

$4.48

4

CAM, BRAKE

54440-33002

Unavailable

5

WASHER This part replaces 09160-15001.

09160-15048

$2.56

6

DRUM, SPROCKET MOUNTING

64611-33000

Unavailable

7

SHOCK ABSURBER, REAR DRUM

64651-11002

Unavailable

8

AXLE,REAR This part replaces 64711-33000.

64711-3300V

Unavailable

9

SPACER, RH

09180-17043

Unavailable

10

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

Unavailable

11

SPACER, LH

09180-17042

Unavailable

12

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

13

NUT

09141-16001

Unavailable

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SHOE SET,BRAKE( This part replaces 64410-11002.

64400-11870

Unavailable

16

SPACER, BEARING

64730-11000

Unavailable

17

BEARING (RH)

08143-63037

$22.58

18

BEARING (LH)

08143-62037

$18.47

19

BEARING

08113-62057

$25.60

20

LEVER, BRAKE CAM

64451-44001

Unavailable

21

BOLT This part replaces 01107-06258.

01500-06257

$1.97

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

$23.97

24

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

25

SPROCKET, REAR (NT:43)

64511-44210

Unavailable

26

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

27

NUT This part replaces 08310-11108.

08310-00107

$2.19

28

LOCK WASHER

09169-10006

Unavailable

29

ADJUSTER, CHAIN

61410-44200

Unavailable

30

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

31

NUT This part replaces 08310-12088.

08310-00087

$2.13

32

TIRE, REAR (110/90-17 60S) | IRC

65100-44310

Unavailable

33

TUBE ASSY, WHEEL INNER This part replaces 65200-44300.

65200-49030

Unavailable

34

PROTECTOR, INNER TUBE This part replaces 65261-44300.

55261-02B40

$6.88

35

RIM, REAR (2.15x17)

65311-44300

Unavailable

36

SPOKE ASSY, REAR

65320-44300

Unavailable

37

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

$7.73

37

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

$7.50
