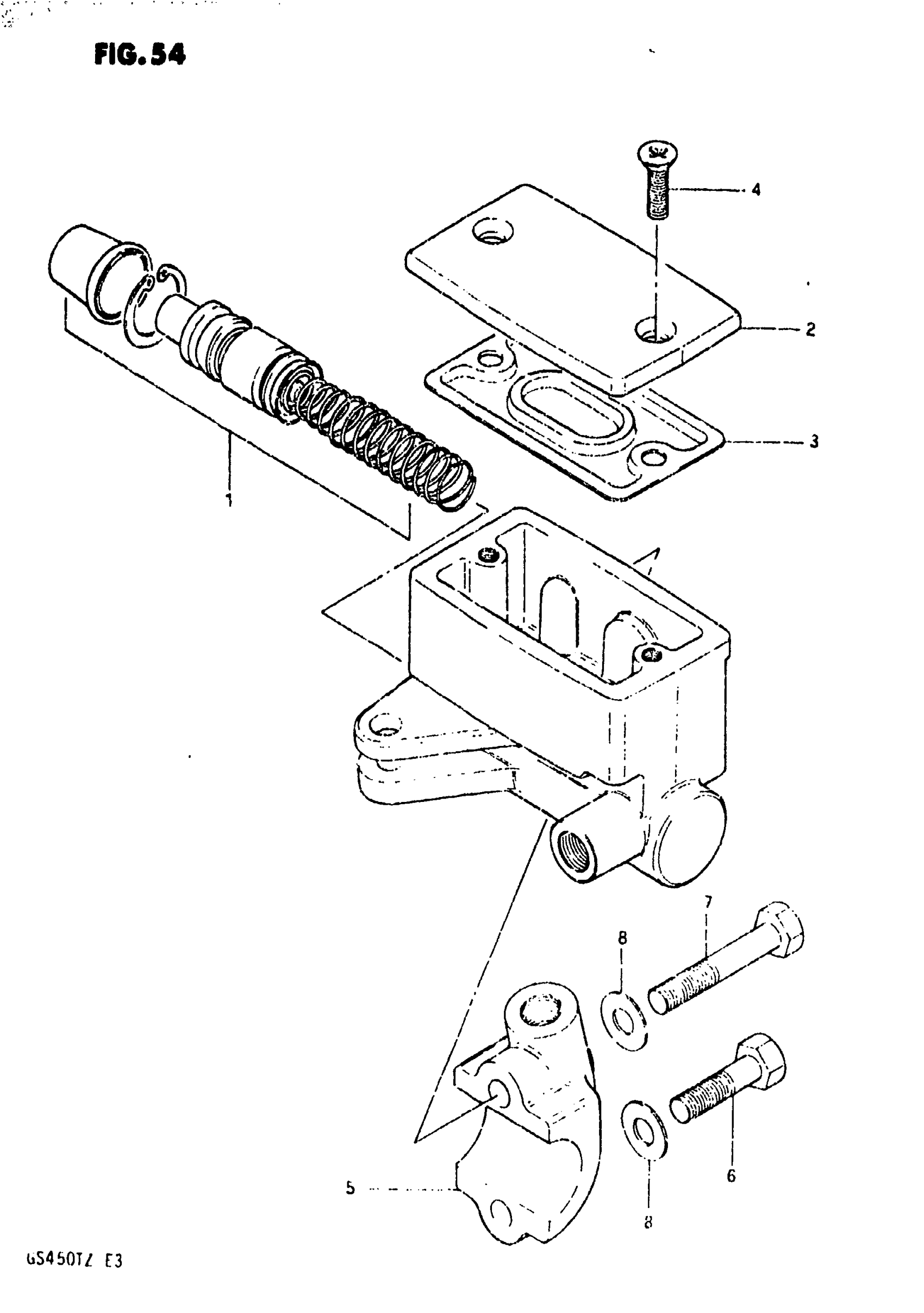

Suzuki GS450T (1982) MASTER CYLINDER (MODEL Z) Diagram

#

Description

Price

0

CYLINDER ASSY, MASTER | Includes Item(s) 1 - 8

59600-44330

Unavailable

1

PISTON & CUP SET

59600-45841

Unavailable

2

CAP This part replaces 69669-49330.

59669-41C00

$32.56

3

DIAPHRAGM This part replaces 69667-49300.

59667-49460

$9.78

4

SCREW

69689-49300

$1.91

5

HOLDER

59671-44300

$17.37

6

BOLT This part replaces 01107-06258.

01500-06257

$1.97

7

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
