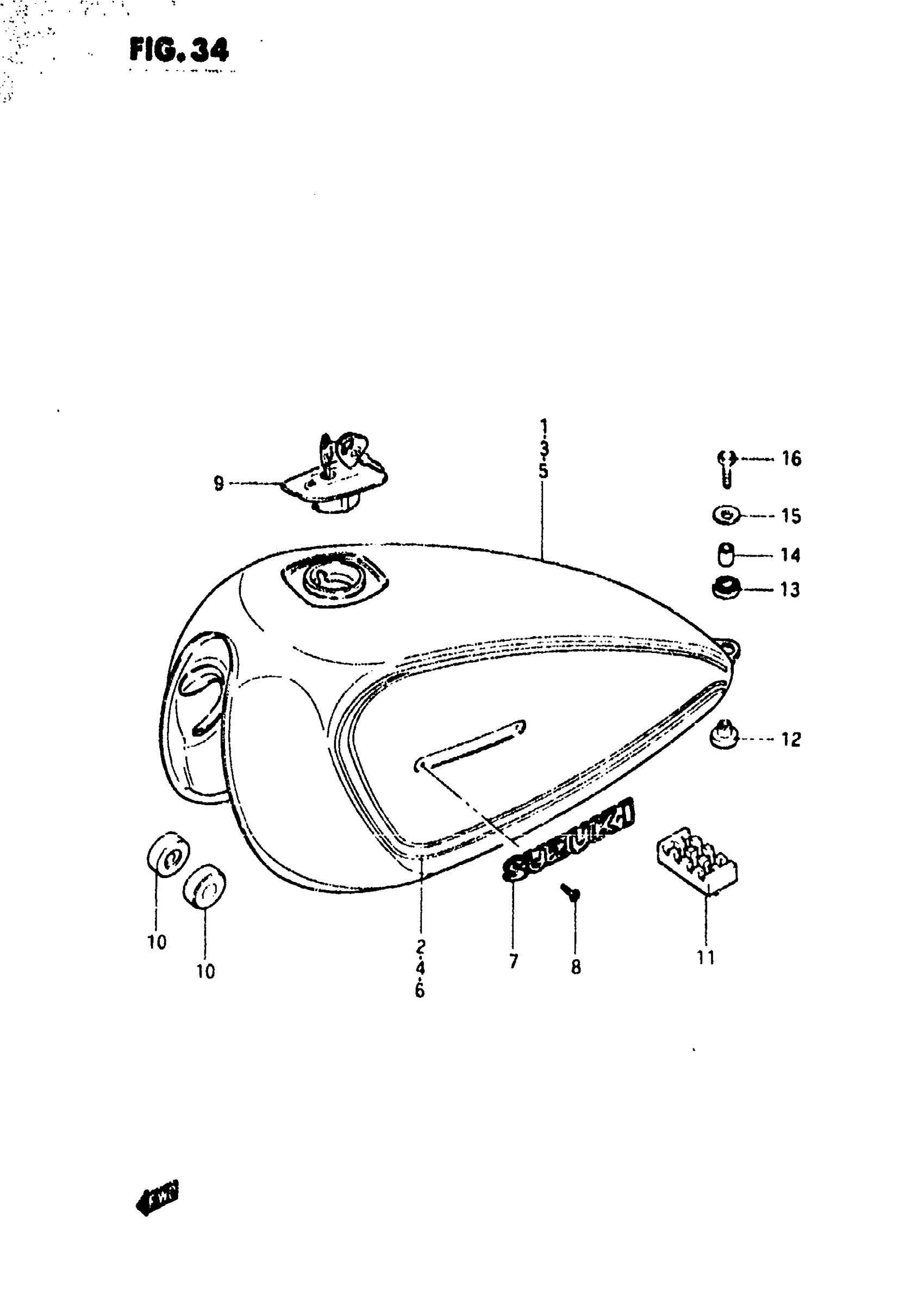

Suzuki GS450T (1982) FUEL TANK (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS450TZ This part replaces 44100-44320-019.

44100-44321-019

Unavailable

2

TAPE SET | GS450TZ

68110-44310-70G

Unavailable

3

NO DESCRIPTION AVAILABLE | GS450TZ; Includes Item(s) 4 This part replaces 44100-44320-05L.

44100-44321-05L

Unavailable

4

TAPE SET | GS450TZ

68110-44310-71F

Unavailable

5

NO DESCRIPTION AVAILABLE | GS450TXZ; Includes Item(s) 6 This part replaces 44100-44320-03F.

44100-44321-03F

Unavailable

6

TAPE SET | GS450TXZ

68110-44310-81R

Unavailable

7

EMBLEM

68111-11400

$23.97

8

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

9

CAP SET,FUEL TA This part replaces 44200-49703.

44200-49811

$144.42

10

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

11

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

12

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

13

CUSHION, REAR UPPER

09320-14013

$2.11

14

SPACER This part replaces 09180-06072.

09180-06271

$2.35

15

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

16

BOLT

09100-06098

Unavailable
