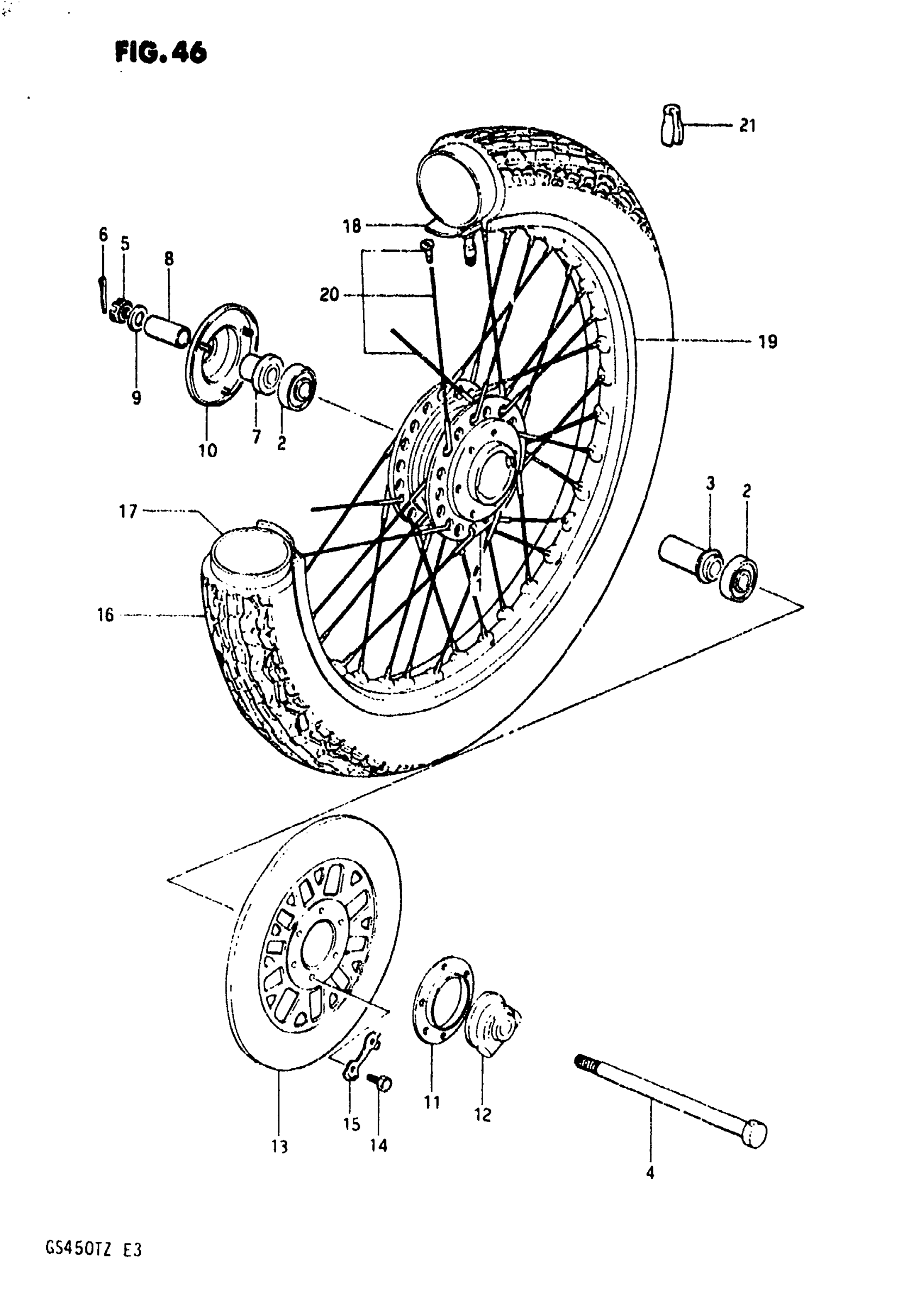

Suzuki GS450T (1982) FRONT WHEEL (GS450TXZ) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54111-47001.

54111-47002

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING (OD:22)

54740-18410

$20.45

8

SPACER, AXLE (15X22X30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

COVER, RH

54871-45000

$8.98

11

DUST SEAL, GEAR BOX

54871-45010

Unavailable

12

BOX ASSY,SPEEDO This part replaces 54600-34001.

54600-08C01

Unavailable

13

DISK, FRONT BRAKE

59211-45200

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE (90/90/19) | IRC

55100-44310

Unavailable

17

TUBE, INNER

55200-29010

Unavailable

18

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-15010.

55261-15020

$3.15

19

RIM (1.85-19)

55311-34020

Unavailable

20

SPOKE SET

55320-45000

Unavailable

21

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

$7.73

21

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

$7.50
