Partiron

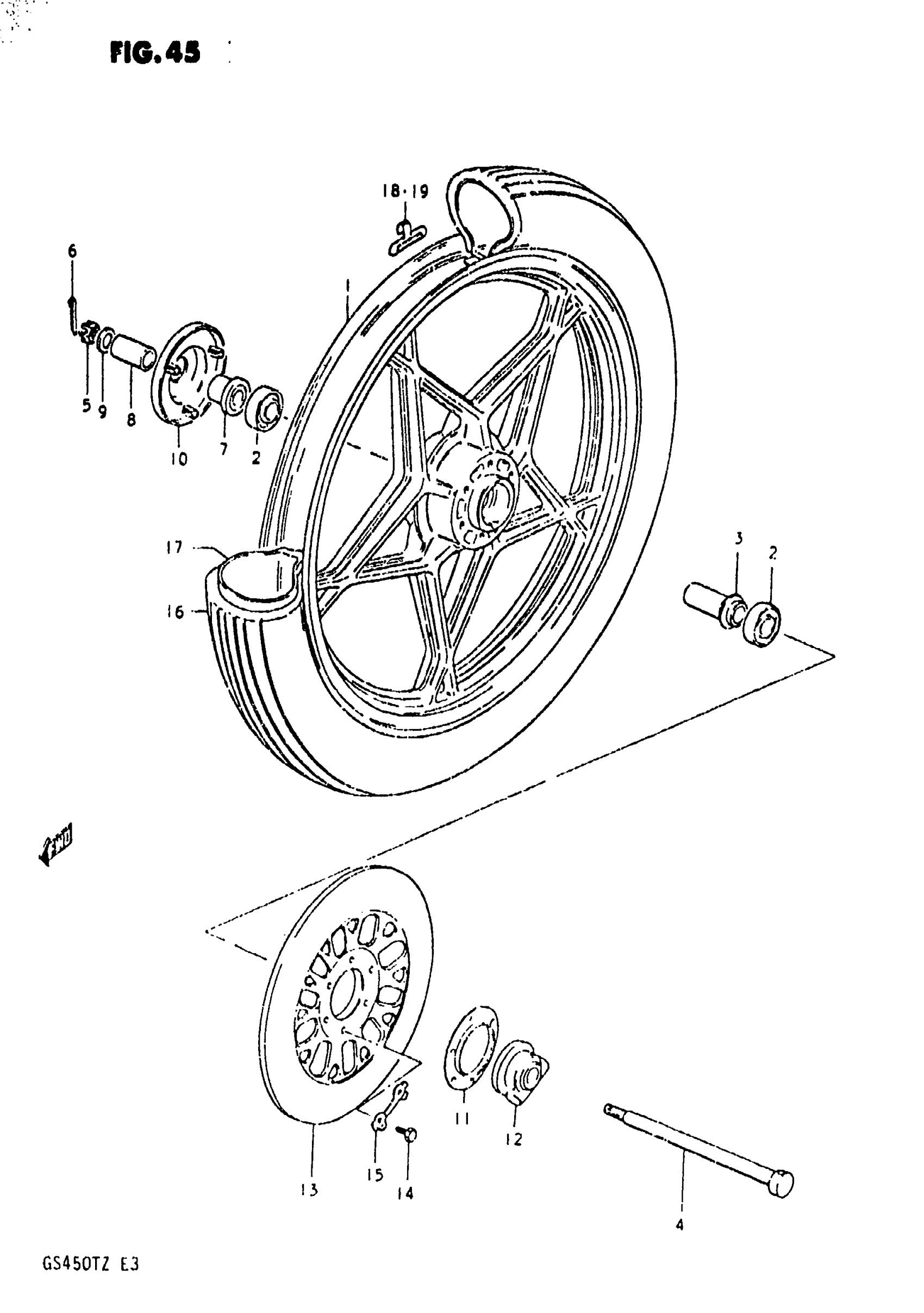

Suzuki GS450T (1982) FRONT WHEEL (GS450TX Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 54111-49300-12U.

54111-49350-291

Unavailable

1

WHEEL (BLACK) | MODEL Z

54111-45300-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING

54740-18410

$20.45

8

SPACER, AXLE (15X22X30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

COVER, RH

54871-45000

$8.98

11

DUST SEAL, GEAR BOX

54871-45010

Unavailable

12

BOX ASSY,SPEEDO This part replaces 54600-34001.

54600-08C01

Unavailable

13

DISK, FRONT BRAKE

59211-45200

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE, FRONT (90/90/19 52S)) | IRC

55100-44310

Unavailable

17

TUBE, INNER FRONT (3.00-18)

55200-29010

Unavailable

18

BALANCER | MODEL X

55411-47001

Unavailable

18

BALANCER, WHEEL NO.2 | MODEL Z This part replaces 55411-45100.

55412-17G00

$7.05

19

BALANCER | MODEL X

55412-47001

Unavailable

19

BALANCER | MODEL Z

55412-45100

Unavailable
