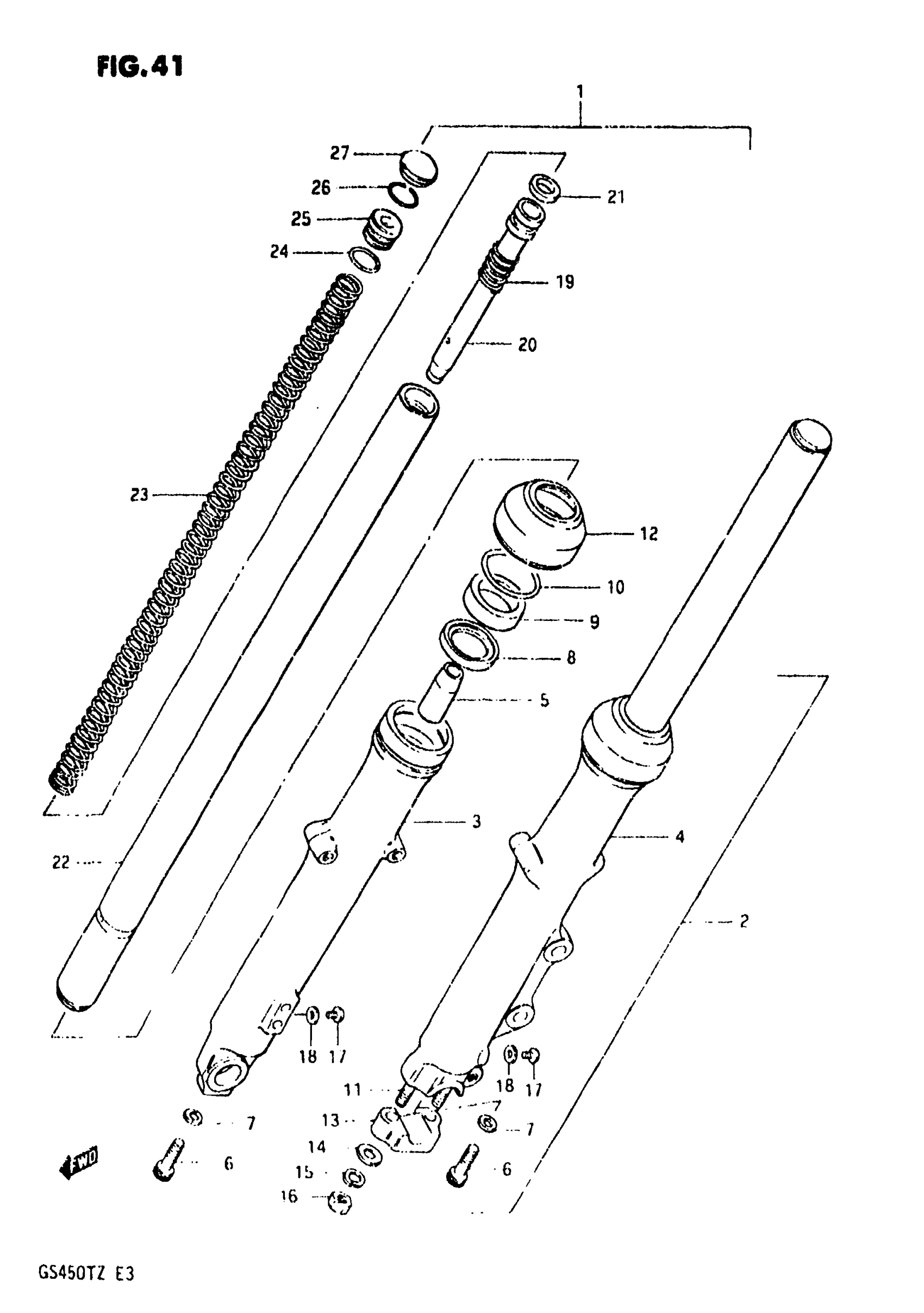

Suzuki GS450T (1982) FRONT FORK (GS450TXZ) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-44301

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 27

51104-44301

Unavailable

3

OUTER TUBE RH

51130-44033

Unavailable

4

OUTER TUBE LH

51140-44031

Unavailable

5

.PIECE, OIL LOCK

51195-48000

Unavailable

6

BOLT

51147-48130

$4.34

7

O RING This part replaces 51148-31030.

51148-36011

$3.56

8

SPACER

51168-44030

$5.22

9

OIL SEAL This part replaces 51153-37310.

51153-02B00

$20.06

10

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

11

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

12

DUST SEAL

51571-37310

$20.15

13

HOLDER, AXLE

51132-31030

Unavailable

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

17

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

18

GASKET

51183-33030

Unavailable

19

SPRING

51177-36030

Unavailable

20

CYLINDER

51146-11400

Unavailable

21

RING, PISTON

51196-33130

$8.12

22

INNER TUBE

51110-44170

Unavailable

23

SPRING

51171-44301

Unavailable

24

O RING

51181-33131

$4.68

25

SEAT SPRING

51175-48500

Unavailable

26

RING STOPPER

51169-48500

$3.37

27

CAP This part replaces 51189-44300.

51189-44031

Unavailable
